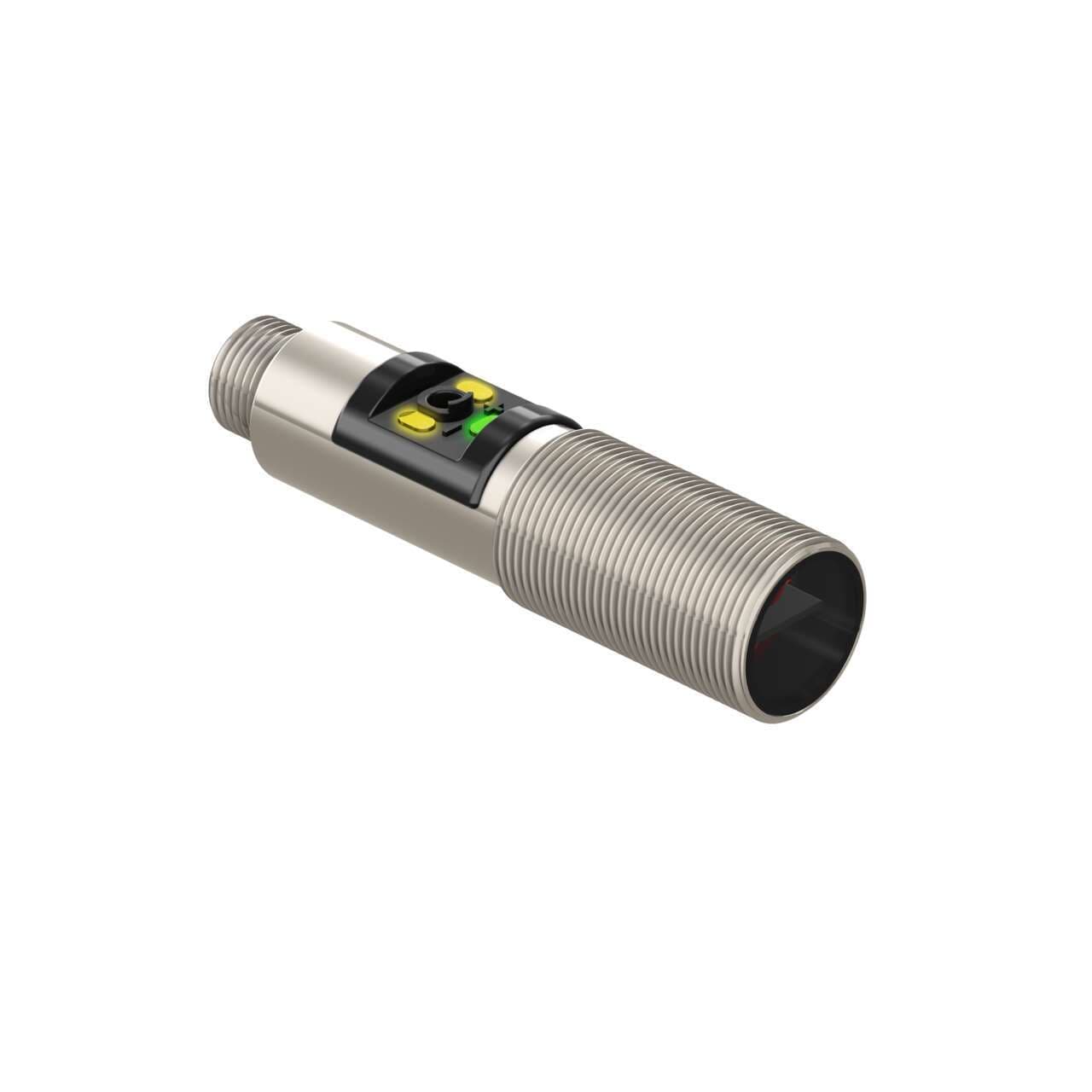

M18-3VPDL-Q8 Banner Proximity Sensors
Part#:M18-3VPDL-Q8
Alt. Part#:88322
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M18-3 Series: Nickel-Plated Brass: Diffuse Reflective; Range: 750 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 52.16308 g
- Country Of Origin CN
- Primary brand Banner Engineering
- Sub-range name M18-3 (nickel-plated brass)
- Thread size M18
- Light Color Visible red
- Design diffuse mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -40...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 624 nm
- Degree of protection IP67 IP69K
- Compliant with standard(s) cULus CE
- Product series / family name M18 barrel series
- Sensing distance 750mm
- Digital outputs 1 x digital output (PNP transistor)
- Response time 1.5ms / 0.0015 s
- Order code / Manufacturer SKU 88322
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Equivalent to M183VPDLQ8
- Shape Cylindrical threaded/barrel
- Material Nickel-plated brass housing Acrylic lns.
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- NEMA Rating N/A
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 100
- Indicator LEDs
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Lens Material Acrylic
- Primary Housing Material Nickel-Plated Brass
- Output response time (ms) 1.5
- IP Rating IP67, IP69
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Operation Light/Dark Operate
- Sensing Beam Wavelength 624
- Barrel Diameter (mm) 18
- DeviceNet No
- Outputs PNP
- Number of Pins 4
- Feature: Washdown Rated Yes
- IO Link No
- Max Sensing Distance (mm) 750
- Connection Integral QD
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-3VPDL-Q8 on Powermatic Associates is $77.00. Order now.
About the product
Banner Engineering M18-3VPDL-Q8 is a photo-electric sensor from the M18-3 (Nickel-plated brass) series, designed with a diffuse mode potentiometer adjustment. It features a visible red light with a wavelength of 624 nm and is housed in a nickel-plated brass with an acrylic lens. This sensor is shaped in an M18 cylindrical threaded/barrel form and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The M18-3VPDL-Q8 can function within an ambient air temperature range of -40 to +70 degrees Celsius and offers a degree of protection rated at IP67 and IP69K. It supports both Light-ON and Dark-ON operating modes, has a thread size of M18, and offers a sensing distance of up to 750mm. Additionally, it includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s.
