M186E W/30 Banner Retroreflective Sensors

M186E W/30 on Powermatic Associates
Banner

Part#:M186E W/30

Alt. Part#:50465

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM M18 Series: Emitter; Range: 20 m; Input: 10-30 V dc; Output: Not Applicable; 9 m (30 ft) Cable

Product Details

  • Weight
    607.81328 g
  • Country Of Origin
    MX
  • Lens Material
    Polycarbonate
  • Feature: Chemical Resistant
    Yes
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • IP Rating
    IP69
  • Opposed Mode Emitter/Receiver
    Emitter
  • Outputs
    N/A
  • Special Feature: Intrinsically Safe
    No
  • Adjustments
    N/A
  • Feature: Health/ Marginal Signal Output
    Yes
  • Max Sensing Distance (mm)
    20000
  • Max Op. Temp. (°C)
    70
  • Special Feature: Remote Teach
    No
  • Feature: Timing (Hold/Delay)
    No
  • Cable Length (m)
    9
  • Delay at Power-up (ms)
    100
  • Feature: Hazardous Area
    No
  • Housing Style
    Barrel
  • Connection
    Cable
  • Number of Pins
    2
  • Feature: Encapsulated
    Yes
  • Sensing Mode (General)
    Opposed
  • Min Op. Temp. (°C)
    -40
  • NEMA Rating
    NEMA 6P
  • Indicator
    LEDs
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    No QD
  • Repeatability (µs)
    375
  • Feature: Washdown Rated
    Yes
  • IO Link
    No
  • Sensing Mode (Detailed)
    Emitter
  • Operation
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Audible
    No
  • Primary Housing Material
    Stainless Steel
  • Output response time (ms)
    N/A
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    18
  • DeviceNet
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M186E W/30 on Powermatic Associates is $107.00. Order now.

About the product

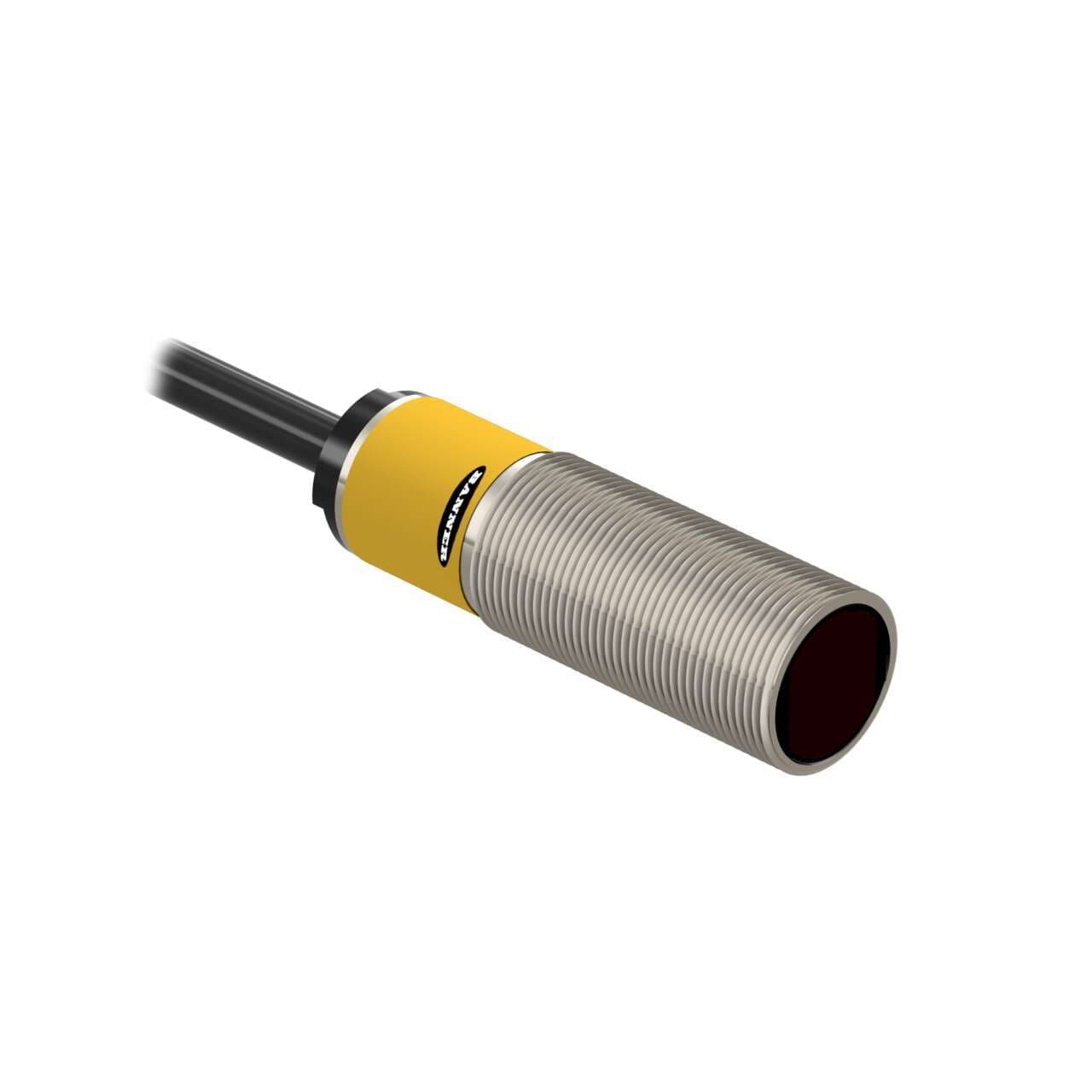

Banner Engineering M186E W/30 is a photo-electric sensor designed for through-beam system applications, part of the M18 series. This sensor functions as an emitter alone, utilizing infrared (IR) light. It features an M18 cylindrical threaded/barrel shape with a stainless steel housing and a polycarbonate lens. The sensor is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The M186E W/30 can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius and offers a degree of protection rated at IP69K and NEMA 6P. The thread size is M18, and it has a sensing distance of 20 meters.
