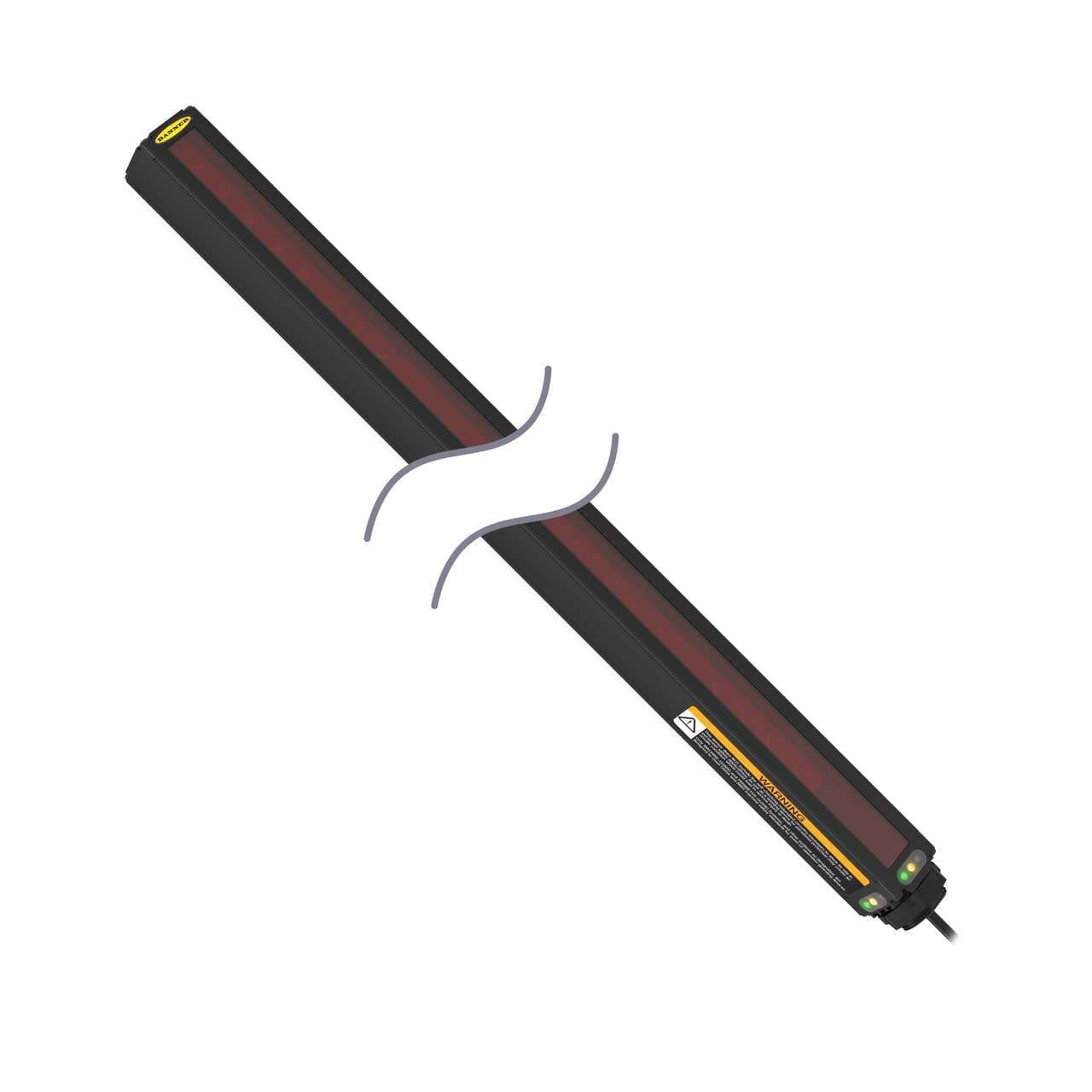

MAHR6A Banner Measurement Sensors
Part#:MAHR6A
Alt. Part#:62662
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
High-Res. MINI-ARRAY Receiver: 163 mm (6.4 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 64; System Range (matching emitter sold separately) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables
Product Details
- Weight 625.95696 g
- Country Of Origin MX
- Sub-range name MINI-ARRAY
- Resolution 2.5mm
- Material Aluminium housing
- Supply voltage (DC) 12Vdc
- Connection type Pre-wired with 6" / 150mm cable terminated with bare end flying leads
- Main function Sensor (Edge)
- Distance 2.5mm beam spacing/pitch
- Ambient air temperature for operation 0...+50 °C
- Detectable object size 2.5mm
- Product series / family name A-GAGE series
- Functions High-resolution measuring light screen array edge/profile receiver green LED (power ON) yellow LED (output state)
- Degree of protection IP65 NEMA 4 NEMA 13
- Compliant with standard(s) cURus CE
- Primary brand Banner Engineering
- Sensing distance 38cm...1.8m
- Dimensions 975mm array length
- Order code / Manufacturer SKU 62662
- Modbus RTU No
- Discrete Output N/A
- DeviceNet No
- Emitter/Receiver Range (m) 0.38 - 1.8
- Device Type Three-Piece
- Housing Length (mm) 236
- RS-485 No
- Max Relative Humidity 95%
- RS-232 No
- Array Length (mm) 163
- Sensing Mode (Detailed) Receiver
- Number of Beams 64
- Beam Spacing 2.5 mm
- Minimum Object Sensitivity (mm) 2.5
- IO Link No
- Power Supply 12V dc
- Primary Housing Material Aluminum
- Max Temp (°C) 50
- Power DC
- Analog Output N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHR6A on Powermatic Associates is $1,166.00. Order now.
About the product
Banner Engineering MAHR6A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array edge/profile sensor designed for precise detection with a 975mm array length. This sensor features a rectangular shape with an aluminium housing and operates on a 12Vdc supply voltage. It is equipped with a pre-wired 6" / 150mm cable that terminates with bare end flying leads for connectivity. The MAHR6A offers a 2.5mm beam spacing/pitch, ensuring accurate sensing with a resolution and detectable object size of 2.5mm. It has a sensing distance range from 38cm to 1.8m and includes 1 x digital output (PNP/NPN transistor; 30Vdc max.; 150mA max.) for signal processing. This sensor operates within an ambient air temperature range of 0 to +50°C and is protected by an IP65, NEMA 4, and NEMA 13 rated enclosure, making it suitable for various industrial applications.
