MAQDC-830RA Banner Cordsets
Product Details
- Weight 508.02304 g
- Country Of Origin US
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Outside Cable Diameter (mm) 5.6
- Voltage Rating (V) 75 V ac/dc
- Feature: Hazardous Area No
- Cordset Length (m) 10
- Current Rating (A) 2.0
- Secondary Connector Type Flying Leads
- Cable Jacket Material PVC
- Shield Type Open
- Primary Orientation Right Angle
- Number of Contacts 8
- Primary Connector Type EURO
- Shield/No Shield Shield
- IP Rating IP67
- Primary AWG 24
- Maximum Temp. (°C) 105
- Oil/Grease Resistant No
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Number of Connectors 1
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAQDC-830RA on Powermatic Associates is $108.00. Order now.
About the product

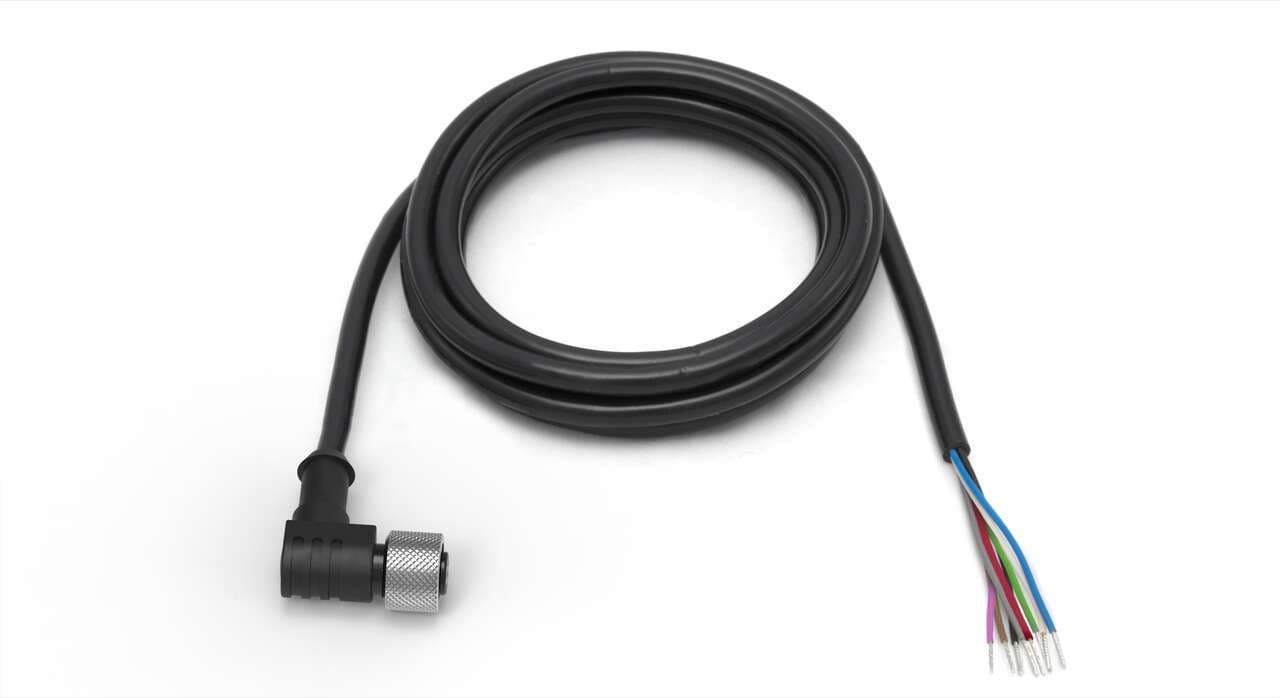

Banner Engineering MAQDC-830RA is a pre-assembled cable/cordset designed with a single-ended configuration. It features black sheathing made of PVC material and measures 30ft (9.14m) in length. This cable is equipped with an 8-pin Euro-style M12 female angled connector and bare end flying leads. It has a rated voltage of 75Vdc and a cable diameter of 5.6mm. The MAQDC-830RA is capable of operating in ambient air temperatures ranging from -40 to +105°C and offers a degree of protection rated at IP67.
Similar products from: Banner Cordsets
Manufacturer warranty
MAQDC-830RA Banner
$108.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$108.00
$108.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MAQDC-830RA with other Cordsets products
Weight
Country Of Origin
Trunk Length (m)
Primary Coupling Method
Outside Cable Diameter (m...
Voltage Rating (V)
Feature: Hazardous Area
Cordset Length (m)
Current Rating (A)
Secondary Connector Type
Selected product
MAQDC-830RA
Banner
Cordset: Single Ended M12; 8-pin Right-Angle Female; 10 m 8x24 Shielded Black PVC Jacket; Nickel-Pla...
Weight508.02304 g
Country Of OriginUS
Trunk Length (m)No Trunk
Primary Coupling MethodM12 Single Key
Outside Cable Diameter (mm)5.6
Voltage Rating (V)75 V ac/dc
Feature: Hazardous AreaNo
Cordset Length (m)10
Current Rating (A)2.0
Secondary Connector TypeFlying Leads
MQDC2S-815
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 5.04 m 8x24 Shielded Black PVC Jacket; Nickel-Plat...
Weight256.0073248 g
Country Of OriginUS
Trunk Length (m)No Trunk
Primary Coupling Method-
Outside Cable Diameter (mm)5.6
Voltage Rating (V)-
Feature: Hazardous Area-
Cordset Length (m)4.57
Current Rating (A)-
Secondary Connector Type-
MQDC1-515RA
Banner
Cordset: Single Ended M12; 5-pin Right-Angle Female; 5 m (16.4 ft) 5x22 Black PVC Jacket; Nickel-Pla...
Weight263.08336 g
Country Of OriginUS
Trunk Length (m)No Trunk
Primary Coupling Method-
Outside Cable Diameter (mm)5.6
Voltage Rating (V)-
Feature: Hazardous Area-
Cordset Length (m)4.57
Current Rating (A)-
Secondary Connector Type-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MAQDC-830RA?
Purchase the MAQDC-830RA from Powermatic Associates at the price of $108.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M12; 8-pin Right-Angle Female; 10 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
