MBCCL-530 Banner Cordsets

Name: MBCCL-530
Brand: Banner
Price: 167 USD
Availability: BackOrder

Part#:MBCCL-530

Alt. Part#:808527

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

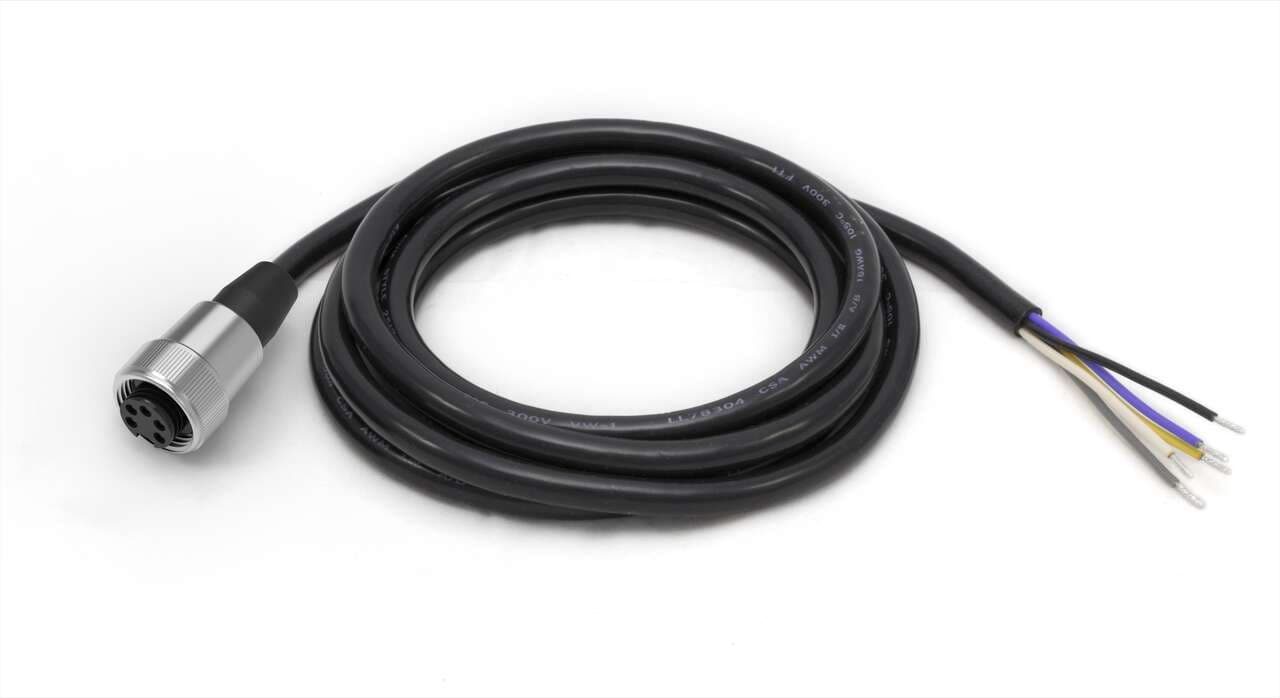

Cordset: Single Ended 7/8 in; 5-pin Straight Female; 9 m (29.53 ft) 5x18 Black PVC Jacket; TPV Black; Nickel-Plated Brass Coupling Nut

Product Details

Weight
1632.9312 g
Country Of Origin
TW
Number of Contacts
5
Current Rating (A)
9.0
Oil/Grease Resistant
No
Outside Cable Diameter (mm)
11.6
IP Rating
IP67
Secondary Connector Type
Flying Leads
Cable Jacket Color
Black
Minimum Temp. (°C)
-40
Secondary Number of Conductors
5
Trunk Length (m)
No Trunk
Voltage Rating (V)
300 V ac/dc
Cordset Length (m)
9
Primary Number of Conductors
5
Maximum Temp. (°C)
105
Primary Coupling Method
7/8"-16
Cable Jacket Material
PVC
Primary Orientation
Straight
Feature: Hazardous Area
No

Connector Body Material/Color

PUR Black

Primary Connector Type

MINI

Coupling Material/Color

Nickel Plated Brass

Primary Gender

Female

Number of Connectors

Primary AWG

Secondary AWG

Shield/No Shield

No Shield

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MBCCL-530 on Powermatic Associates is $167.00. Order now.

About the product

Mini-style Quick Disconnect Cable, 5 Pin Female Pin-out Straight Connector, 9 m (30 ft) in Length, Lighting Cable and Pin-out, Nickel Plated Brass Coupling Nut
