MQDC-4506SS Banner Cordsets
Product Details
- Weight 104.6890336 g
- Country Of Origin TW
- Cordset Length (m) 1.83
- Primary Coupling Method M12 Single Key
- Secondary Coupling Method M12 Single Key
- Shield/No Shield No Shield
- Primary Orientation Straight
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 5.9
- Primary Connector Type EURO
- Secondary Connector Type EURO
- Number of Contacts 5
- Maximum Temp. (°C) 105
- Secondary Orientation Straight
- Voltage Rating (V) 250 V ac/dc
- Primary Number of Conductors 5
- Cable Jacket Material PVC
- Current Rating (A) 4.0
- Secondary AWG 22
- Trunk Length (m) No Trunk
- IP Rating IP67
- Secondary Number of Conductors 5
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nickel Plated Brass
- Secondary Gender Male
- Number of Connectors 2
- Primary Gender Female
- Feature: Hazardous Area No
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Primary AWG 22
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-4506SS on Powermatic Associates is $39.00. Order now.
About the product

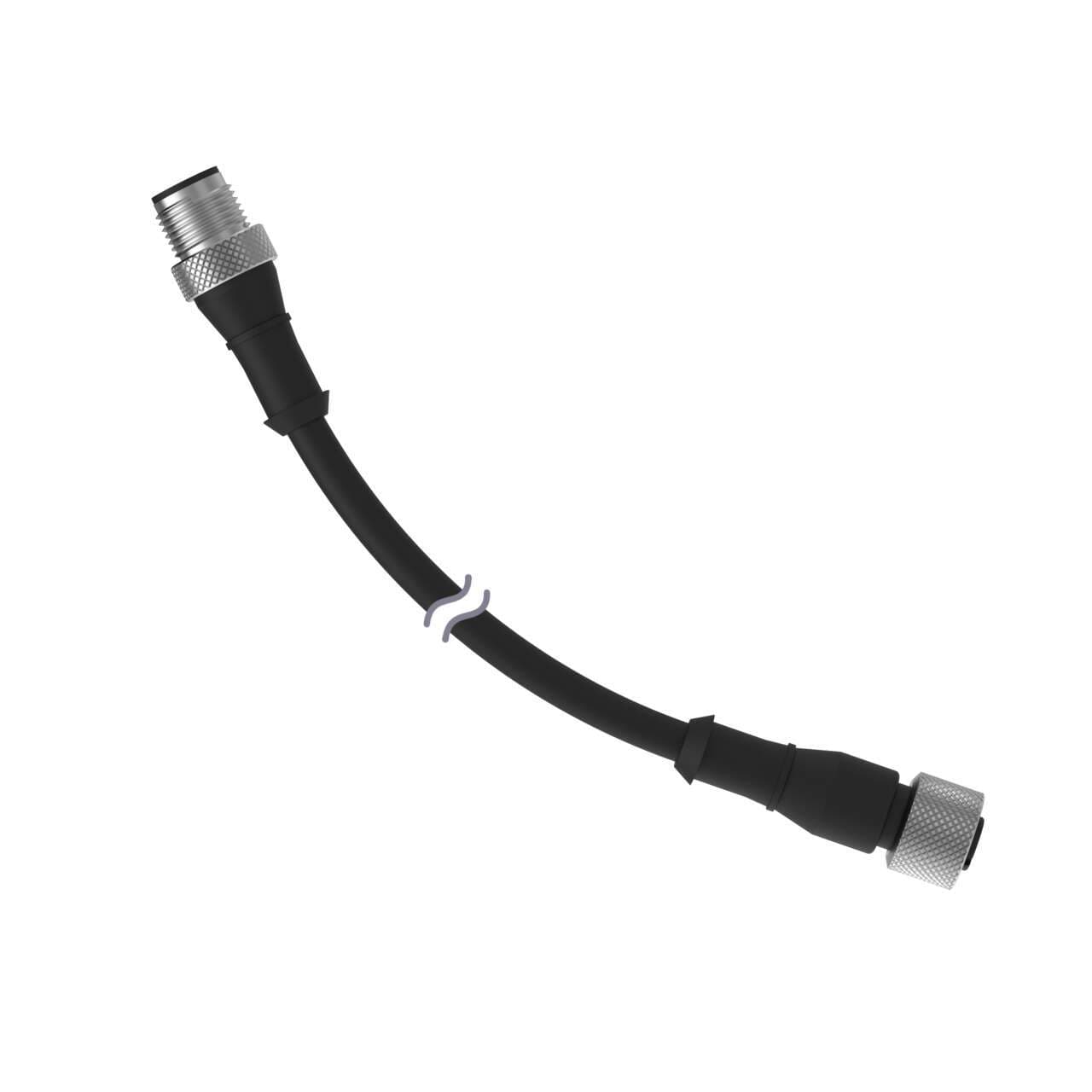

Banner Engineering MQDC-4506SS is a pre-assembled cable/cordset designed for various applications requiring a durable connection. It features a double-ended design with a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable has a diameter of 5.9mm and is encased in black sheathing made from PVC, ensuring flexibility and protection. The connectors are made from nickel-plated brass, providing a secure connection with a coupling nut. This model is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for environments where dust and water resistance are necessary. The cable has a length of 6 feet (1.83 meters) and is rated for a voltage of 250Vac, accommodating a variety of industrial applications.
Similar products from: Banner Cordsets
Manufacturer warranty
MQDC-4506SS Banner
$39.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$39.00
$39.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDC-4506SS with other Cordsets products
Weight
Country Of Origin
Cordset Length (m)
Primary Coupling Method
Secondary Coupling Method
Shield/No Shield
Primary Orientation
Oil/Grease Resistant
Outside Cable Diameter (m...
Primary Connector Type
Selected product
MQDC-4506SS
Banner
Cordset: Double Ended M12 with Cross-Wiring; 4-pin Straight Female; 5-pin Straight Male; 1.83 m 4x22...
Weight104.6890336 g
Country Of OriginTW
Cordset Length (m)1.83
Primary Coupling MethodM12 Single Key
Secondary Coupling MethodM12 Single Key
Shield/No ShieldNo Shield
Primary OrientationStraight
Oil/Grease ResistantNo
Outside Cable Diameter (mm)5.9
Primary Connector TypeEURO
LQMAEC-306SS
Banner
Cordset: Double Ended Molex; 3-pin Straight Female; 4-pin Straight Female; 1.83 m 3x18 Black PVC Jac...
Weight136.0776 g
Country Of OriginTW
Cordset Length (m)1.83
Primary Coupling Method-
Secondary Coupling Method-
Shield/No ShieldNo Shield
Primary Orientation-
Oil/Grease Resistant-
Outside Cable Diameter (mm)6.8
Primary Connector Type-
MQDEC-401SS-PUR
Banner
Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 0.3 m 4x22 Black PUR Jacket; ...
Weight45.3592 g
Country Of OriginUS
Cordset Length (m)0.3
Primary Coupling Method-
Secondary Coupling Method-
Shield/No ShieldNo Shield
Primary Orientation-
Oil/Grease Resistant-
Outside Cable Diameter (mm)4.1
Primary Connector Type-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDC-4506SS?
Purchase the MQDC-4506SS from Powermatic Associates at the price of $39.00. Order today.
Out if stock but available for backorder.
Cordset: Double Ended M12 with Cross-Wiring; 4-pin Straight Female; 5-pin Straight Male; 1.83 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts
