MQDC-450RA Banner Cordsets

Name: MQDC-450RA
Brand: Banner
Price: 56 USD
Availability: BackOrder

Part#:MQDC-450RA

Alt. Part#:49213

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

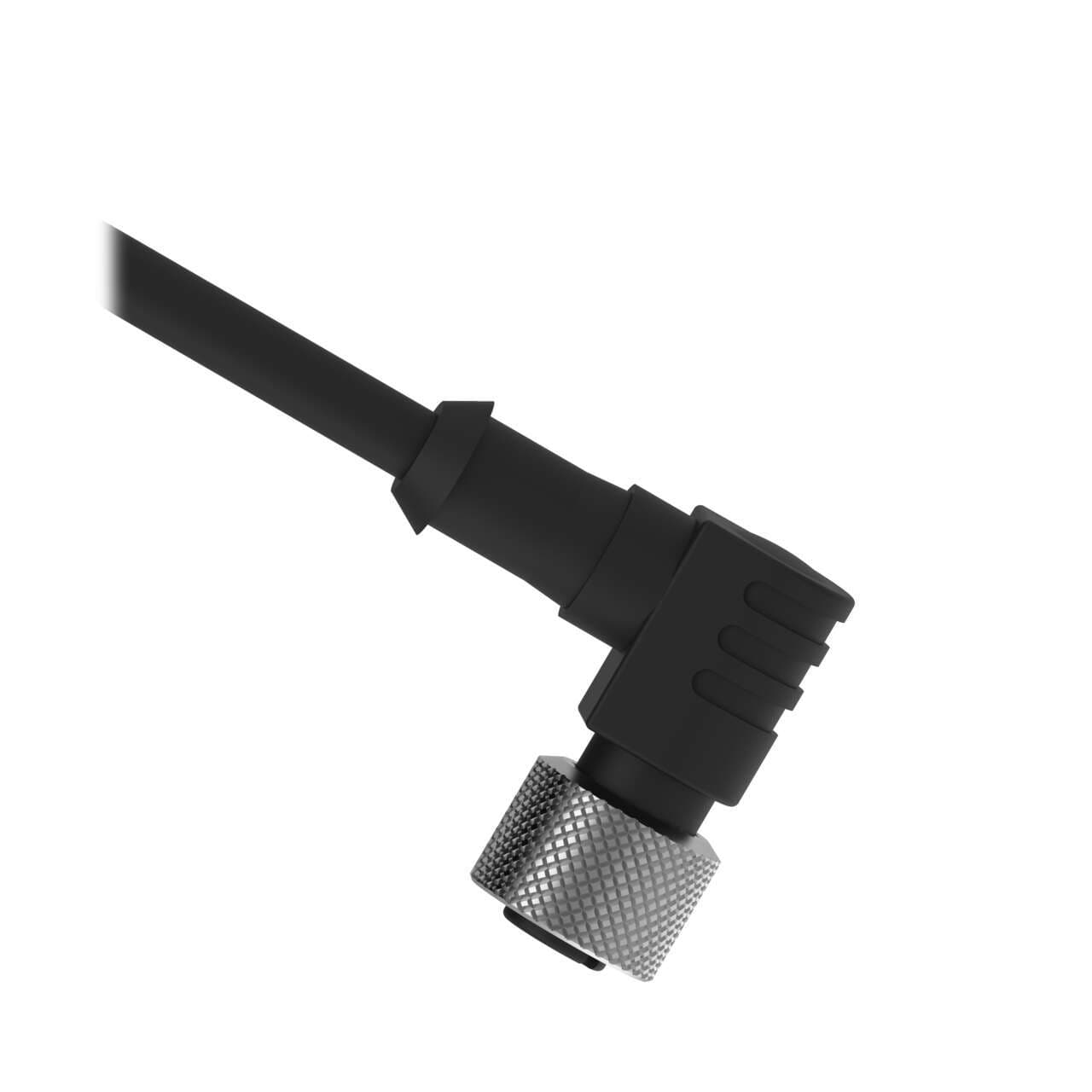

Cordset: Single Ended M12; 4-pin Right-Angle Female; 15 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Product Details

Weight
598.74144 g
Country Of Origin
TW
Trunk Length (m)
No Trunk
Minimum Temp. (°C)
-40
Secondary Connector Type
Flying Leads
Connector Body Material/Color
PUR Black
Cable Jacket Color
Black
Feature: Hazardous Area
No
Coupling Material/Color
Nickel Plated Brass
Primary Orientation
Right Angle
Number of Connectors
1
IP Rating
IP67
Cordset Length (m)
15.2
Maximum Temp. (°C)
105
Voltage Rating (V)
250 V ac/dc
Cable Jacket Material
PVC
Primary Connector Type
EURO
Primary AWG
22
Number of Contacts
4
Current Rating (A)
4.0

Primary Number of Conductors

Outside Cable Diameter (mm)

5.2

Primary Gender

Female

Shield/No Shield

No Shield

Primary Coupling Method

M12 Single Key

Oil/Grease Resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-450RA on Powermatic Associates is $56.00. Order now.

About the product

Banner Engineering MQDC-450RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 4-pin Euro-style M12 female angled connector with bare end flying leads. The cable is equipped with a nickel-plated brass coupling nut and is protected by black sheathing. It is designed to operate in ambient air temperatures ranging from -40 to +105 degrees Celsius. With a length of 50ft (15m) and a rated voltage of 250Vac, this cable is IP67 rated, indicating its protection against dust and temporary immersion in water.
