MQDC-460RA Banner Cordsets
Product Details
- Weight 453.592 g
- Country Of Origin US
- Outside Cable Diameter (mm) 5.2
- Number of Contacts 4
- Minimum Temp. (°C) -40
- Connector Body Material/Color PUR Black
- Current Rating (A) 4.0
- Secondary Connector Type Flying Leads
- Cable Jacket Color Black
- Voltage Rating (V) 250 V ac/dc
- Shield/No Shield No Shield
- IP Rating IP67
- Feature: Hazardous Area No
- Number of Connectors 1
- Primary Orientation Right Angle
- Primary Connector Type EURO
- Cable Jacket Material PVC
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Cordset Length (m) 18.3
- Coupling Material/Color Nickel Plated Brass
- Primary AWG 22
- Oil/Grease Resistant No
- Primary Gender Female
- Primary Number of Conductors 4
- Maximum Temp. (°C) 105
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-460RA on Powermatic Associates is $64.00. Order now.
About the product

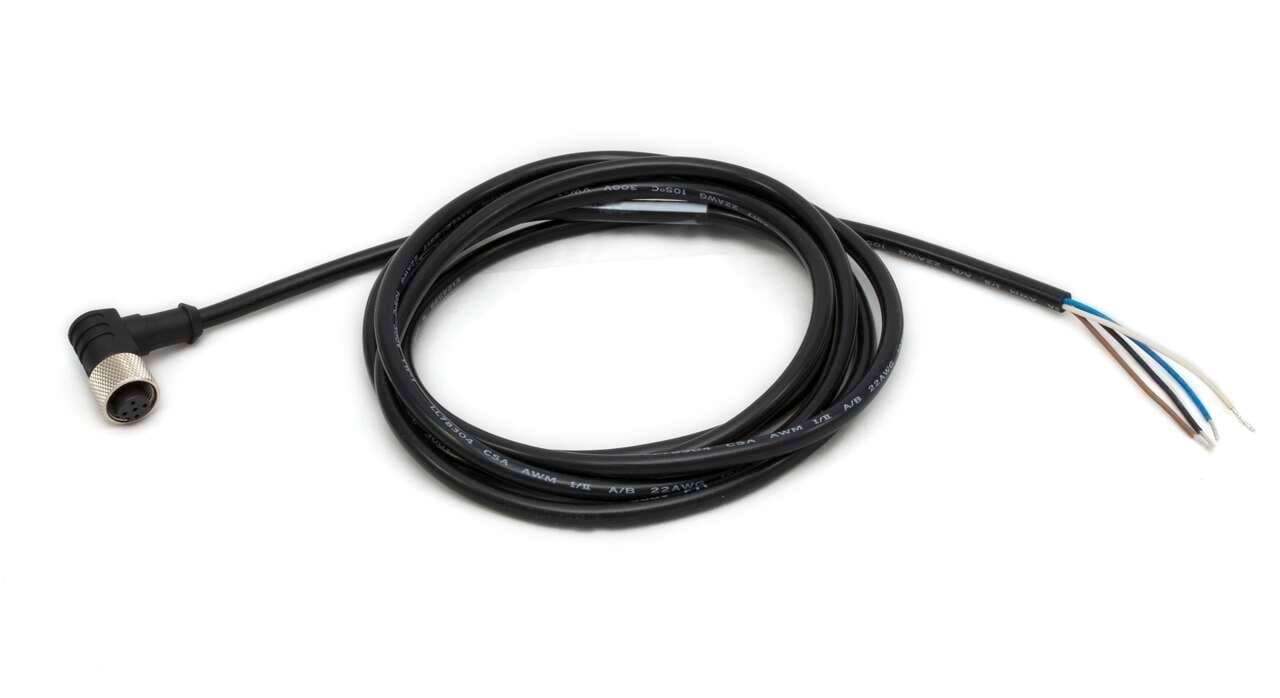

Banner Engineering MQDC-460RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 4-pin Euro-style M12 female angled connector with bare end flying leads. The cable is equipped with a nickel-plated brass coupling nut, ensuring a secure connection. It operates effectively within an ambient air temperature range of -40 to +105°C. This model offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance is required. The black sheathing encases the 60ft (18.3m) length cable, which is rated for 250Vac.
