MQDC-515-GYNRA Banner Cordsets

Name: MQDC-515-GYNRA
Brand: Banner
Price: 49 USD
Availability: BackOrder

Part#:MQDC-515-GYNRA

Alt. Part#:811463

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

Cordset: Single Ended M12; 5-pin Right-Angle Female; 5 m (16.4 ft) 5x22 Black PVC Jacket; PVC Translucent White; Nickel-Plated Brass Coupling Nut

Product Details

Weight
213.18824 g
Country Of Origin
US
Primary Number of Conductors
5
Primary AWG
22
Oil/Grease Resistant
No
Secondary Connector Type
Flying Leads
Feature: Hazardous Area
No
Primary Connector Type
EURO
Primary Gender
Female
Primary Orientation
Right Angle
Primary Coupling Method
M12 Single Key
Maximum Temp. (°C)
70
Minimum Temp. (°C)
-40
Coupling Material/Color
Nickel Plated Brass
Shield/No Shield
No Shield
Trunk Length (m)
No Trunk
Cordset Length (m)
5
Number of Connectors
1
Outside Cable Diameter (mm)
5.2
Cable Jacket Material
PVC

Connector Body Material/Color

PVC Translucent White

Cable Jacket Color

Black

Number of Contacts

Indication

Yes

Output

NPN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-515-GYNRA on Powermatic Associates is $49.00. Order now.

About the product

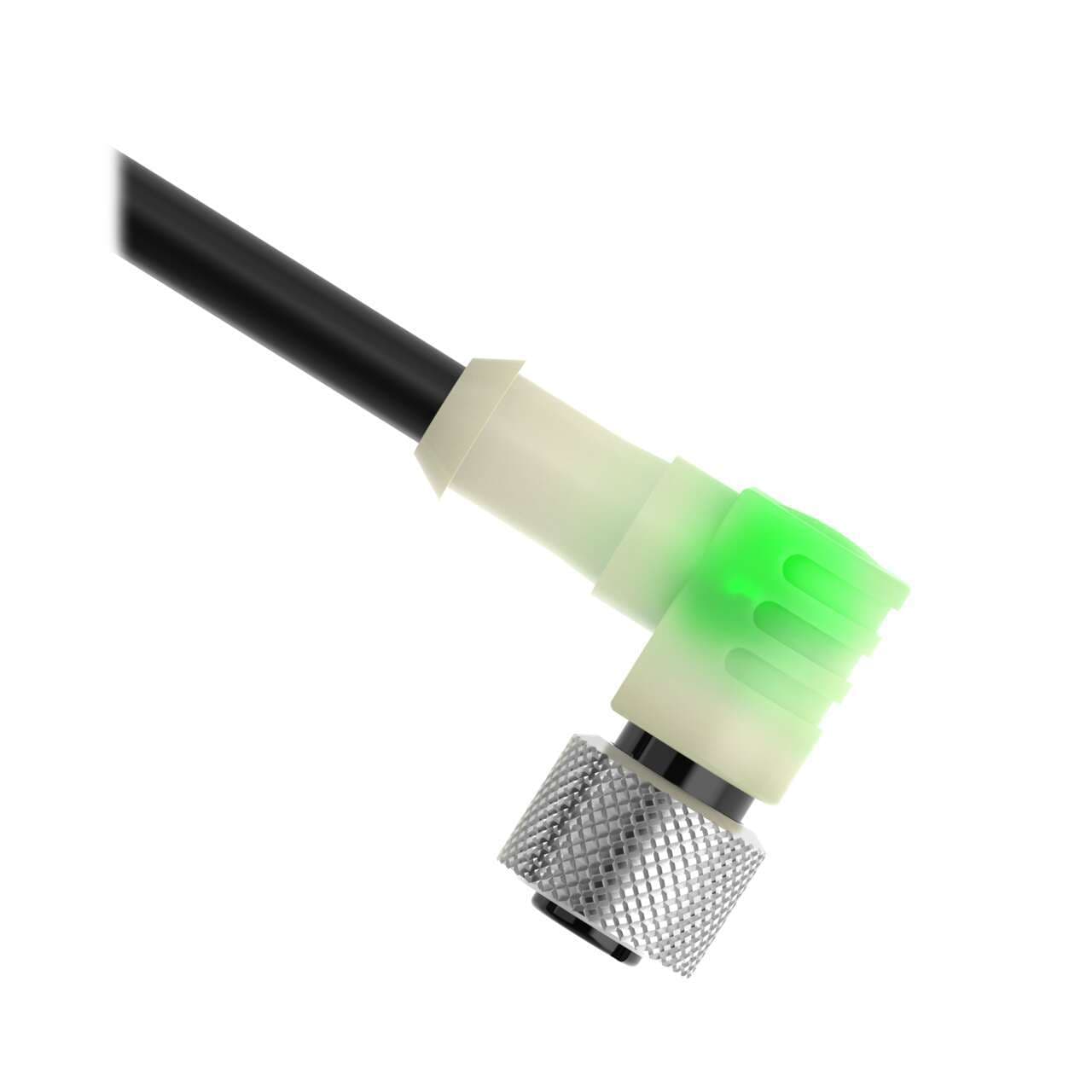

Banner Engineering MQDC-515-GYNRA is a lighted pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 5-pin Euro-style M12 female angled connector with bare end flying leads. The cable is equipped with a nickel-plated brass coupling nut and is protected by black sheathing. It offers a degree of protection rated at IP66, IP67, and IP68, making it suitable for challenging environments. The MQDC-515-GYNRA can operate within an ambient air temperature range of -40 to +70 degrees Celsius and has a length of 16.4 feet (5 meters).
