MQDC-515 Banner Cordsets
Product Details
- Weight 242.218128 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary AWG 22
- Primary Gender Female
- Secondary Connector Type Flying Leads
- Primary Number of Conductors 5
- Primary Orientation Straight
- Primary Coupling Method 1/2"-20 Dual Key
- Primary Connector Type MICRO
- IP Rating IP67
- Voltage Rating (V) 250 V ac/dc
- Current Rating (A) 4.0
- Coupling Material/Color Nickel Plated Brass
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 105
- Shield/No Shield No Shield
- Cable Jacket Material PVC
- Cable Jacket Color Black
- Connector Body Material/Color PUR Black
- Number of Connectors 1
- Number of Contacts 5
- Trunk Length (m) No Trunk
- Cordset Length (m) 5
- Outside Cable Diameter (mm) 5.6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-515 on Powermatic Associates is $60.00. Order now.
About the product

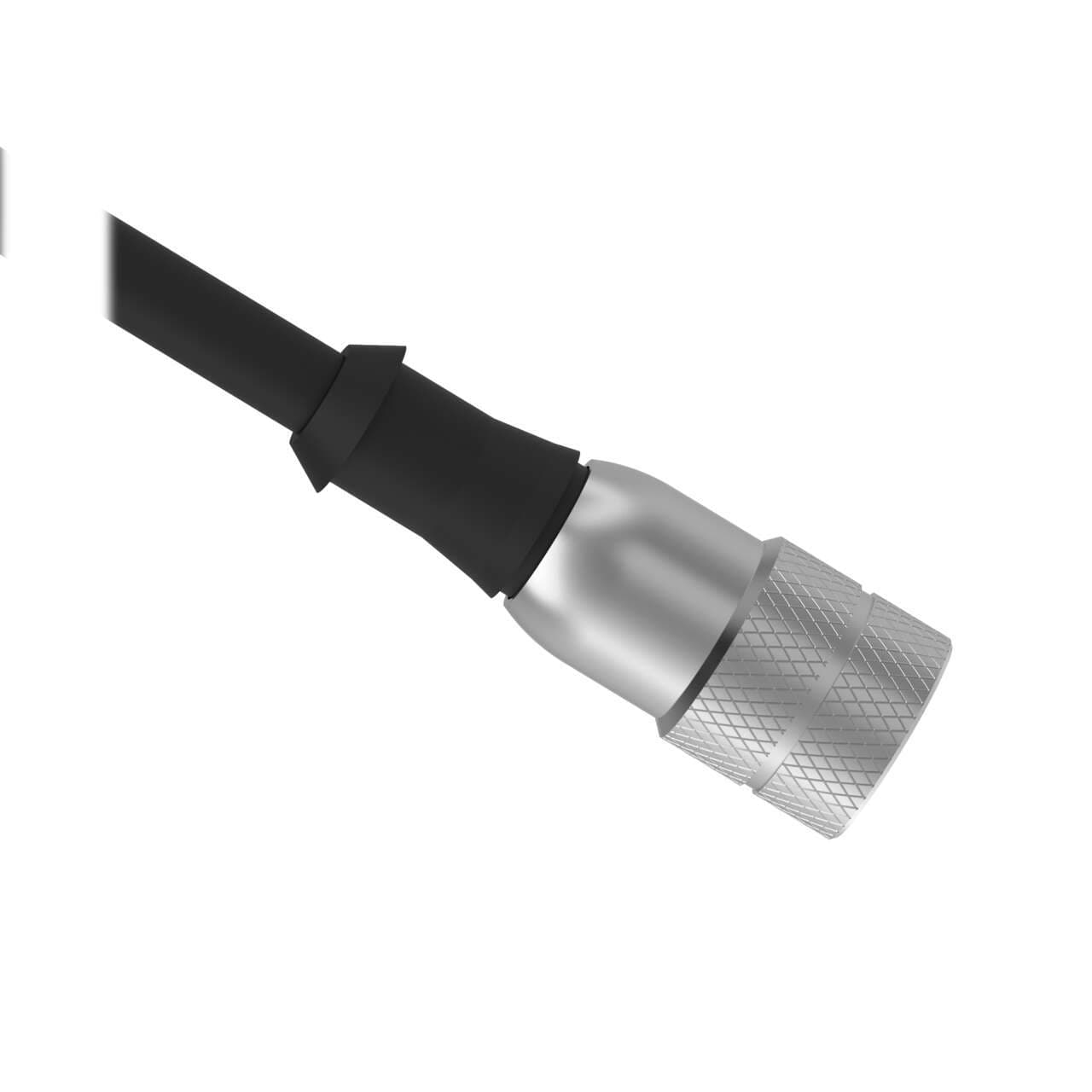

Banner Engineering MQDC-515 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and is equipped with a 5-pin 1/2"-20 micro female connector and bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, ensuring its suitability for environments where dust and water resistance are necessary. The black sheathing encompasses the cable, which has a length of 15ft (5m) and is rated for 250Vac.
