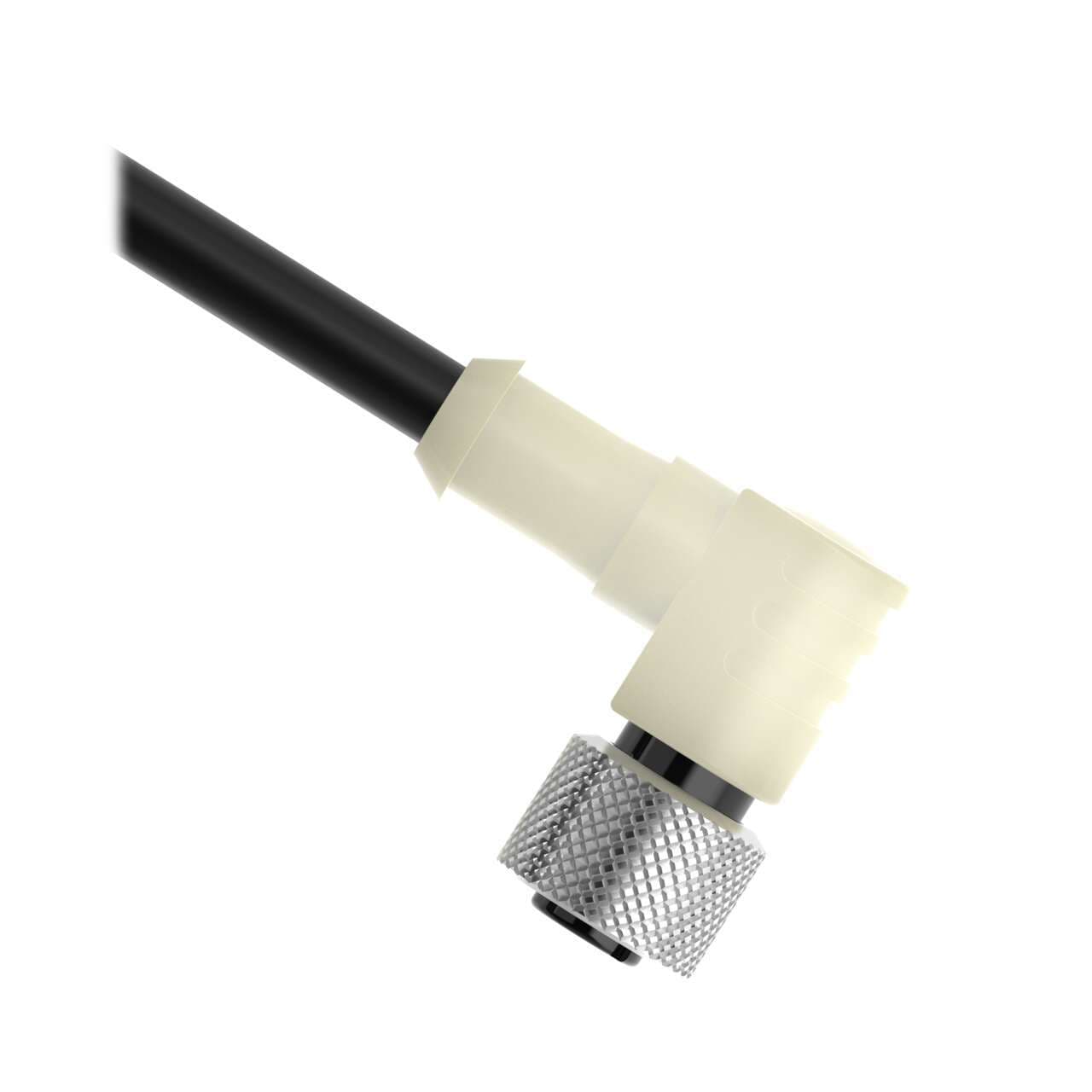

MQDC-530-GYNRA Banner Cordsets

Name: MQDC-530-GYNRA
Brand: Banner
Price: 68 USD
Availability: BackOrder

Part#:MQDC-530-GYNRA

Alt. Part#:811464

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

Cordset: Single Ended M12; 5-pin Right-Angle Female; 9 m (29.53 ft) 5x22 Black PVC Jacket; PVC Translucent White; Nickel-Plated Brass Coupling Nut

Product Details

Weight
453.592 g
Country Of Origin
TW
Oil/Grease Resistant
No
Feature: Hazardous Area
No
Secondary Connector Type
Flying Leads
Primary AWG
22
Primary Number of Conductors
5
Primary Gender
Female
Primary Orientation
Right Angle
Primary Connector Type
EURO
Primary Coupling Method
M12 Single Key
Minimum Temp. (°C)
-40
Coupling Material/Color
Nickel Plated Brass
Maximum Temp. (°C)
70
Shield/No Shield
No Shield
Connector Body Material/Color
PVC Translucent White
Trunk Length (m)
No Trunk
Outside Cable Diameter (mm)
5.2
Cable Jacket Material
PVC
Cordset Length (m)
10

Number of Contacts

Number of Connectors

Cable Jacket Color

Black

Output

NPN

Indication

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-530-GYNRA on Powermatic Associates is $68.00. Order now.

About the product

Banner Engineering MQDC-530-GYNRA is a lighted pre-assembled cable/cordset designed for various applications. It features a single-ended design with a 5.2mm diameter PVC cable and a length of 32.8ft (10m). The cable is equipped with a 5-pin Euro-style M12 female angled connector and bare end flying leads for connectivity. It operates within an ambient air temperature range of -40 to +70°C. The MQDC-530-GYNRA offers a degree of protection rated at IP66, IP67, and IP68, ensuring its durability in diverse environments. The coupling nut is made from nickel-plated brass, and the cable sheathing is black, providing a standard aesthetic for industrial environments.
