MQDC-530-GYPRA Banner Cordsets

Name: MQDC-530-GYPRA
Brand: Banner
Price: 68 USD
Availability: BackOrder

Part#:MQDC-530-GYPRA

Alt. Part#:810422

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

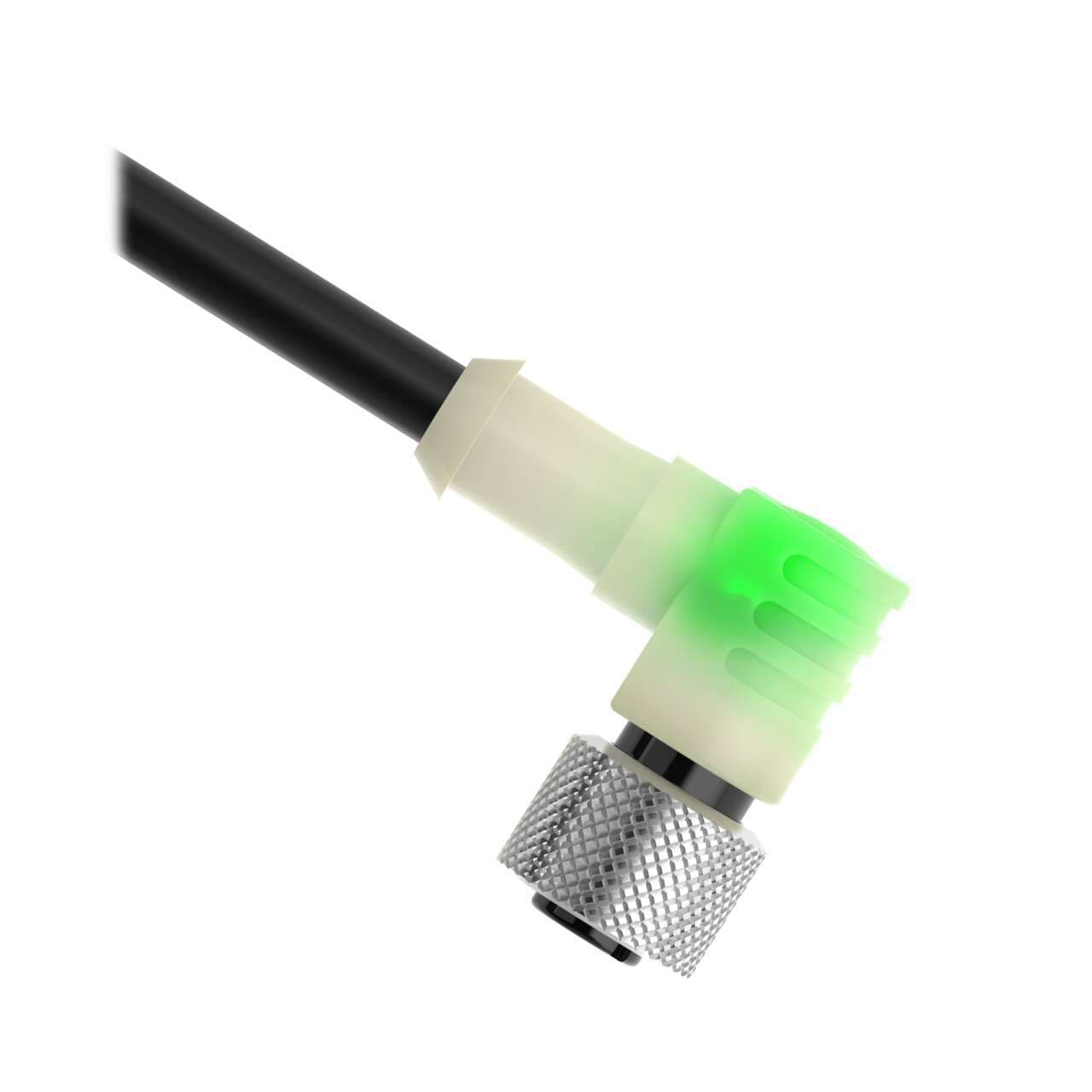

Cordset: Single Ended M12; 5-pin Right-Angle Female; 9 m (29.53 ft) 5x22 Black PVC Jacket; PVC Translucent White; Nickel-Plated Brass Coupling Nut

Product Details

Weight
452.231224 g
Country Of Origin
TW
Primary AWG
22
Feature: Hazardous Area
No
Secondary Connector Type
Flying Leads
Primary Number of Conductors
5
Oil/Grease Resistant
No
Primary Orientation
Right Angle
Primary Connector Type
EURO
Primary Gender
Female
Primary Coupling Method
M12 Single Key
Minimum Temp. (°C)
-40
Coupling Material/Color
Nickel Plated Brass
Maximum Temp. (°C)
70
Shield/No Shield
No Shield
Trunk Length (m)
No Trunk
Indication
Yes
Output
PNP
Outside Cable Diameter (mm)
5.2
Cordset Length (m)
10

Cable Jacket Color

Black

Number of Connectors

Connector Body Material/Color

PVC Translucent White

Cable Jacket Material

PVC

Number of Contacts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-530-GYPRA on Powermatic Associates is $68.00. Order now.

About the product

Banner Engineering MQDC-530-GYPRA is a lighted pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a length of 32.8ft (10m). This part is equipped with a 5-pin Euro-style M12 female angled connector and bare end flying leads for connectivity. The MQDC-530-GYPRA operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP66, IP67, and IP68, ensuring its suitability for challenging environments. The coupling nut is made from nickel-plated brass, and the cable sheathing is black, aligning with standard industrial aesthetics and requirements.
