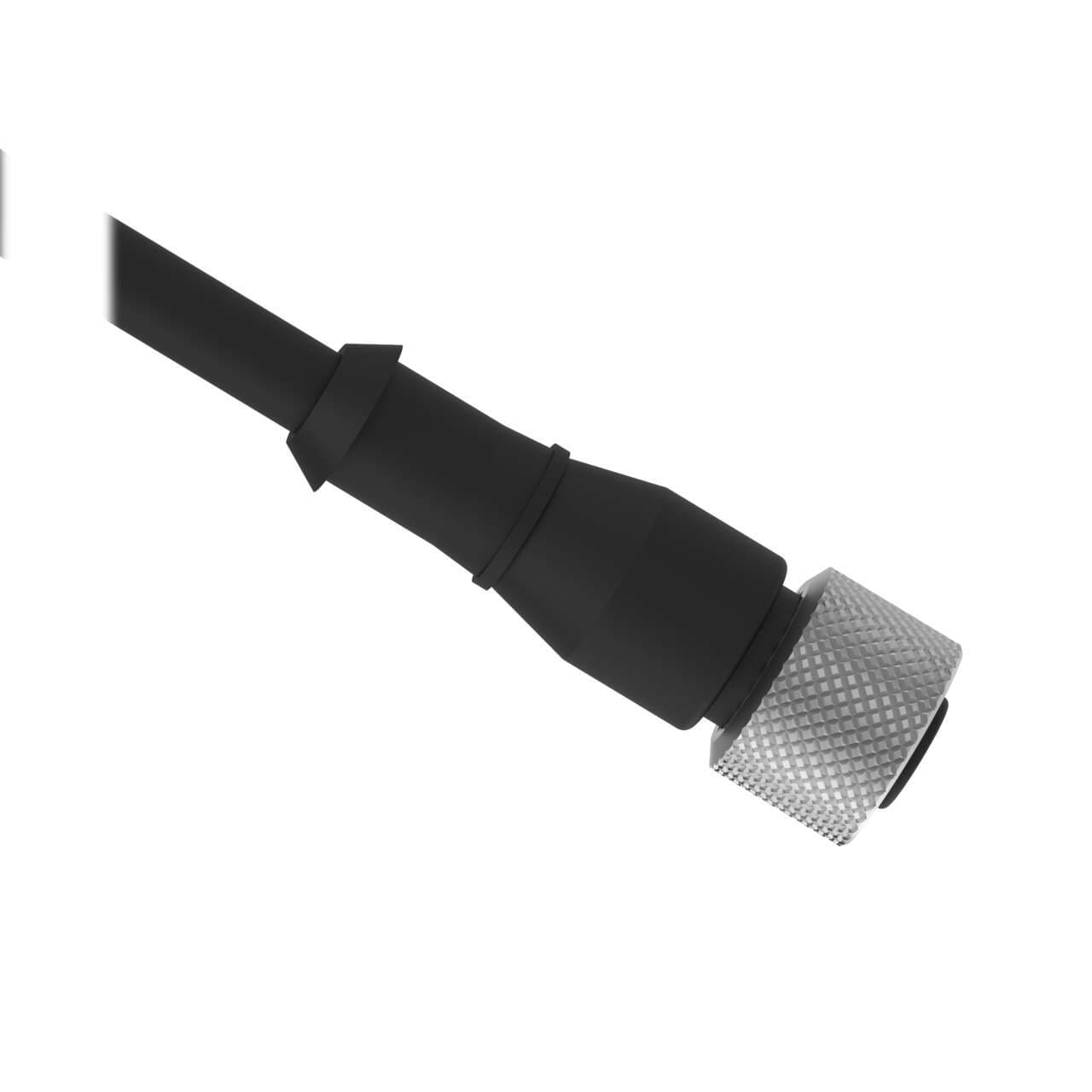

MQDC-630 Banner Cordsets
Product Details
- Weight 408.2328 g
- Country Of Origin TW
- Number of Contacts 6
- Maximum Temp. (°C) 105
- Primary Number of Conductors 6
- Trunk Length (m) No Trunk
- Cable Jacket Color Black
- Primary Gender Female
- Cable Jacket Material PVC
- Primary Connector Type EURO
- Connector Body Material/Color PUR Black
- Primary Coupling Method M12 Single Key
- Current Rating (A) 2.0
- Feature: Hazardous Area No
- Number of Connectors 1
- IP Rating IP67
- Primary Orientation Straight
- Coupling Material/Color Nickel Plated Brass
- Voltage Rating (V) 75 V ac/dc
- Shield/No Shield No Shield
- Cordset Length (m) 9.14
- Primary AWG 24
- Outside Cable Diameter (mm) 5.7
- Minimum Temp. (°C) -40
- Secondary Connector Type Flying Leads
- Oil/Grease Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-630 on Powermatic Associates is $58.00. Order now.
About the product
Banner Engineering MQDC-630 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 6-pin Euro-style M12 female connector and bare end flying leads, facilitating easy and secure connections. The cable has a diameter of 5.7mm and is encased in black sheathing made from PVC, ensuring durability and protection against environmental factors. The chrome-plated brass coupling nut enhances the cable's robustness. With an ambient air temperature operation range of -40 to +105°C, it is suitable for use in a wide range of environmental conditions. The MQDC-630 offers a degree of protection rated at IP67, making it resistant to dust and water ingress. It operates at a rated voltage of 75Vdc and has a length of 30ft (9m), providing ample reach for various installation requirements.
