MQDC-801-5M-PRO Banner Cordsets
Product Details
- Weight 276.69112 g
- Country Of Origin TW
- Shield/No Shield No Shield
- Number of Connectors 2
- Primary Gender Female
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Secondary AWG 22
- Outside Cable Diameter (mm) 5.5
- Primary Connector Type EURO
- Secondary Number of Conductors 5
- Number of Contacts 13
- Minimum Temp. (°C) -40
- Secondary Connector Type EURO
- Cable Jacket Color Black
- Voltage Rating (V) 75 V ac/dc
- Current Rating (A) 2.0
- Secondary Gender Male
- Primary AWG 22
- Connector Body Material/Color PUR Black
- IP Rating IP67
- Feature: Hazardous Area No
- Cable Jacket Material PVC
- Cordset Length (m) .3
- Primary Coupling Method M12 Single Key
- Secondary Orientation Straight
- Trunk Length (m) No Trunk
- Primary Number of Conductors 8
- Secondary Coupling Method M12 Single Key
- Oil/Grease Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-801-5M-PRO on Powermatic Associates is $43.00. Order now.
About the product

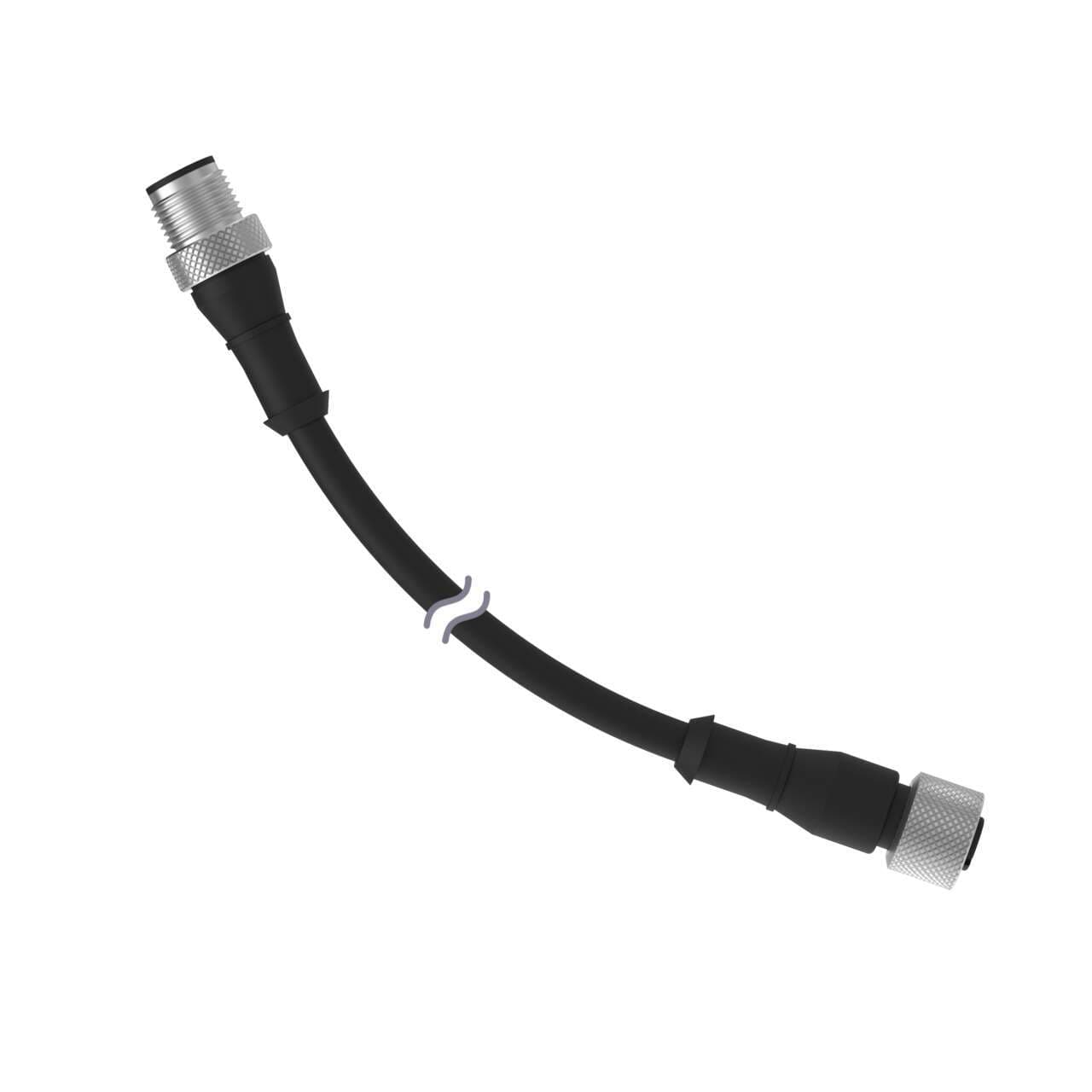

Banner Engineering MQDC-801-5M-PRO is a pre-assembled, double-ended cable designed for automation applications. It features an 8-pin M12 female straight connector on one end and a 5-pin M12 male straight connector on the other. The cable has a diameter of 5.5mm and is constructed with a PVC sheath in black. Nickel-plated brass coupling nuts ensure durable connections. The total length of the cable is 30cm.
Similar products from: Banner Cordsets
Manufacturer warranty
MQDC-801-5M-PRO Banner
$43.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$43.00
$43.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDC-801-5M-PRO with other Cordsets products
Weight
Country Of Origin
Shield/No Shield
Number of Connectors
Primary Gender
Maximum Temp. (°C)
Primary Orientation
Secondary AWG
Outside Cable Diameter (m...
Primary Connector Type
Selected product
MQDC-801-5M-PRO
Banner
Cordset: Double Ended M12; 8-pin Straight Female; 5-pin Straight Male; 0.3 m 4x22 Black PVC Jacket; ...
Weight276.69112 g
Country Of OriginTW
Shield/No ShieldNo Shield
Number of Connectors2
Primary GenderFemale
Maximum Temp. (°C)105
Primary OrientationStraight
Secondary AWG22
Outside Cable Diameter (mm)5.5
Primary Connector TypeEURO
QDE-860D
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Bras...
Weight1088.6208 g
Country Of OriginTW
Shield/No Shield-
Number of Connectors1
Primary Gender-
Maximum Temp. (°C)105
Primary Orientation-
Secondary AWG-
Outside Cable Diameter (mm)6
Primary Connector Type-
LQMAEC-306SS
Banner
Cordset: Double Ended Molex; 3-pin Straight Female; 4-pin Straight Female; 1.83 m 3x18 Black PVC Jac...
Weight136.0776 g
Country Of OriginTW
Shield/No Shield-
Number of Connectors2
Primary Gender-
Maximum Temp. (°C)105
Primary Orientation-
Secondary AWG-
Outside Cable Diameter (mm)6.8
Primary Connector Type-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDC-801-5M-PRO?
Purchase the MQDC-801-5M-PRO from Powermatic Associates at the price of $43.00. Order today.
Out if stock but available for backorder.
Cordset: Double Ended M12; 8-pin Straight Female; 5-pin Straight Male; 0.3 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts
