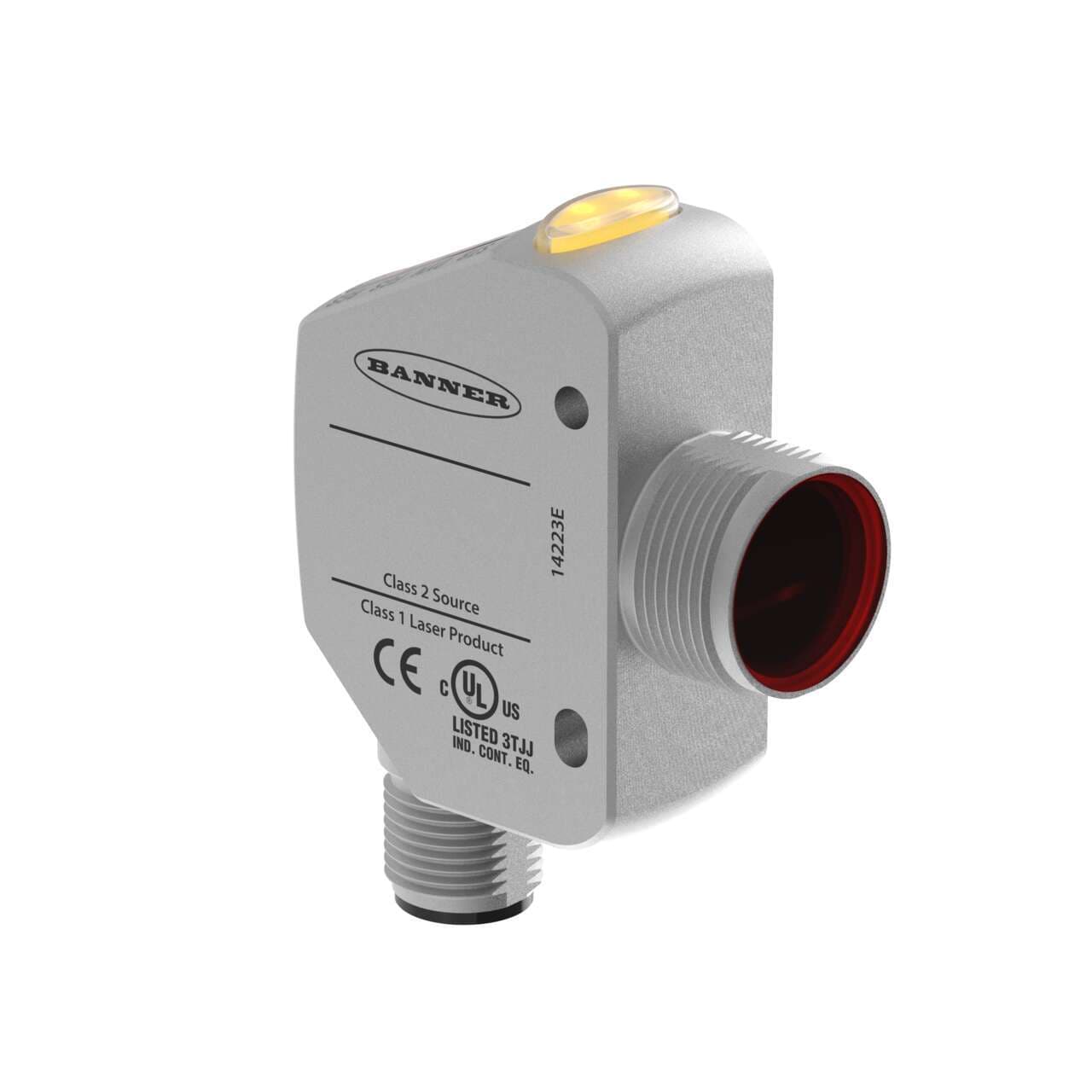

Q4XTBLAF300-Q8 Banner Proximity Sensors

Product Details

• Weight
  158.7572 g
• Country Of Origin
  US
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Chemical resistance
  chemical-resistant
• Main function
  Sensor (Photo-electric)
• Primary brand
  Banner Engineering
• Display
  LED 4 digits display
• Wavelength
  655 nm
• Mounting mode
  Threaded mount
• Ambient air temperature for operation
  -10...+50 °C
• Product series / family name
  Q series
• Design
  background / foreground suppression system
• Shape
  Rectangular
• Degree of protection
  IP67 IP68 IP69K
• Compliant with standard(s)
  CE
• Order code / Manufacturer SKU
  94118
• Sub-range name
  Q4X
• Functions
  Class 1 Laser adjustable-field photo-electric sensor TEACH mode
• Sensing distance
  25...300mm
• Thread size
  M18
Material
Stainless steel housing Acrylic LED window
Equivalent to
Q4XTBLAF300Q8
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Light Color
Visible class 1 red Laser
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Protection functions
Overload Short-circuit
Sensing Mode (General)
Proximity
Quick Disconnect Type
M12 (Euro)
Adjustments
Push Button; Remote Teach
Max Measurement Range
>100 mm - <=500 mm
PC Configurable
No
Power
DC
Input/Output
Discrete
Delay at Power-up (ms)
750
Output Saturation Voltage PNP Outputs
<1.5 V @ 100 mA
Warm-up Time (minutes)
10
Sensing Beam
Visible Red Laser
Connection
Integral QD
Temperature Effect (mm/°C)
+/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Output Protection
Protected against continuous overload and short circuit
Spot Size (@ Reference Distance)
2.0 mm x 0.8 mm @ 300 mm
Feature: Clear Object Detection
Yes
RS-232
No
Device Type
Sensor
Laser Classification
Class 1
Sensing Beam Wavelength (nm)
655
Max Operating Temperature (°C)
50
Barrel Diameter (mm)
18
Feature: Timing (Hold/Delay)
Yes
Wireless
No
Sensing Mode (Detailed)
Background/Foreground Suppression
Analog Resolution/Discrete Repeatability
25 mm to 50 mm: +/-0.5; 50 mm to 300 mm: +/- 1% of range
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
IP Rating
IP67; IP68; IP69
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Alarm Output (mA)
100
RS-422
No
Minimum Window Size (mm)
0.4
Feature: Ecolab Certified
Yes
Profibus
No
Housing Style
Rectangular w/M18 Mount
Minimum Sensing Distance (mm)
25
Max Discrete (Switched) Output (mA)
100
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Power/Current Consumption (exclusive of load)
< 675 mW
PROFINET
No
Primary Housing Material
Stainless Steel
Power Supply
10-30 V dc
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Min Operating Temperature (°C)
-10
Feature: Remote Teach
Yes
Feature: Chemical Resistant
Yes
Indicator
Display; LED(s)
Number of Pins
5
Storage Temperature (°C)
-25 to 75
Max Ambient Light (Lux)
5000
Feature: Washdown Rated
Yes
SSI
No
Max Sensing Distance (mm)
300
Output Saturation Voltage NPN Outputs
<1.0 V @ 100 mA
Minimum Response Time (ms)
1.5
Discrete Output Hysteresis (mm)
Automatically adjusted
1-wire Serial Interface
No
RS-485
No
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Window Material
Acrylic
Laser Control
Yes
IO Link
No
Max Off-state Leakage Current (µA)
5 @ 30 V dc
Common Ethernet Protocol
No
