MQDC-806 Banner Cordsets
Product Details
- Weight 108.86208 g
- Country Of Origin US
- Cable Jacket Color Black
- Primary AWG 24
- Number of Connectors 1
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Cordset Length (m) 1.83
- Primary Coupling Method M12 Single Key
- Feature: Hazardous Area No
- Cable Jacket Material PVC
- Current Rating (A) 2.0
- Secondary Connector Type Flying Leads
- Shield/No Shield Shield
- Primary Connector Type EURO
- Number of Contacts 8
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 7
- Outside Cable Diameter (mm) 5.6
- Voltage Rating (V) 75 V ac/dc
- Connector Body Material/Color PUR Black
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Trunk Length (m) No Trunk
- Primary Gender Female
- Shield Type Pin
- IP Rating IP67
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-806 on Powermatic Associates is $53.00. Order now.
About the product

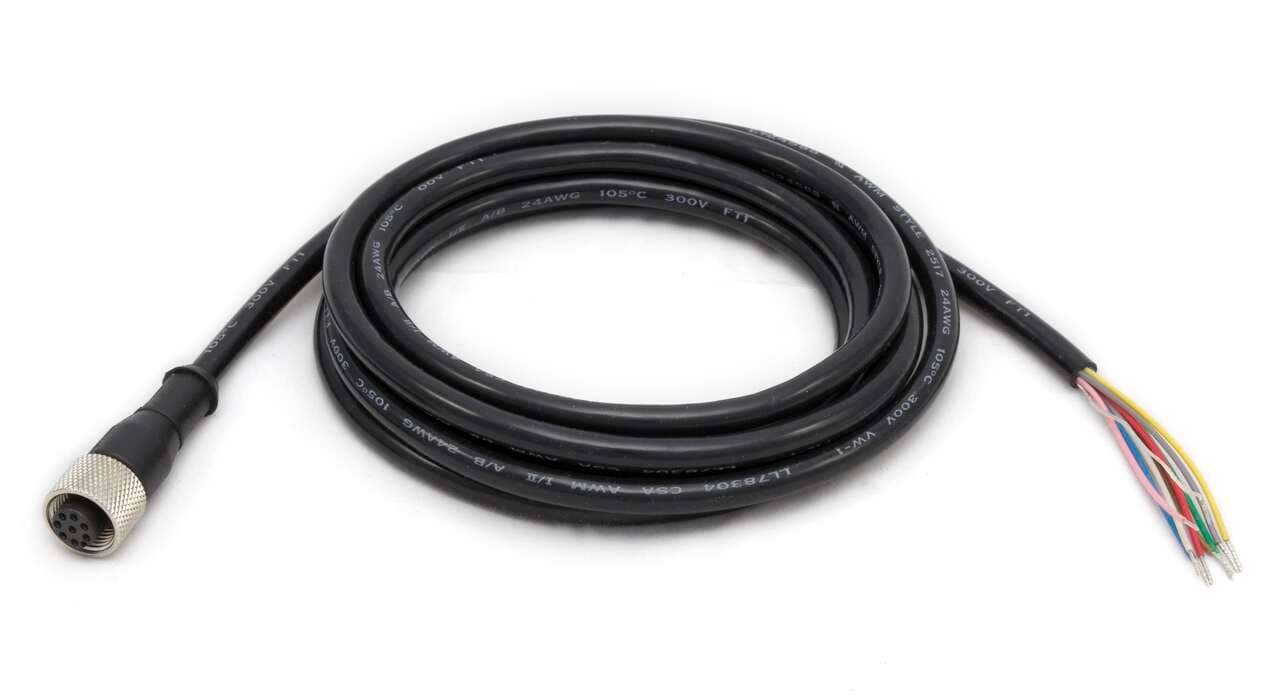

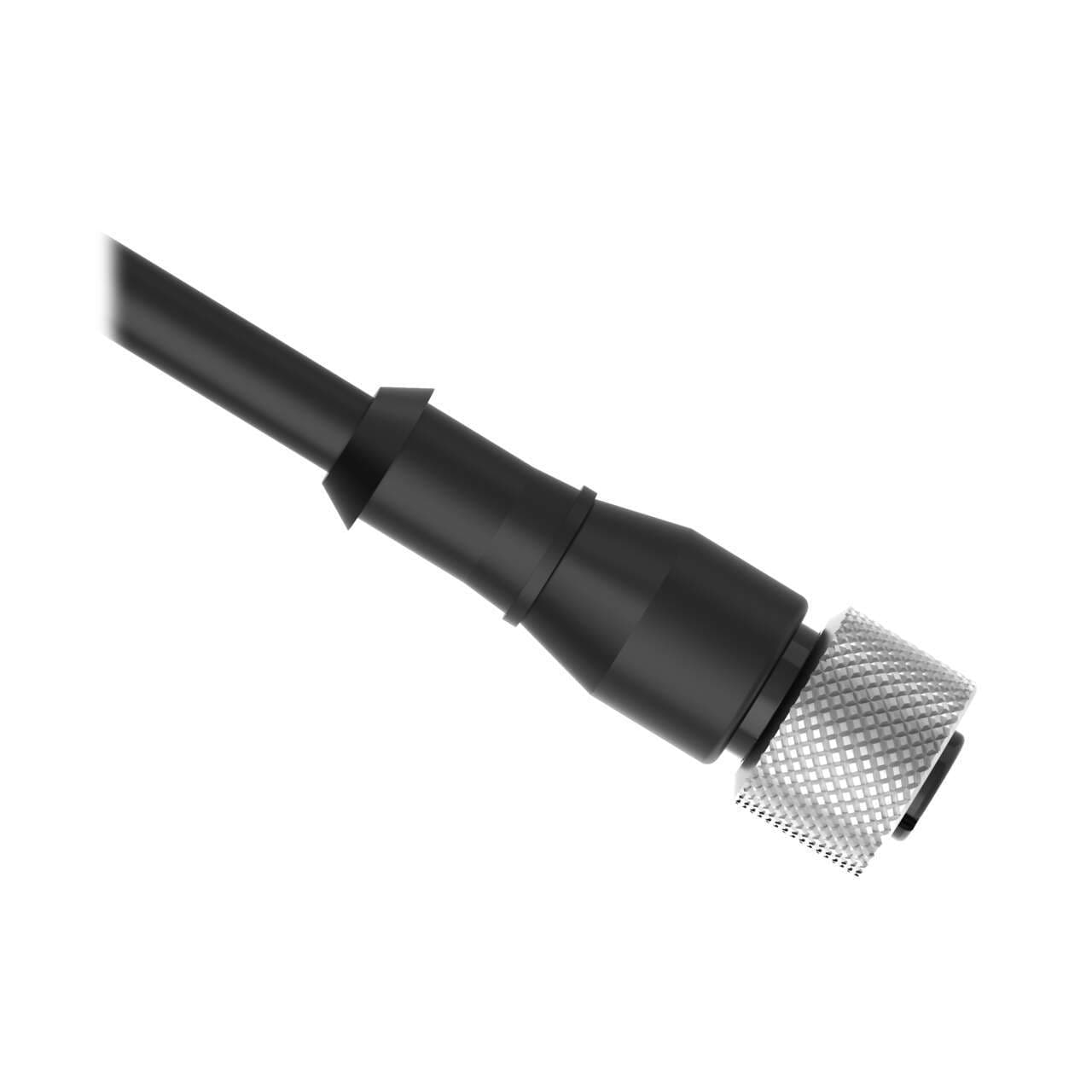

Banner Engineering MQDC-806 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female connector and bare end flying leads. The cable has a diameter of 5.6mm and is encased in black sheathing made from PVC, ensuring durability and flexibility. The coupling nut is made from chrome-plated brass, enhancing the connector's strength and resistance to wear. This model is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance is required. The MQDC-806 operates at a rated voltage of 75Vdc and has a length of 6ft (approximately 2 meters), providing ample reach for various installation needs.
