MQDC1-501.5 Banner Cordsets
Product Details
- Weight 40.0068144 g
- Country Of Origin TW
- Cordset Length (m) 0.5
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 5
- Connector Body Material/Color PUR Black
- Voltage Rating (V) 250 V ac/dc
- Secondary Connector Type Flying Leads
- Shield/No Shield No Shield
- IP Rating IP67
- Number of Contacts 5
- Number of Connectors 1
- Primary Gender Female
- Cable Jacket Material PVC
- Maximum Temp. (°C) 105
- Outside Cable Diameter (mm) 5.6
- Primary Connector Type EURO
- Primary AWG 22
- Trunk Length (m) No Trunk
- Cable Jacket Color Black
- Primary Coupling Method M12 Single Key
- Current Rating (A) 4.0
- Primary Orientation Straight
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC1-501.5 on Powermatic Associates is $18.00. Order now.
About the product

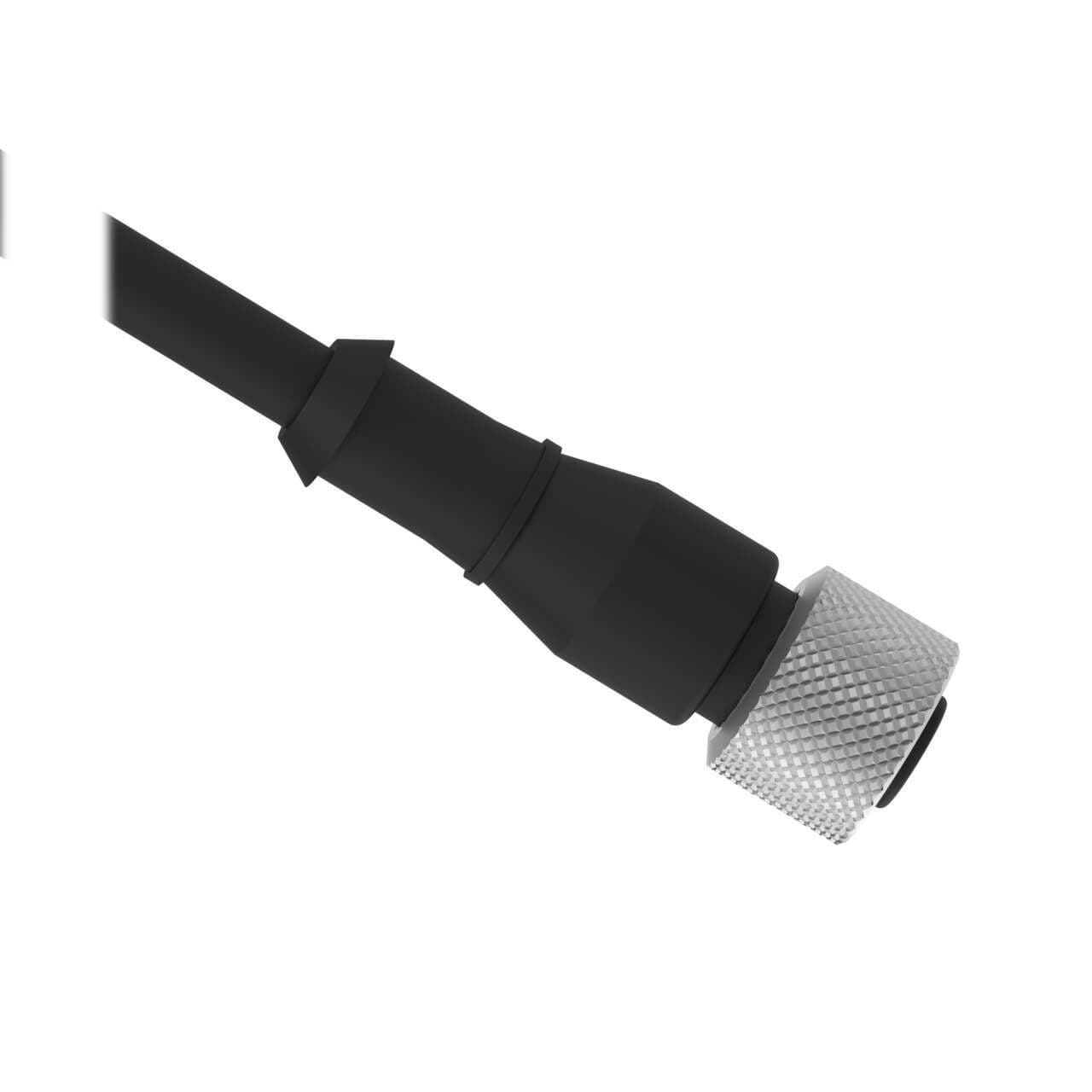

Banner Engineering MQDC1-501.5 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a 5-pin Euro-style M12 female straight connector with bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, ensuring its suitability for environments where dust and water resistance are necessary. The connector's coupling nut is made from nickel-plated brass, enhancing its durability. The cable's sheathing is black, and it has a length of 1.5ft (50cm). It is rated for a voltage of 250Vac.
Similar products from: Banner Cordsets
Manufacturer warranty
MQDC1-501.5 Banner
$18.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$18.00
$18.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDC1-501.5 with other Cordsets products
Weight
Country Of Origin
Cordset Length (m)
Minimum Temp. (°C)
Oil/Grease Resistant
Coupling Material/Color
Primary Number of Conduct...
Connector Body Material/C...
Voltage Rating (V)
Secondary Connector Type
Selected product
MQDC1-501.5
Banner
Cordset: Single Ended M12; 5-pin Straight Female; 0.5 m 5x22 Black PVC Jacket; Nickel-Plated Brass C...
Weight40.0068144 g
Country Of OriginTW
Cordset Length (m)0.5
Minimum Temp. (°C)-40
Oil/Grease ResistantNo
Coupling Material/ColorNickel Plated Brass
Primary Number of Conductors5
Connector Body Material/ColorPUR Black
Voltage Rating (V)250 V ac/dc
Secondary Connector TypeFlying Leads
QDE-860D
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Bras...
Weight1088.6208 g
Country Of OriginTW
Cordset Length (m)18.3
Minimum Temp. (°C)-
Oil/Grease Resistant-
Coupling Material/ColorNickel Plated Brass
Primary Number of Conductors-
Connector Body Material/ColorPUR Black
Voltage Rating (V)-
Secondary Connector Type-
RDLP-815D
Banner
Cordset: Single Ended LP-Custom; 8-pin Straight Male; 4.6 m 8x22 Yellow PVC Jacket; TPU Black
Weight288.3937936 g
Country Of OriginTW
Cordset Length (m)4.57
Minimum Temp. (°C)-
Oil/Grease Resistant-
Coupling Material/ColorNylon Black
Primary Number of Conductors-
Connector Body Material/ColorPUR Black
Voltage Rating (V)-
Secondary Connector Type-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDC1-501.5?
Purchase the MQDC1-501.5 from Powermatic Associates at the price of $18.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M12; 5-pin Straight Female; 0.5 m 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
