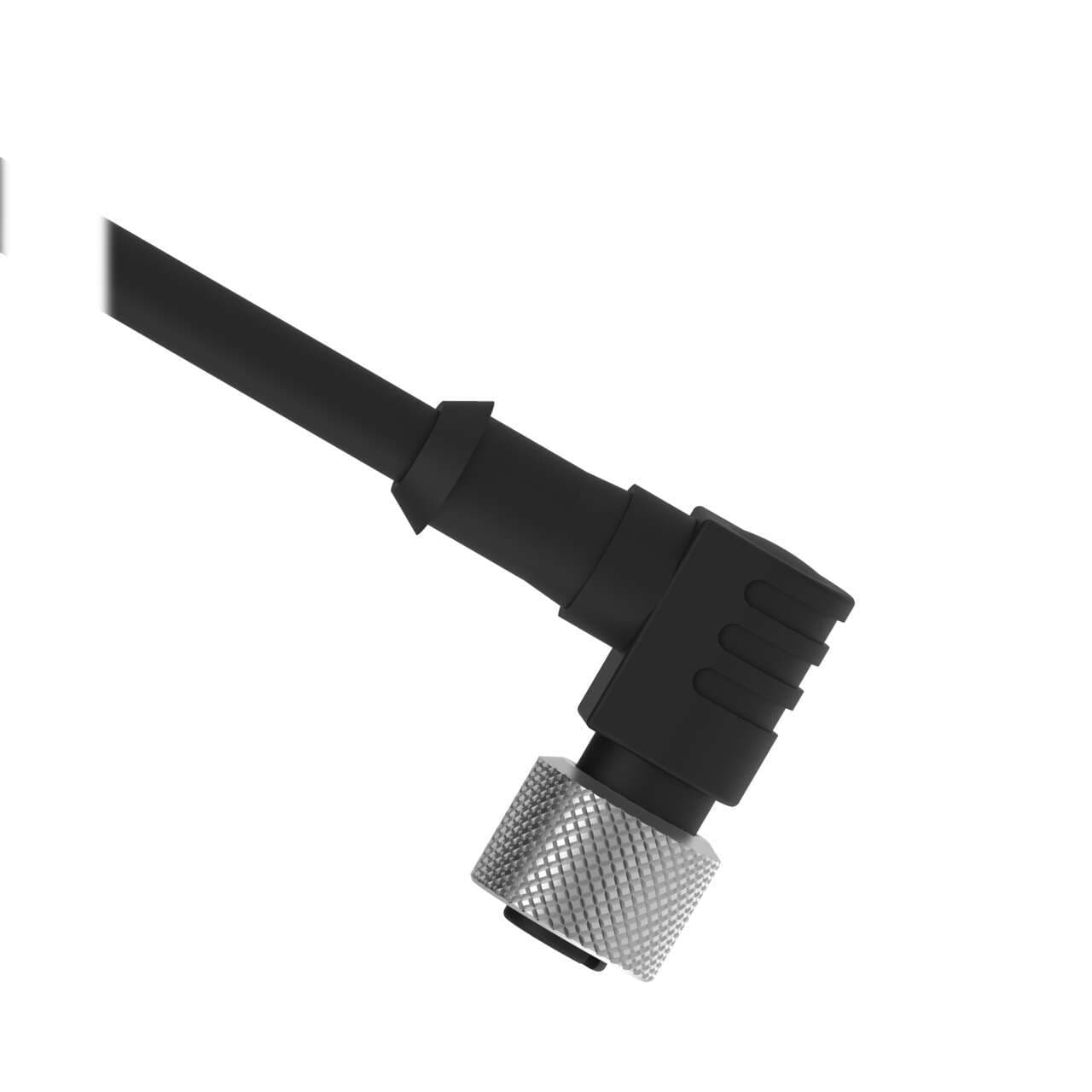

MQDC1-506RA Banner Cordsets
Product Details
- Weight 99.79024 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary AWG 22
- Secondary Connector Type Flying Leads
- Primary Number of Conductors 5
- Primary Orientation Right Angle
- Primary Gender Female
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- Voltage Rating (V) 250 V ac/dc
- IP Rating IP67
- Minimum Temp. (°C) -40
- Current Rating (A) 4.0
- Maximum Temp. (°C) 105
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Cordset Length (m) 1.83
- Trunk Length (m) No Trunk
- Outside Cable Diameter (mm) 5.6
- Connector Body Material/Color PUR Black
- Number of Contacts 5
- Cable Jacket Color Black
- Cable Jacket Material PVC
- Number of Connectors 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC1-506RA on Powermatic Associates is $32.00. Order now.
About the product
Banner Engineering MQDC1-506RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 6.5ft (2m). This model is equipped with a 5-pin Euro-style M12 female angled connector and bare end flying leads for connectivity. The connection nut is made from nickel-plated brass, ensuring durability. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The cable is rated for 250Vac and comes with black sheathing.
