MQDC1-5150 Banner Cordsets
Product Details
- Weight 1494.132048 g
- Country Of Origin TW
- Connector Body Material/Color PUR Black
- Current Rating (A) 4.0
- Secondary Connector Type Flying Leads
- Trunk Length (m) No Trunk
- IP Rating IP67
- Cable Jacket Color Black
- Voltage Rating (V) 250 V ac/dc
- Outside Cable Diameter (mm) 5.6
- Primary Gender Female
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Straight
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Feature: Hazardous Area No
- Shield/No Shield No Shield
- Primary Number of Conductors 5
- Number of Contacts 5
- Primary Coupling Method M12 Single Key
- Oil/Grease Resistant No
- Cordset Length (m) 31
- Maximum Temp. (°C) 105
- Primary AWG 22
- Number of Connectors 1
- Primary Connector Type EURO
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC1-5150 on Powermatic Associates is $203.00. Order now.
About the product

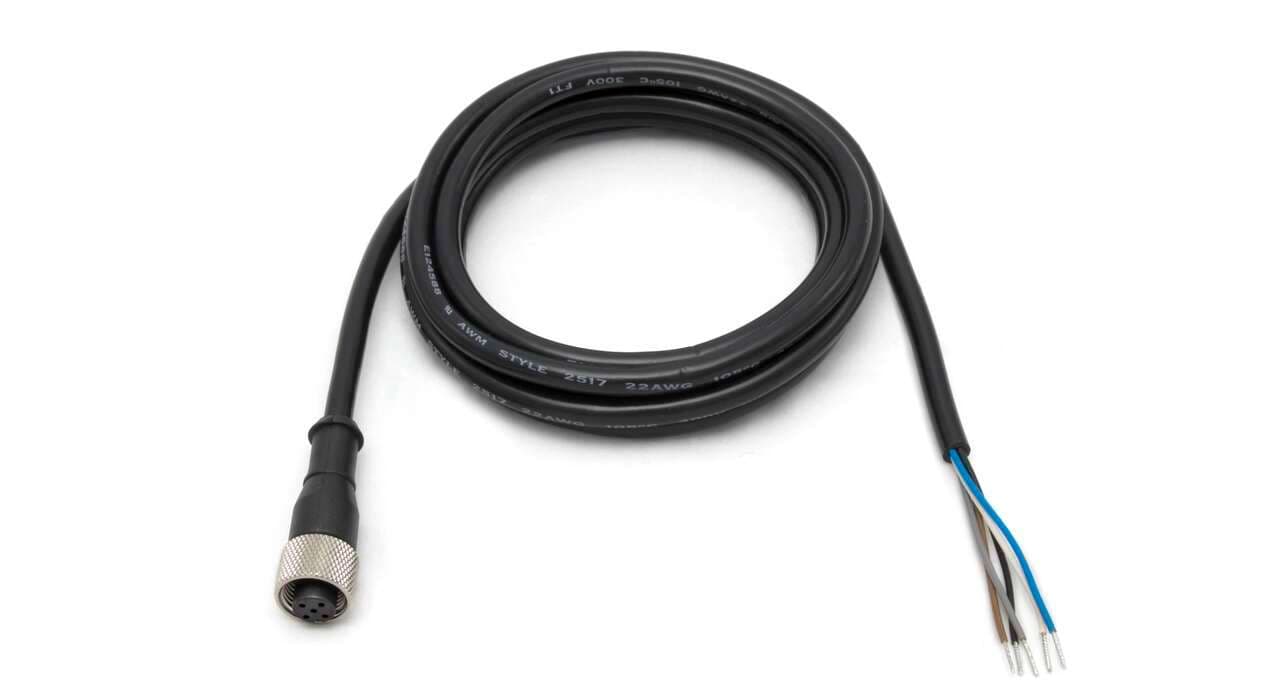

Banner Engineering MQDC1-5150 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a 5-pin Euro-style M12 female connector with bare end flying leads. The cable offers an ambient air temperature operation range from -40 to +105 degrees Celsius. It is equipped with a chrome-plated brass coupling nut, ensuring a secure connection. The MQDC1-5150 is protected against ingress with an IP67 rating, making it suitable for challenging environments. The black sheathing covers a length of 150ft (45.72m), and it is rated for 250Vac.
