MQDC1-560RA Banner Cordsets
Product Details
- Weight 453.592 g
- Country Of Origin US
- Feature: Hazardous Area No
- Oil/Grease Resistant No
- Primary AWG 22
- Secondary Connector Type Flying Leads
- Primary Number of Conductors 5
- Primary Gender Female
- Primary Orientation Right Angle
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- IP Rating IP67
- Current Rating (A) 4.0
- Maximum Temp. (°C) 105
- Voltage Rating (V) 250 V ac/dc
- Minimum Temp. (°C) -40
- Coupling Material/Color Nickel Plated Brass
- Trunk Length (m) No Trunk
- Outside Cable Diameter (mm) 5.6
- Connector Body Material/Color PUR Black
- Shield/No Shield No Shield
- Cordset Length (m) 18.3
- Number of Connectors 1
- Cable Jacket Material PVC
- Cable Jacket Color Black
- Number of Contacts 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC1-560RA on Powermatic Associates is $85.00. Order now.
About the product

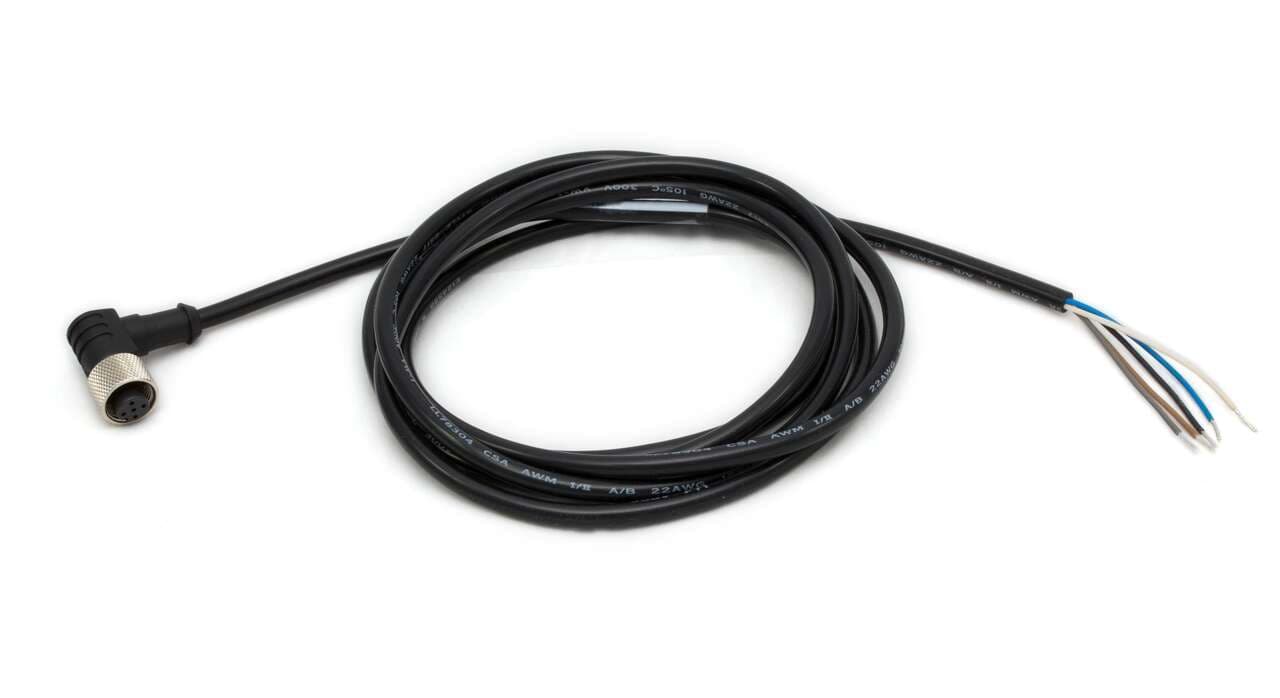

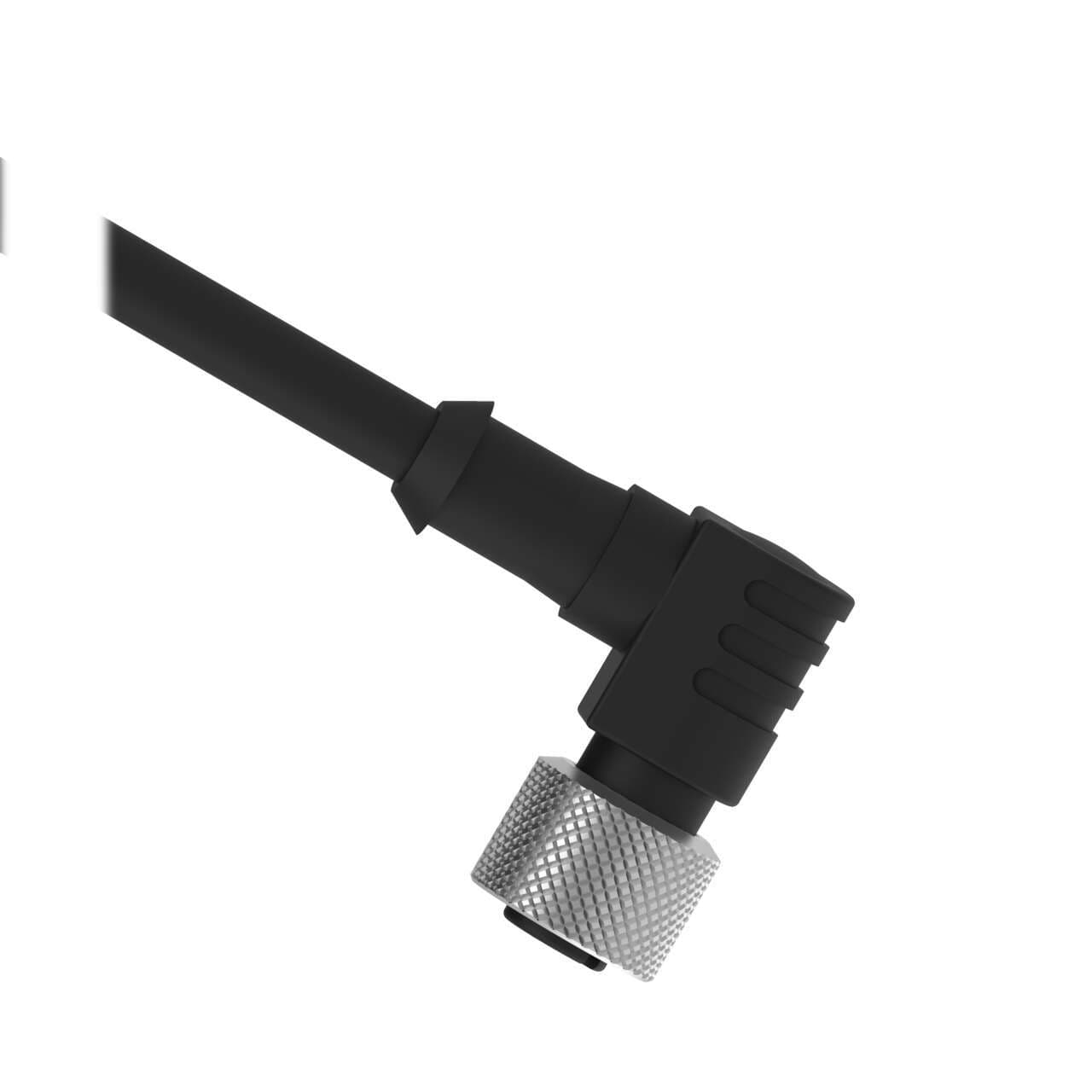

Banner Engineering MQDC1-560RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a 5-pin Euro-style M12 female angled connector with bare end flying leads. The connection is secured with a chrome-plated brass coupling nut. This cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance are required. The black sheathing ensures a neutral appearance in various settings. With a length of 60ft (18m) and a rated voltage of 250Vac, this cable is designed to meet the needs of a wide range of industrial applications.
