MQDC20SS-515 Banner Cordsets

Name: MQDC20SS-515
Brand: Banner
Price: 155 USD
Availability: BackOrder

Part#:MQDC20SS-515

Alt. Part#:79874

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

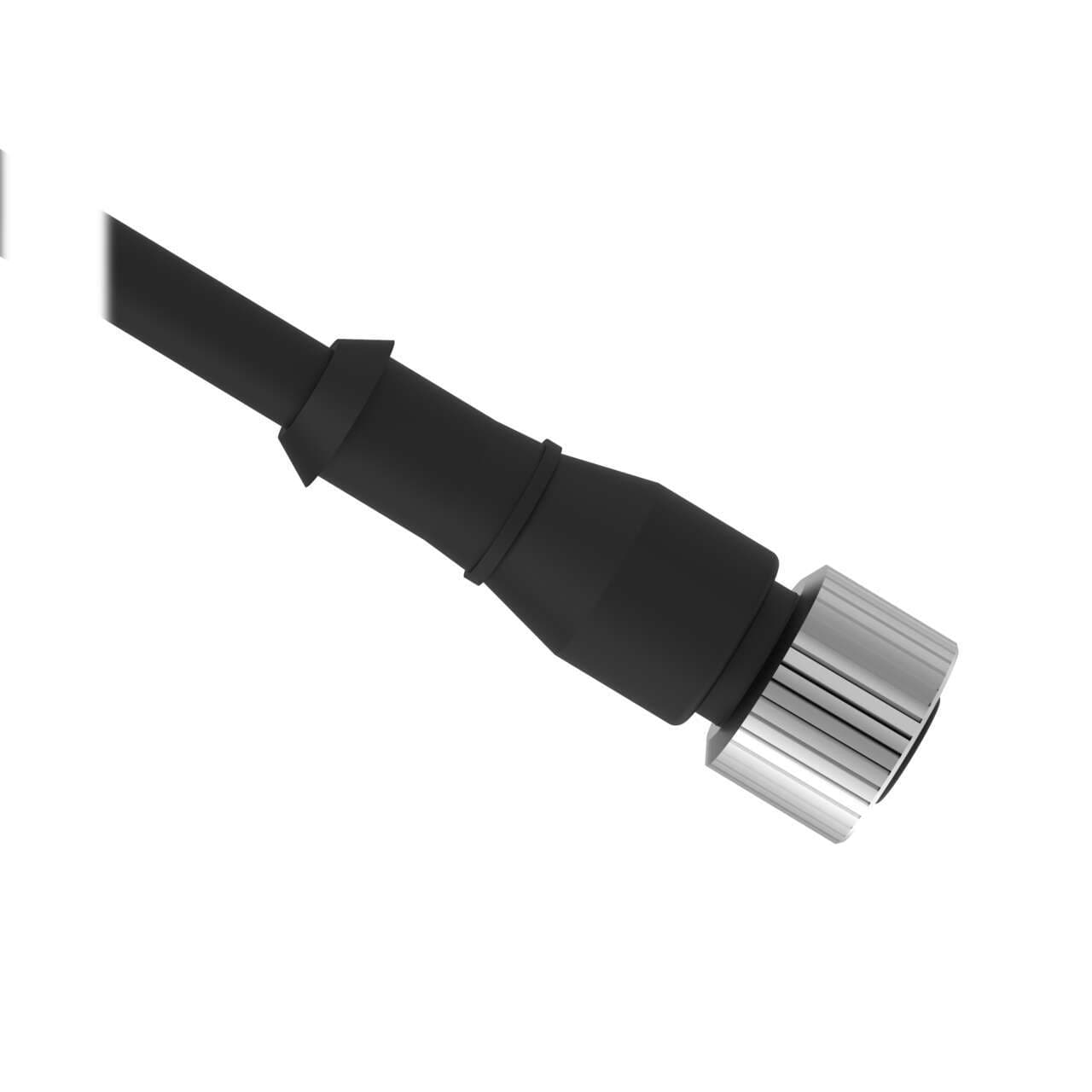

Cordset: Single Ended M12; 5-pin Straight Female; 5 m (16.4 ft) 5x20 Black PVC Jacket; 316 Stainless Steel Coupling Nut

Product Details

Weight
317.5144 g
Country Of Origin
TW
Oil/Grease Resistant
No
Primary Number of Conductors
5
Feature: Hazardous Area
No
Secondary Connector Type
Flying Leads
Primary Orientation
Straight
Primary AWG
20
Primary Gender
Female
Primary Coupling Method
M12 Single Key
Primary Connector Type
EURO
Coupling Material/Color
300 Series Stainless
Voltage Rating (V)
250 V ac/dc
Current Rating (A)
4.0
IP Rating
IP67
Minimum Temp. (°C)
-40
Maximum Temp. (°C)
105
Shield/No Shield
No Shield
Connector Body Material/Color
PUR Black
Cable Jacket Color
Black

Outside Cable Diameter (mm)

Cordset Length (m)

4.57

Trunk Length (m)

No Trunk

Number of Connectors

Cable Jacket Material

PVC

Number of Contacts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC20SS-515 on Powermatic Associates is $155.00. Order now.

About the product

Banner Engineering MQDC20SS-515 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 6mm diameter PVC cable and a stainless steel coupling nut. The cable is equipped with a 5-pin Euro-style M12 female connector and bare end flying leads, ensuring compatibility with a wide range of devices. It offers a degree of protection of IP67, making it suitable for use in environments where dust and water resistance are necessary. The black sheathing encases the cable, which has a length of 15ft (5m). It operates within an ambient air temperature range of -40 to +105°C and is rated for 250Vac.
