MQDEC-401SS Banner Cordsets
Product Details
- Weight 28.2134224 g
- Country Of Origin US
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Straight
- Cable Jacket Color Black
- Primary Coupling Method M12 Single Key
- Secondary Orientation Straight
- Number of Contacts 4
- Minimum Temp. (°C) -40
- Primary Number of Conductors 5
- Number of Connectors 2
- Current Rating (A) 4.0
- Secondary Connector Type EURO
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Trunk Length (m) No Trunk
- Primary Connector Type EURO
- Secondary Number of Conductors 4
- Cable Jacket Material PVC
- Primary Gender Female
- Secondary AWG 22
- Cordset Length (m) 0.31
- IP Rating IP67
- Secondary Gender Male
- Outside Cable Diameter (mm) 5.9
- Maximum Temp. (°C) 105
- Primary AWG 22
- Shield/No Shield No Shield
- Voltage Rating (V) 250 V ac/dc
- Secondary Coupling Method M12 Single Key
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC-401SS on Powermatic Associates is $44.00. Order now.
About the product

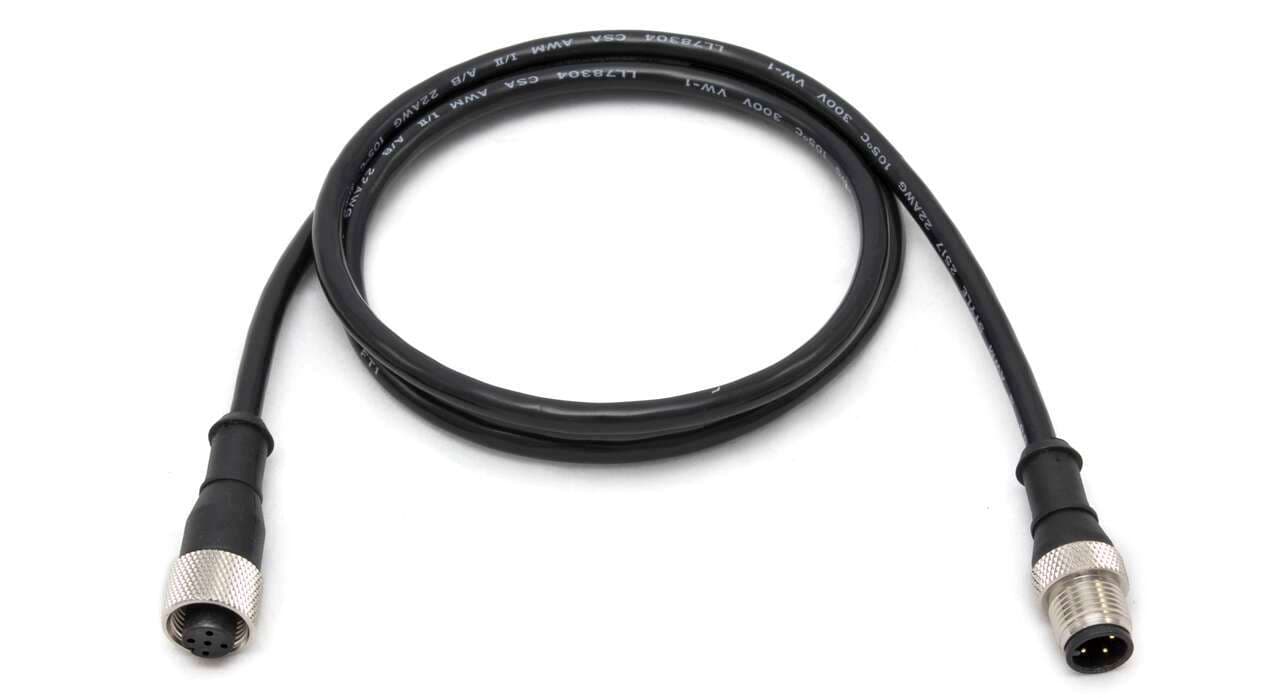

Banner Engineering MQDEC-401SS is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5.9mm diameter PVC cable and black sheathing. The cable is equipped with a 5-pin Euro-style M12 female connector on one end and a 4-pin Euro-style M12 male connector on the other, both featuring chrome-plated brass coupling nuts. This model is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius and offers a degree of protection of IP67, making it suitable for environments where dust and water resistance are necessary. The MQDEC-401SS has a length of 300mm and is rated for a voltage of 250Vac.
