MQDEC-420SR Banner Cordsets
Product Details
- Weight 272.1552 g
- Country Of Origin US
- Shield/No Shield No Shield
- IP Rating IP67
- Number of Connectors 2
- Primary Gender Female
- Coupling Material/Color Nickel Plated Brass
- Outside Cable Diameter (mm) 5.2
- Primary Connector Type EURO
- Secondary Coupling Method M12 Single Key
- Minimum Temp. (°C) -40
- Secondary Orientation Straight
- Cable Jacket Color Black
- Primary Coupling Method M12 Single Key
- Secondary AWG 20
- Number of Contacts 4
- Primary Orientation Right Angle
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Cordset Length (m) 6.1
- Primary Number of Conductors 5
- Cable Jacket Material PVC
- Voltage Rating (V) 250 V ac/dc
- Secondary Connector Type EURO
- Trunk Length (m) No Trunk
- Current Rating (A) 4.0
- Secondary Number of Conductors 2
- Oil/Grease Resistant No
- Secondary Gender Male
- Feature: Hazardous Area No
- Primary AWG 20
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC-420SR on Powermatic Associates is $60.00. Order now.
About the product

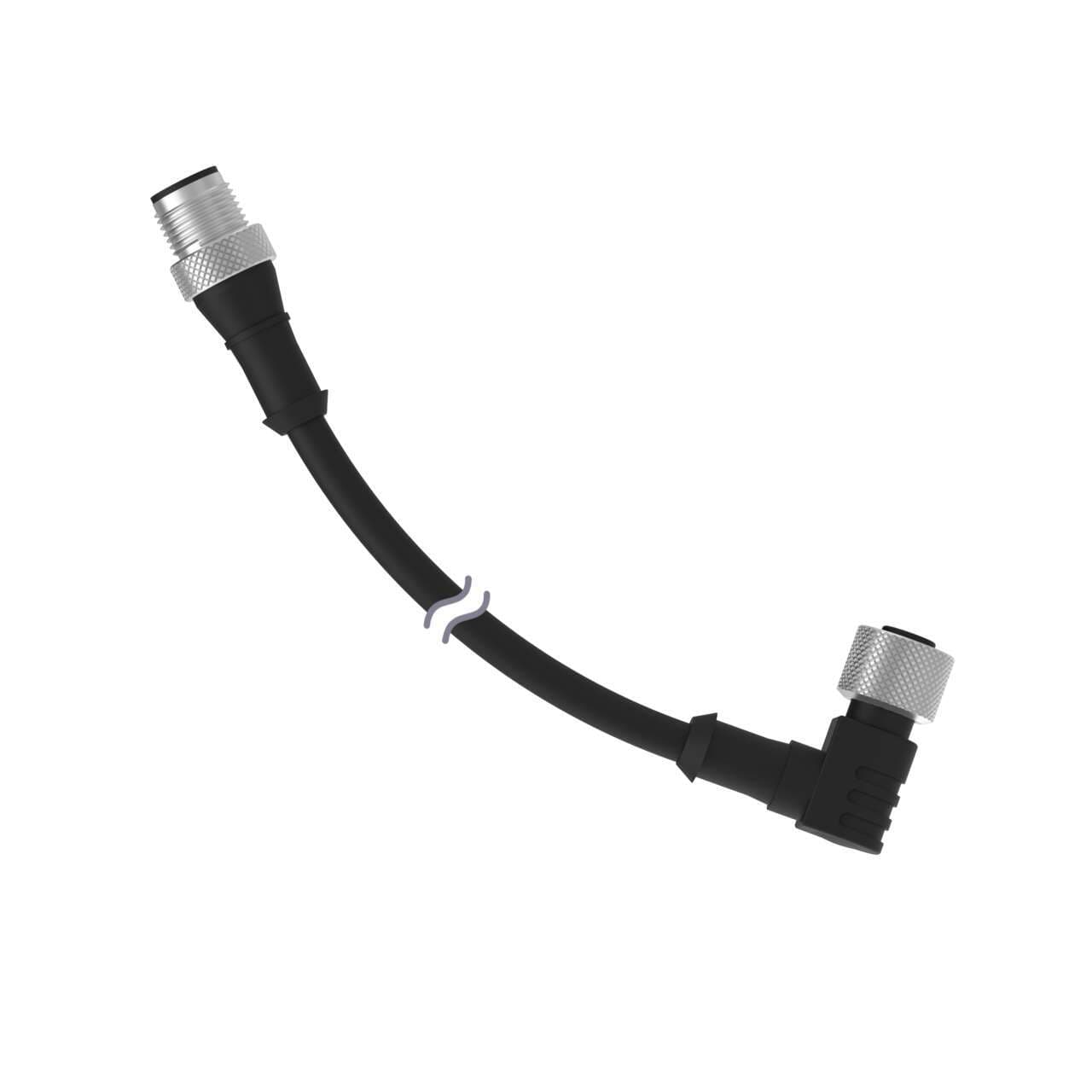

Banner Engineering MQDEC-420SR is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5.2mm diameter PVC cable and black sheathing. The cable is equipped with a 5-pin Euro-style M12 female right-angled connector and a 4-pin Euro-style M12 male connector, both featuring chrome-plated brass coupling nuts. This product is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius and offers a degree of protection of IP67. The MQDEC-420SR has a length of 6.1 meters and is rated for a voltage of 250Vac.
