MQDEC2-530RA Banner Cordsets
Product Details
- Weight 435.44832 g
- Country Of Origin US
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Secondary Connector Type Flying Leads
- Shield/No Shield Shield
- Primary Coupling Method M12 Single Key
- Maximum Temp. (°C) 105
- Primary Number of Conductors 5
- Connector Body Material/Color PUR Black
- Voltage Rating (V) 250 V ac/dc
- Feature: Hazardous Area No
- Cordset Length (m) 9.14
- Primary Connector Type EURO
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 5.6
- Current Rating (A) 4.0
- Trunk Length (m) No Trunk
- IP Rating IP67
- Number of Connectors 1
- Shield Type Open
- Primary AWG 22
- Number of Contacts 5
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Right Angle
- Cable Jacket Color Black
- Primary Gender Female
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC2-530RA on Powermatic Associates is $60.00. Order now.
About the product

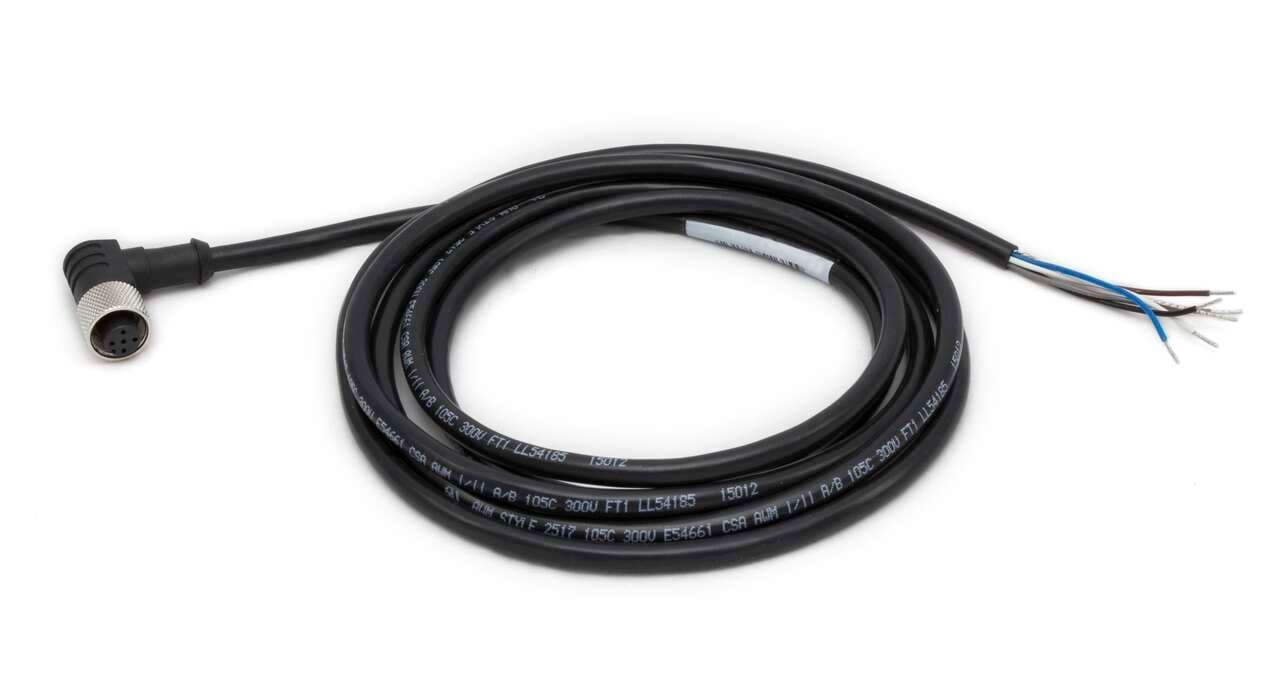

Banner Engineering MQDEC2-530RA is a pre-assembled cable/cordset designed for various automation applications. It features a 5-pin Euro-style M12 female right-angled connector with bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 5.6mm and is encased in black sheathing made from PVC, offering durability and protection. The chrome-plated brass coupling nut enhances the cable's robustness. With an ambient air temperature operation range of -40 to +105°C and a degree of protection rated at IP67, this cable is suited for challenging environments. It has a length of 30ft (9m) and is rated for 250Vac, making it suitable for a variety of electrical applications.
