MQDMC-515 Banner Cordsets
Product Details
- Weight 249.4756 g
- Country Of Origin US
- Outside Cable Diameter (mm) 5.6
- Minimum Temp. (°C) -40
- Secondary Connector Type Flying Leads
- Cordset Length (m) 4.57
- Primary Connector Type EURO
- Number of Contacts 5
- Coupling Material/Color Nickel Plated Brass
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Number of Connectors 1
- Maximum Temp. (°C) 105
- Primary Number of Conductors 5
- Cable Jacket Material PVC
- IP Rating IP67
- Shield/No Shield No Shield
- Primary Gender Male
- Connector Body Material/Color PUR Black
- Voltage Rating (V) 250 V ac/dc
- Cable Jacket Color Black
- Current Rating (A) 5.0
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary Orientation Straight
- Primary AWG 22
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDMC-515 on Powermatic Associates is $46.00. Order now.
About the product

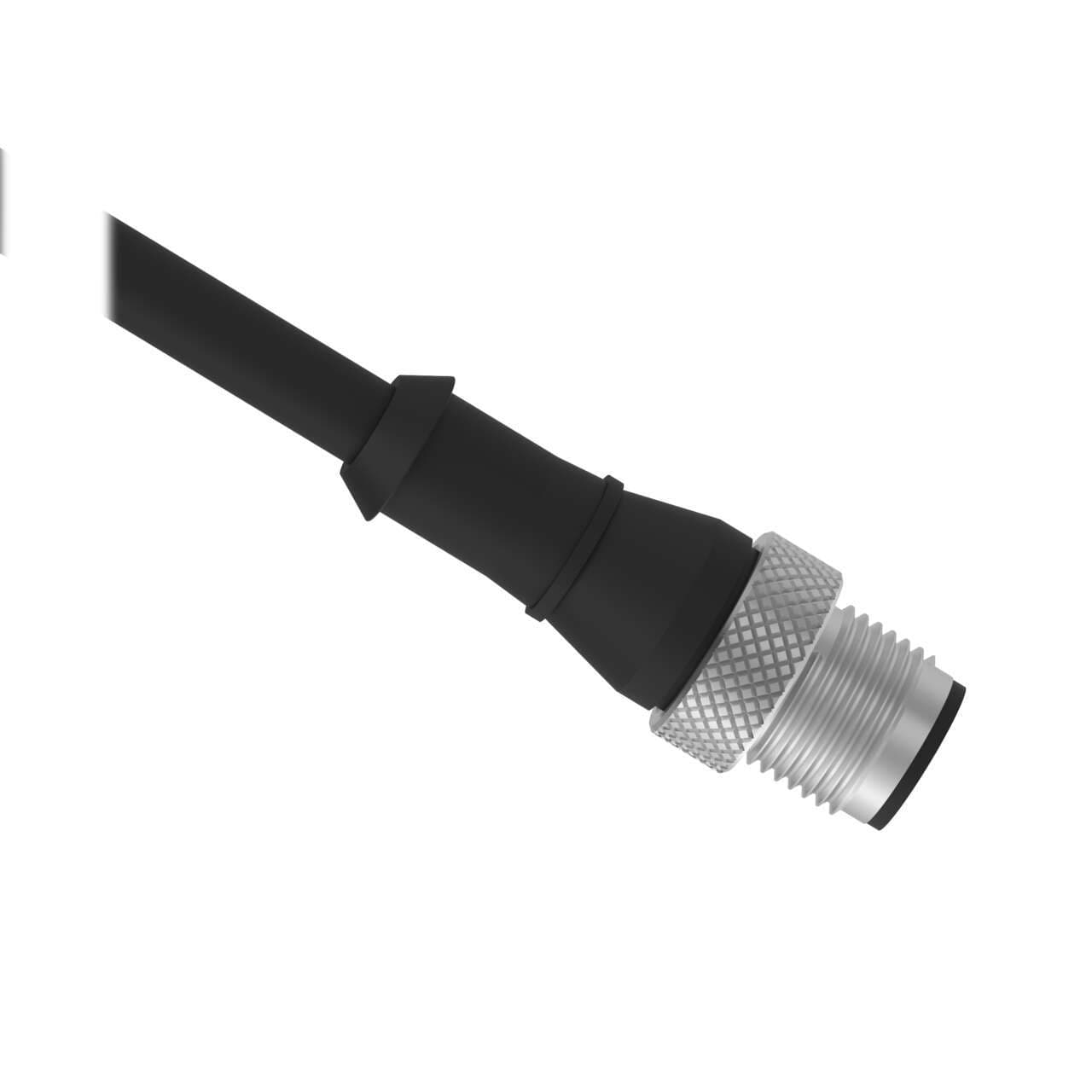

Banner Engineering MQDMC-515 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 15ft (5m). This part is equipped with a 5-pin Euro-style M12 male connector and bare end flying leads for connectivity. The connector's coupling nut is made from nickel-plated brass, ensuring a durable connection. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The cable is black sheathed, and it is rated for a voltage of 250Vac.
Similar products from: Banner Cordsets
Manufacturer warranty
MQDMC-515 Banner
$46.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$46.00
$46.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDMC-515 with other Cordsets products
Weight
Country Of Origin
Outside Cable Diameter (m...
Minimum Temp. (°C)
Secondary Connector Type
Cordset Length (m)
Primary Connector Type
Number of Contacts
Coupling Material/Color
Trunk Length (m)
Selected product
MQDMC-515
Banner
Cordset: Single Ended M12; 5-pin Straight Male; 5.04 m 5x22 Black PVC Jacket; Nickel-Plated Brass Co...
Weight249.4756 g
Country Of OriginUS
Outside Cable Diameter (mm)5.6
Minimum Temp. (°C)-40
Secondary Connector TypeFlying Leads
Cordset Length (m)4.57
Primary Connector TypeEURO
Number of Contacts5
Coupling Material/ColorNickel Plated Brass
Trunk Length (m)No Trunk
QDE-860D
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Bras...
Weight1088.6208 g
Country Of OriginTW
Outside Cable Diameter (mm)6
Minimum Temp. (°C)-
Secondary Connector Type-
Cordset Length (m)18.3
Primary Connector Type-
Number of Contacts8
Coupling Material/ColorNickel Plated Brass
Trunk Length (m)No Trunk
MQDEC-401SS-PUR
Banner
Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 0.3 m 4x22 Black PUR Jacket; ...
Weight45.3592 g
Country Of OriginUS
Outside Cable Diameter (mm)4.1
Minimum Temp. (°C)-
Secondary Connector Type-
Cordset Length (m)0.3
Primary Connector Type-
Number of Contacts4
Coupling Material/ColorNickel Plated Brass
Trunk Length (m)No Trunk
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDMC-515?
Purchase the MQDMC-515 from Powermatic Associates at the price of $46.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M12; 5-pin Straight Male; 5.04 m 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
