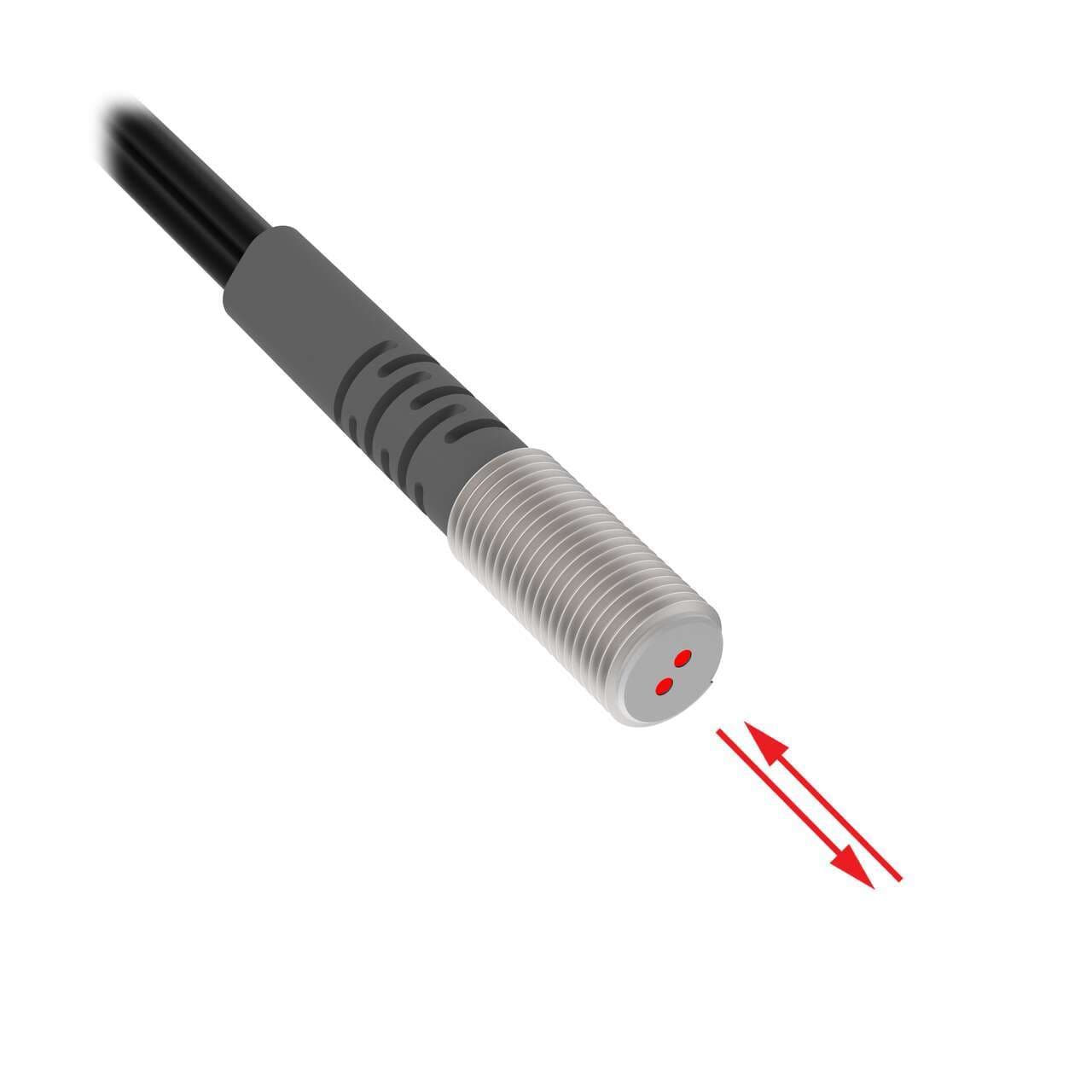

PBT46U-VL Banner Through Beam Sensors
Part#:PBT46U-VL
Alt. Part#:87514
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 2 m; M6 Thread; Flex Relief; Free cut; Vantage Line
Product Details
- Weight 25.401152 g
- Country Of Origin TW
- Product series / family name Fiber sensors
- Diameter 1mm fiber core
- Ambient air temperature for operation +70 °C
- Functions Fiber optic sensor
- Length 6ft / 2m
- Main function Fiber sensor
- Shape Cylindrical (threaded) end tip
- Primary brand Banner Engineering
- Design diffuse-reflective system flex strain relief Bifurcated fiber In-line sensing
- Sub-range name Plastic fiber - Vantage Line
- Thread size M6
- Order code / Manufacturer SKU 87514
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Equivalent to PBT46UVL
- Beam Exit In-line
- Fiber Sensing End Tip Thread
- Feature: Extended Range No
- Minimum Bend Radius (mm) 25
- Termination Type Plastic Fiber Sensors
- Sensing Mode (General) Diffuse
- Flex Relief Yes
- Application: Vacuum Feed Through None
- Max Distance: DF-G1 (mm) 186
- Minimum Repeat Bending Endurance 1000
- Tariff Fiber Meters (fbm) 4
- Sensing Mode (Detailed) Reflective
- Core Diameter (mm) 1
- Feature: Chemical Resistant No
- Housing Style Round
- Retractile No
- Integrated Lens No
- Fiber Sensing End Size - Mounting Area M6
- Sensing End Material (Specific) Nickel-Plated Brass
- Fiber Length (m) 2
- Feature: Small Object Detection No
- Fiber Optic Type Plastic
- Fiber Sensing End Size M6
- Application: Liquid Level No
- Measured Max Distance (mm) 186
- Sensing End Segment 1 Thread
- Termination Free Cut
- Fiber Sheathing Material (Jacket) Polyethylene
- Max Range: DF-G3 (mm) >1m - <=3m
- Max Temp ( °C) 70
- Max Distance: DF-G3 (mm) 1443
- Quantity Included 1
- Max Distance: DF-G2 (mm) 301
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBT46U-VL on Powermatic Associates is $37.00. Order now.
About the product
Banner Engineering PBT46U-VL is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line sensing mechanism. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip made of nickel-plated brass for the sensing end, with the fiber sheathed in polyethylene (PE). It has a total length of 6ft (2 meters) and is capable of operating in ambient air temperatures up to +70°C.
