PDIS46UM38MSD66 Banner Through Beam Sensors
Part#:PDIS46UM38MSD66
Alt. Part#:61182
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description

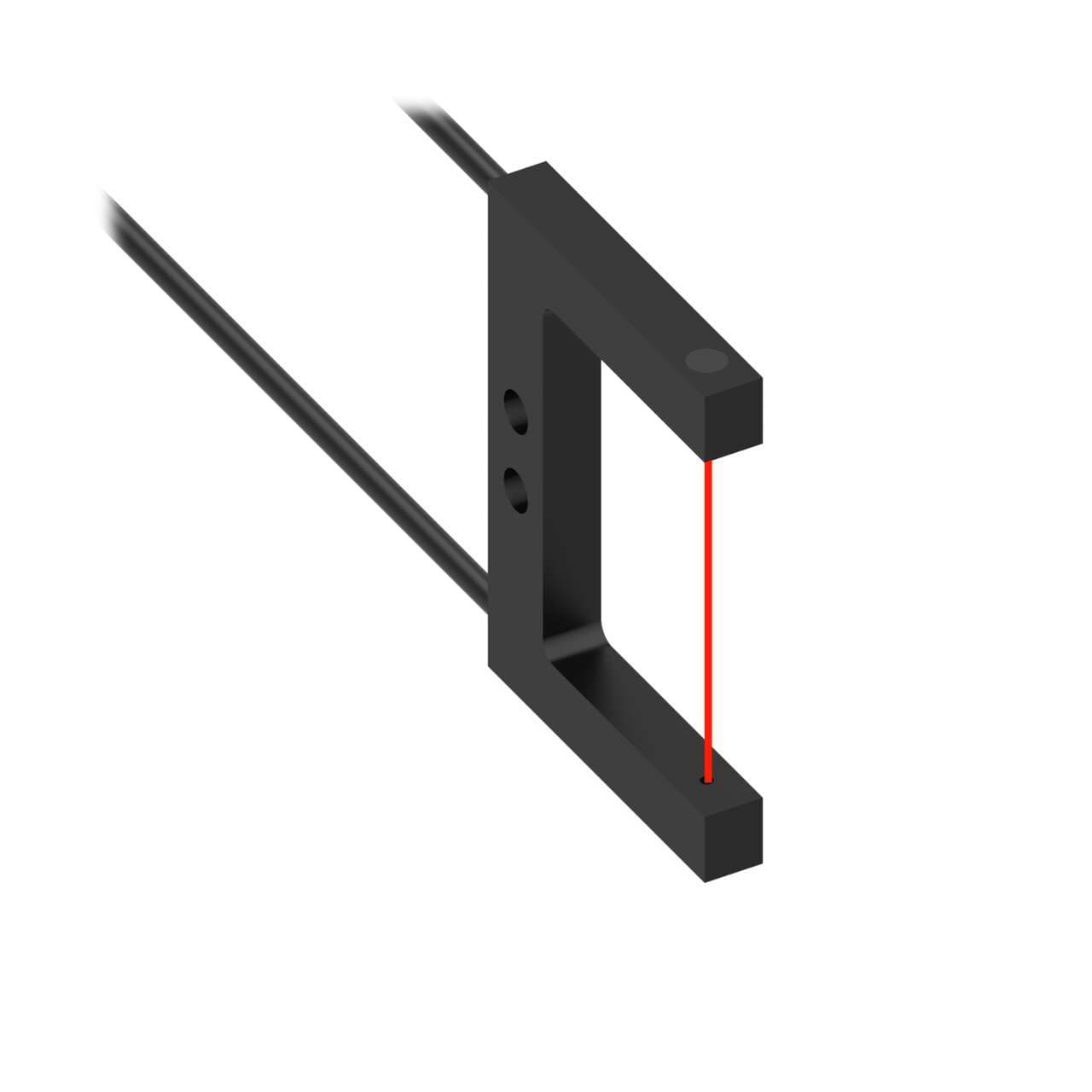

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Slot; Free cut
Product Details
- Weight 72.57472 g
- Country Of Origin JP
- Max Distance: DF-G1 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Max Distance: DF-G2 (mm) No Data
- Fiber Sensing End Size - Mounting Area 51.0 x 88.9 mm
- Slot Width (mm) 38.1
- Measured Max Distance (mm) No Data
- Termination Type Plastic Fiber Sensors
- Tariff Fiber Meters (fbm) 4
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Small Object Detection No
- Feature: Extended Range No
- Feature: Chemical Resistant No
- Integrated Lens No
- Minimum Repeat Bending Endurance 1000
- Fiber Sensing End Size 51.0 x 88.9 mm
- Core Diameter (mm) 1
- Max Temp ( °C) 70
- Sensing End Segment 1 Slot
- Fiber Length (m) 2
- Minimum Bend Radius (mm) 2
- Termination Free Cut
- Retractile No
- Flex Relief No
- Sensing Mode (General) Opposed
- Fiber Optic Type Plastic
- Quantity Included 1
- Housing Style Slot
- Sensing Mode (Detailed) Slot
- Sensing End Material (Specific) Polyethylene
- Fiber Sensing End Tip Slot
- Fiber Sheathing Material (Jacket) Polyethylene
- Beam Exit Right Angle
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PDIS46UM38MSD66 on Powermatic Associates is $186.00. Order now.
About the product
Banner Engineering PDIS46UM38MSD66 is a fiber optic sensor designed for precise detection tasks. It operates on a through-beam system, also known as an opposed mode pair of individual fibers, with side and right-angled sensing capabilities. The sensor features a 1mm fiber core diameter and is part of the Plastic fiber series. It has a slot shape with the sensing end made of aluminum and the fiber sheath constructed from polyethylene (PE), ensuring durability and compatibility with various applications. The fiber length is 6ft (approximately 2m), and it is designed to function optimally in ambient air temperatures up to +70°C.
