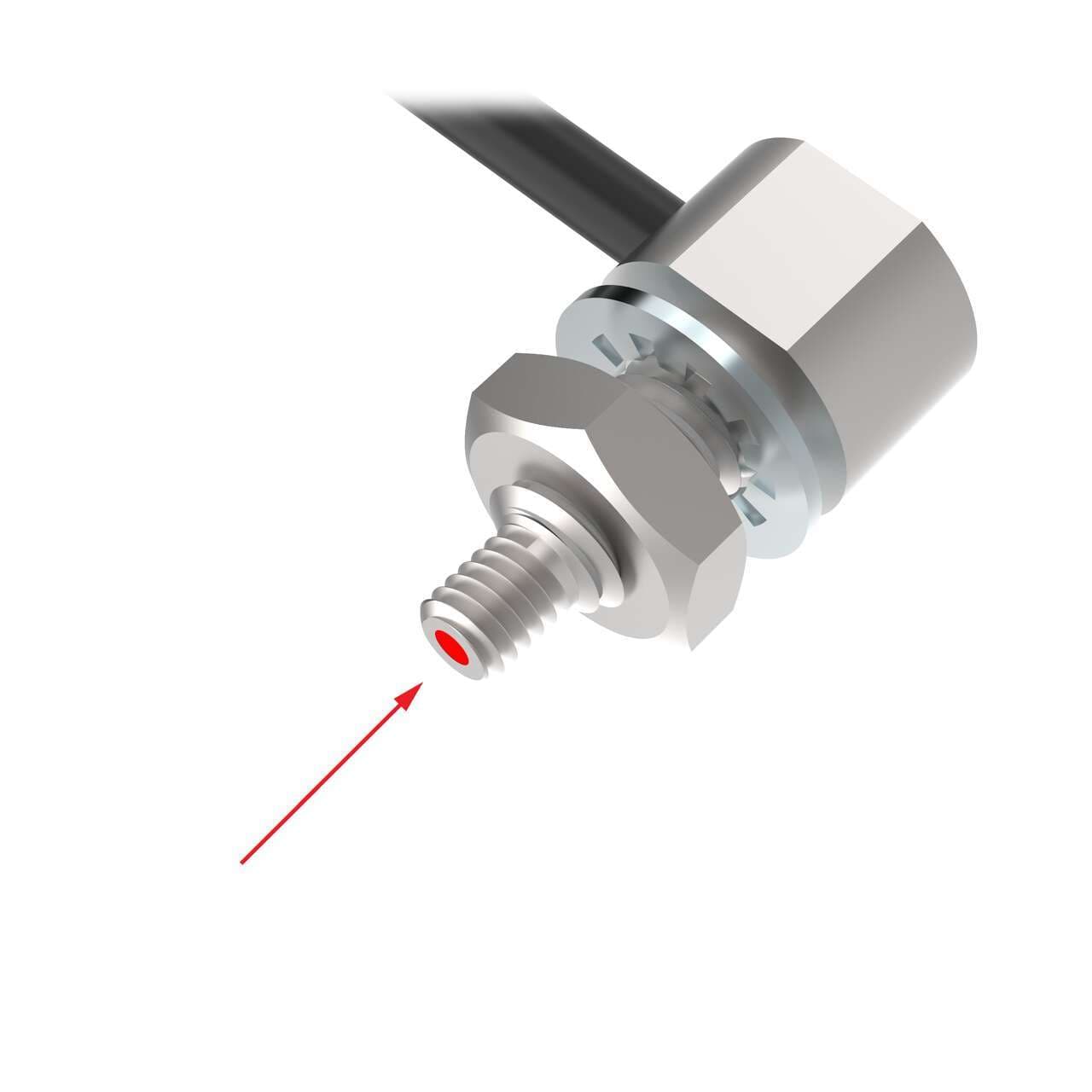

PIAT430UHFMTA Banner Through Beam Sensors

Name: PIAT430UHFMTA
Brand: Banner
Price: 361 USD
Availability: BackOrder

Part#:PIAT430UHFMTA

Alt. Part#:97694

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber; Opposed Mode; Core Dia.: 1 mm; Fiber Length 10 m; Angle, Thread DuraBend, Free Cut

Product Details

Weight
45.3592 g
Country Of Origin
JP
Termination Type
Plastic Fiber Sensors
Feature: Extended Range
No
Fiber Sensing End Size
M2.5
Quantity Included
2
Max Distance: DF-G3 (mm)
No Data
Max Distance: DF-G1 (mm)
No Data
Max Distance: DF-G2 (mm)
No Data
Fiber Sensing End Size - Mounting Area
M4
Measured Max Distance (mm)
No Data
Tariff Fiber Meters (fbm)
20
Application: Vacuum Feed Through
None
Termination
Free Cut
Integrated Lens
No
Minimum Repeat Bending Endurance
1000
Max Temp ( °C)
70
Application: Liquid Level
No
Feature: Small Object Detection
No
Feature: Chemical Resistant
No

Minimum Bend Radius (mm)

Core Diameter (mm)

1.1

Flex Relief

Retractile

Sensing End Segment 3

Thread

Sensing End Segment 1

Angle

Sensing End Segment 2

Thread

Fiber Length (m)

Beam Exit

Right Angle

Fiber Sheathing Material (Jacket)

Polyethylene

Sensing Mode (Detailed)

Reflective

Fiber Sensing End Tip

Thread

Sensing End Material (Specific)

Stainless Steel

Fiber Optic Type

Plastic

Housing Style

Round

Sensing Mode (General)

Opposed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT430UHFMTA on Powermatic Associates is $361.00. Order now.

About the product

Banner Engineering PIAT430UHFMTA is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers with side, right-angled sensing. It features a 1mm fiber core diameter and falls under the Plastic fiber series. The sensor has a cylindrical (threaded) end tip, constructed with a stainless steel sensing end and a Steelskin fiber sheath for enhanced durability. It is designed to operate in ambient air temperatures up to +70°C. The total length of the sensor is 3ft / 1m, accommodating various installation requirements.
