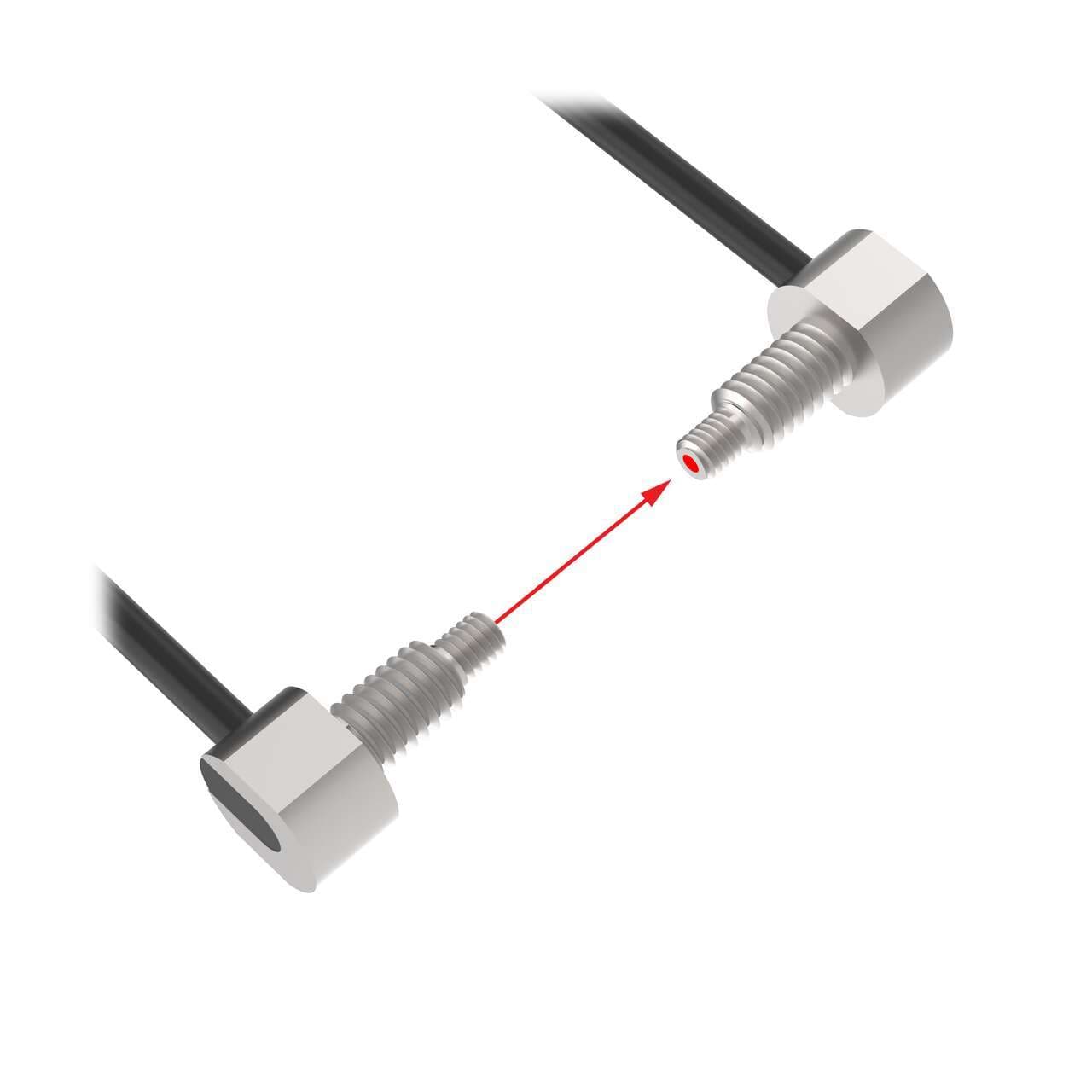

PIAT46UHFMTA Banner Through Beam Sensors
Part#:PIAT46UHFMTA
Alt. Part#:73279
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Angle, Thread; DuraBend, Free cut
Product Details
- Weight 45.3592 g
- Country Of Origin JP
- Primary brand Banner Engineering
- Design through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
- Main function Fiber sensor
- Diameter 1mm fiber core
- Ambient air temperature for operation +70 °C
- Product series / family name Fiber sensors
- Shape Cylindrical (threaded) end tip
- Thread size M4
- Sub-range name Plastic fiber series
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Functions Fiber optic sensor
- Length 6ft / 2m
- Order code / Manufacturer SKU 73279
- Flex Relief No
- Max Range: DF-G3 (mm) >3m - <=5m
- Retractile No
- Feature: Chemical Resistant No
- Fiber Sensing End Size - Mounting Area M4
- Fiber Sensing End Tip Thread
- Max Temp ( °C) 70
- Termination Type Plastic Fiber Sensors
- Fiber Length (m) 2
- Max Distance: DF-G3 (mm) 3036
- Sensing Mode (Detailed) Reflective
- Core Diameter (mm) 1.1
- Application: Liquid Level No
- Housing Style Round
- Sensing End Segment 1 Angle
- Integrated Lens No
- Fiber Optic Type Plastic
- Fiber Sensing End Size M2.5
- Termination Free Cut
- Max Distance: DF-G2 (mm) 633
- Sensing End Material (Specific) Stainless Steel
- Minimum Bend Radius (mm) 2
- Measured Max Distance (mm) 391
- Sensing End Segment 3 Thread
- Feature: Extended Range No
- Quantity Included 2
- Sensing End Segment 2 Thread
- Application: Vacuum Feed Through None
- Sensing Mode (General) Opposed
- Fiber Sheathing Material (Jacket) Polyethylene
- Minimum Repeat Bending Endurance 1000
- Beam Exit Right Angle
- Feature: Small Object Detection No
- Tariff Fiber Meters (fbm) 4
- Max Distance: DF-G1 (mm) 391
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT46UHFMTA on Powermatic Associates is $175.00. Order now.
About the product
Banner Engineering PIAT46UHFMTA is a fiber optic sensor designed for precise detection tasks. It operates within an ambient air temperature of up to +70°C and features a through-beam system, also known as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. The sensor has a 1mm fiber core diameter and is part of the Plastic fiber series. Its cylindrical (threaded) end tip is constructed from stainless steel, while the fiber itself is made of plastic, and the sheath is polyethylene (PE), ensuring durability and flexibility. The total length of the fiber is 6ft or approximately 2 meters, accommodating various installation requirements.
