PIAT46UHFTA-VL Banner Through Beam Sensors

Name: PIAT46UHFTA-VL
Brand: Banner
Price: 141 USD
Availability: BackOrder

Part#:PIAT46UHFTA-VL

Alt. Part#:93160

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

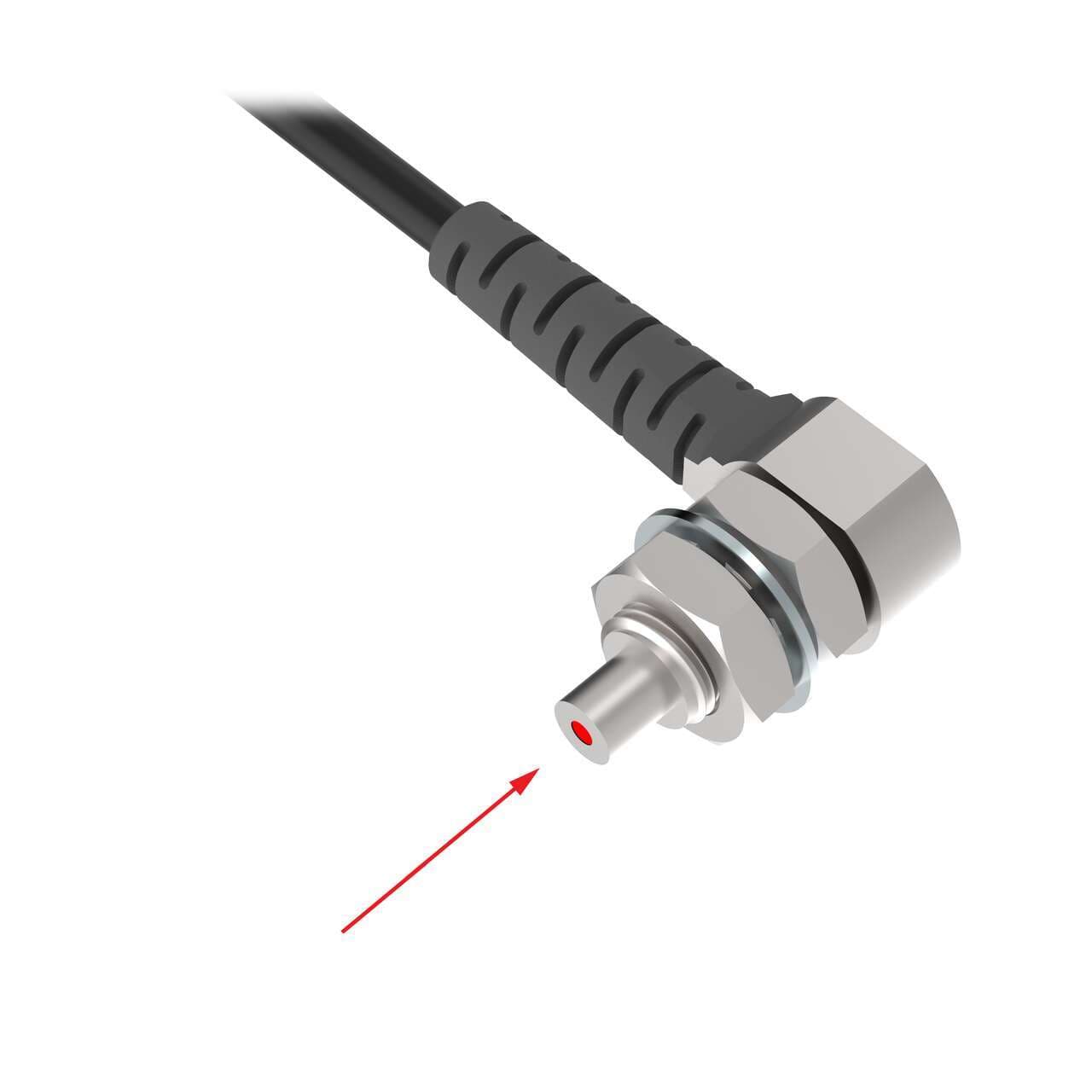

Plastic Fiber; Opposed; Core Dia.: 1 mm; Fiber Length 2 m; Tight Angle; Thread M4; High Flex 2 mm Bend Radius; Flex Relief; Free cut; Vantage Line

Product Details

Weight
22.6796 g
Country Of Origin
TW
Tariff Fiber Meters (fbm)
4
Application: Vacuum Feed Through
None
Integrated Lens
No
Termination
Free Cut
Minimum Bend Radius (mm)
2
Sensing End Material (Specific)
Stainless Steel
Max Distance: DF-G1 (mm)
478
Max Distance: DF-G2 (mm)
774
Measured Max Distance (mm)
478
Max Distance: DF-G3 (mm)
3711
Fiber Sensing End Size - Mounting Area
M4
Termination Type
Plastic Fiber Sensors
Application: Liquid Level
No
Minimum Repeat Bending Endurance
1000
Feature: Extended Range
No
Feature: Chemical Resistant
No
Feature: Small Object Detection
No
Sensing End Segment 3
Thread

Max Temp ( °C)

Retractile

Sensing End Segment 1

Angle

Flex Relief

Yes

Fiber Length (m)

Sensing End Segment 2

Thread

Fiber Sensing End Tip

Thread

Core Diameter (mm)

Housing Style

Round

Quantity Included

Beam Exit

Right Angle

Fiber Optic Type

Plastic

Max Range: DF-G3 (mm)

>3m - <=5m

Fiber Sheathing Material (Jacket)

Polyethylene

Fiber Sensing End Size

M2.6

Sensing Mode (Detailed)

Reflective

Sensing Mode (General)

Opposed

Product series / family name

Fiber sensors

Length

6ft / 2m

Main function

Fiber sensor

Thread size

Equivalent to

PIAT46UHFTAVL

Sub-range name

Plastic fiber - Vantage Line

Diameter

1mm fiber core

Ambient air temperature for operation

+70 °C

Functions

Fiber optic sensor

Design

through-beam system / opposed mode flex strain relief pair of individual fibers Side / right-angled sensing

Material

Stainless steel sensing end Plastic fiber Polyethylene fiber sheath

Primary brand

Banner Engineering

Shape

Cylindrical (threaded) end tip

Order code / Manufacturer SKU

93160

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT46UHFTA-VL on Powermatic Associates is $141.00. Order now.

About the product

Banner Engineering PIAT46UHFTA-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor is part of the Plastic fiber series and operates effectively at an ambient air temperature of up to +70°C. It has a 1mm fiber core diameter and comes with a 6ft (approximately 2m) length. The design includes a cylindrical (threaded) end tip made of stainless steel, with the fiber itself being plastic and the sheath composed of Polyethylene (PE), ensuring compatibility with a variety of industrial environments.

PIAT46UHFTA-VL Related Documents

PIAT4 HIGH FLEX BEND RADIUS VL SERIES UNTERMINATED-1630954973878.stp PIAT4 HIGH FLEX BEND RADIUS VL SERIES UNTERMINATED-1630954973876.pdf
