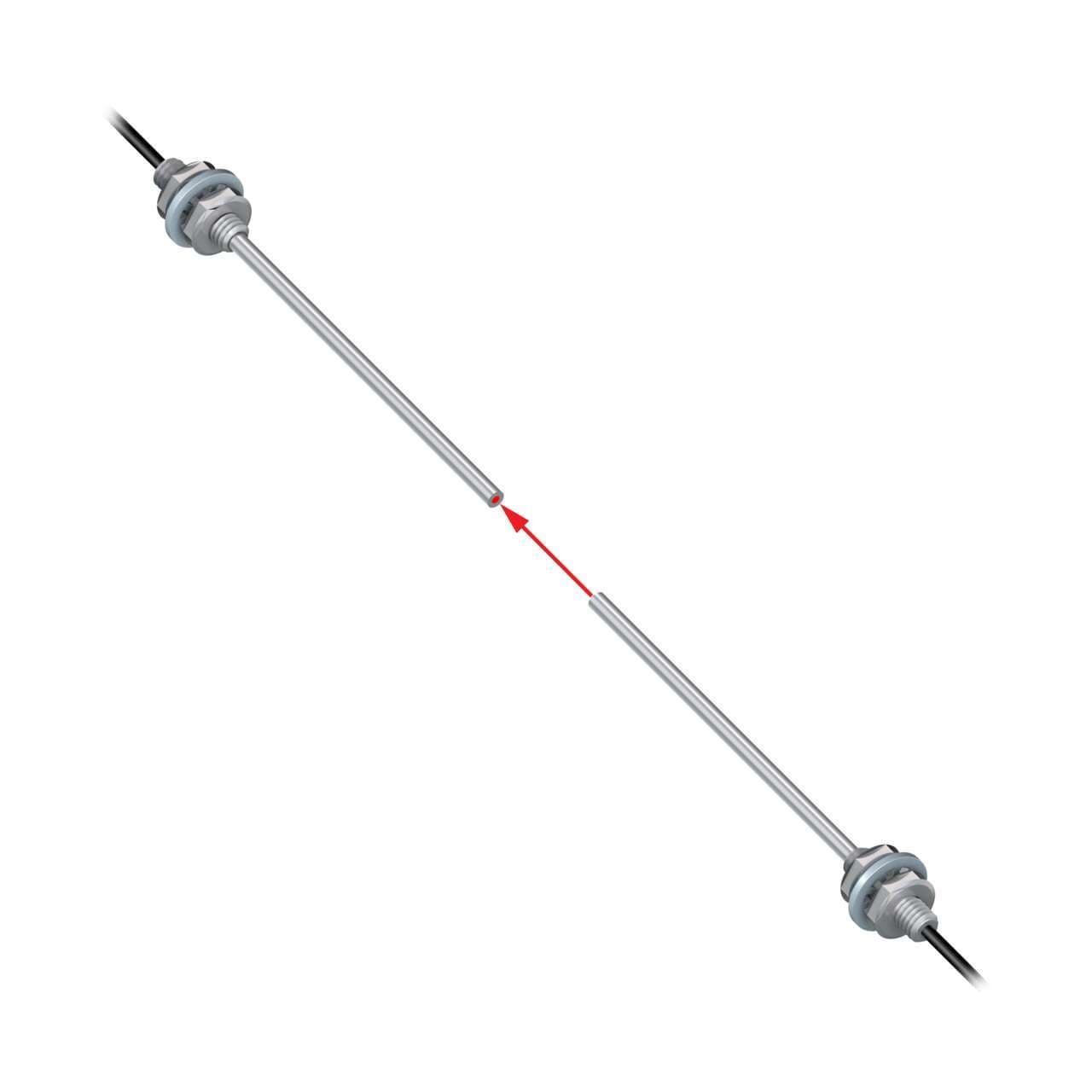

PIP46U Banner Through Beam Sensors
Part#:PIP46U
Alt. Part#:26083
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Probe; Free cut
Product Details
- Weight 53.070264 g
- Country Of Origin JP
- Sub-range name Plastic fiber series
- Main function Fiber sensor
- Functions Fiber optic sensor
- Primary brand Banner Engineering
- Design through-beam system / opposed mode Individual fiber
- Ambient air temperature for operation +70 °C
- Thread size M4
- Diameter 1.5mm (end) 1mm fiber core
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Product series / family name Fiber sensors
- Length 6ft / 2m
- Order code / Manufacturer SKU 26083
- Fiber Optic Type Plastic
- Sensing End Segment 2 Bendable-Probe
- Minimum Repeat Bending Endurance 10000
- Max Distance: DF-G1 (mm) No Data
- Sensing Mode (General) Opposed
- Fiber Length (m) 2
- Feature: Chemical Resistant No
- Measured Max Distance (mm) No Data
- Fiber Sensing End Tip Bendable-Probe
- Retractile No
- Tariff Fiber Meters (fbm) 4
- Sensing End Material (Specific) Stainless Steel
- Termination Free Cut
- Termination Type Plastic Fiber Sensors
- Fiber Sheathing Material (Jacket) Polyethylene
- Core Diameter (mm) 1
- Application: Vacuum Feed Through None
- Quantity Included 2
- Sensing End Segment 1 Thread
- Feature: Small Object Detection No
- Fiber Sensing End Size - Mounting Area M4
- Housing Style Round
- Fiber Sensing End Size 1.5 mm
- Feature: Extended Range No
- Max Distance: DF-G3 (mm) No Data
- Minimum Bend Radius (mm) 25
- Integrated Lens No
- Sensing Mode (Detailed) Reflective
- Beam Exit In-line
- Flex Relief No
- Application: Liquid Level No
- Max Temp ( °C) 70
- Max Distance: DF-G2 (mm) No Data
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIP46U on Powermatic Associates is $91.00. Order now.
About the product
Banner Engineering PIP46U is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode probe tip pair of individual fibers for in-line sensing. This sensor falls under the Plastic fiber series and is characterized by a 0.125mm fiber core diameter. It is equipped with a cylindrical (smooth) probe tip made of stainless steel, while the fiber itself is encased in a PVC fiber sheath. The total length of the sensor is 1.6ft or 487mm. It is designed to operate in ambient air temperatures up to +70°C.
