PIP46UHF Banner Through Beam Sensors

PIP46UHF on Powermatic Associates
Banner
  • PIP46UHF
  • PIP46UHF

Part#:PIP46UHF

Alt. Part#:51787

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

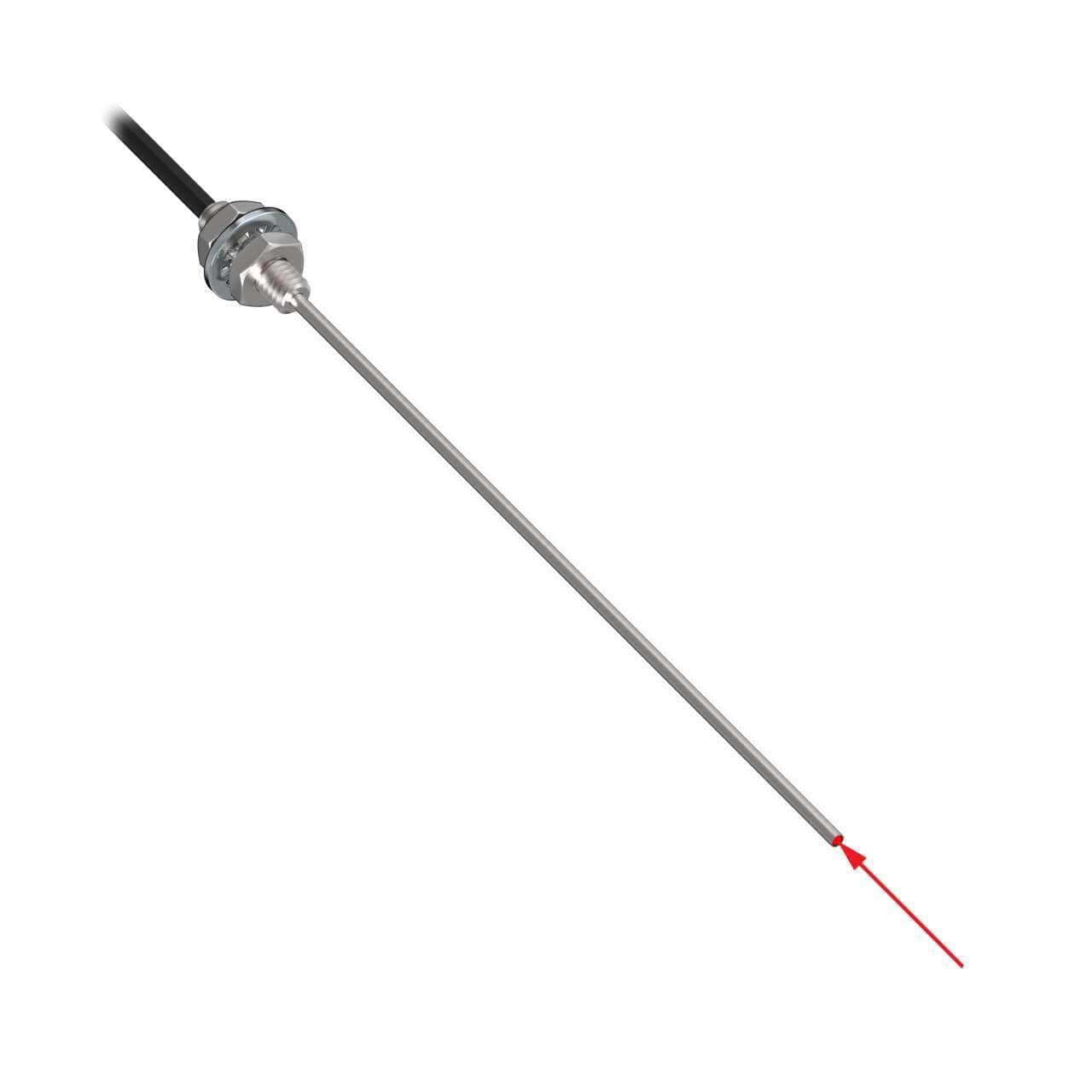

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Probe; DuraBend, Free cut

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    JP
  • Primary brand
    Banner Engineering
  • Main function
    Fiber sensor
  • Design
    through-beam system / opposed mode pair of individual fibers
  • Ambient air temperature for operation
    +70 °C
  • Diameter
    1.5mm (end) 1mm fiber core
  • Product series / family name
    Fiber sensors
  • Order code / Manufacturer SKU
    51787
  • Functions
    Fiber optic sensor
  • Thread size
    M4
  • Sub-range name
    Plastic fiber series
  • Length
    6ft / 2m
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Sensing Mode (General)
    Opposed
  • Flex Relief
    No
  • Feature: Small Object Detection
    No
  • Beam Exit
    In-line
  • Fiber Length (m)
    2
  • Termination
    Free Cut
  • Fiber Sensing End Size - Mounting Area
    M4
  • Sensing End Material (Specific)
    Stainless Steel
  • Fiber Sensing End Size
    1.5 mm
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Measured Max Distance (mm)
    No Data
  • Housing Style
    Round
  • Max Temp ( °C)
    70
  • Termination Type
    Plastic Fiber Sensors
  • Fiber Optic Type
    Plastic
  • Minimum Bend Radius (mm)
    2
  • Application: Vacuum Feed Through
    None
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Segment 2
    Bendable-Probe
  • Application: Liquid Level
    No
  • Max Distance: DF-G2 (mm)
    No Data
  • Sensing Mode (Detailed)
    Reflective
  • Retractile
    No
  • Feature: Extended Range
    No
  • Max Distance: DF-G1 (mm)
    No Data
  • Fiber Sensing End Tip
    Bendable-Probe
  • Sensing End Segment 1
    Thread
  • Minimum Repeat Bending Endurance
    1000
  • Tariff Fiber Meters (fbm)
    4
  • Quantity Included
    2
  • Core Diameter (mm)
    1
  • Max Distance: DF-G3 (mm)
    No Data

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIP46UHF on Powermatic Associates is $150.00. Order now.

About the product

Banner Engineering PIP46UHF is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode probe tip pair of individual fibers for in-line sensing. This sensor falls under the Plastic fiber series and is characterized by a 1.5mm fiber core diameter. It is equipped with a cylindrical (smooth) probe tip made of plastic, with both the sensing end and the fiber sheath constructed from Polyethylene (PE). The PIP46UHF has a total length of 40ft (12m) and is capable of operating in ambient air temperatures up to +70°C.
