PIRS1X1615UMP.75 Banner Through Beam Sensors

PIRS1X1615UMP.75 on Powermatic Associates
Banner
  • PIRS1X1615UMP.75
  • PIRS1X1615UMP.75

Part#:PIRS1X1615UMP.75

Alt. Part#:65890

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

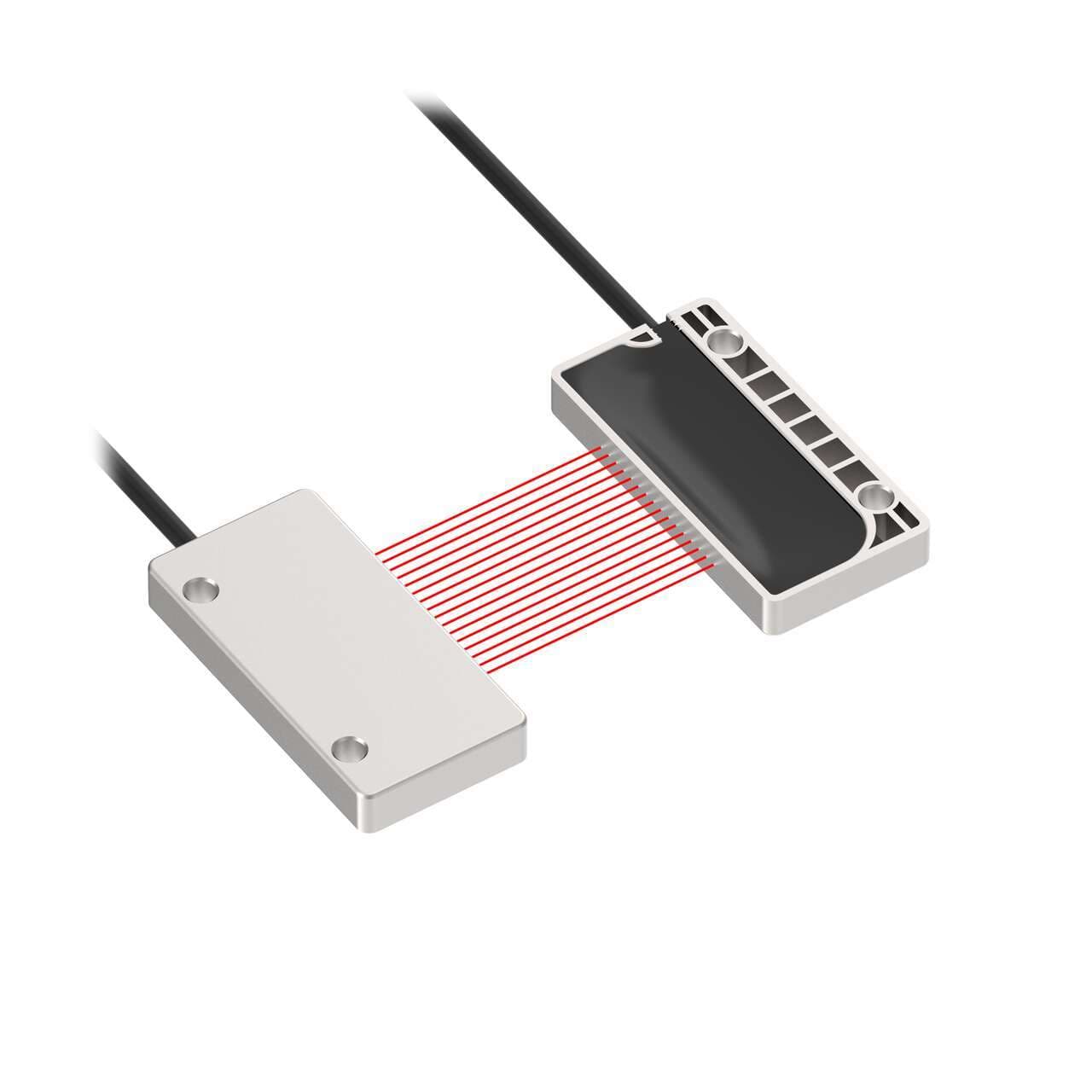

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 5 m; Rectangle, Sideview; Free cut

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    19.1 x 38.0 mm
  • Tariff Fiber Meters (fbm)
    160
  • Application: Vacuum Feed Through
    None
  • Termination Type
    Plastic Fiber Sensors
  • Application: Liquid Level
    No
  • Feature: Extended Range
    No
  • Feature: Small Object Detection
    Yes
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    70
  • Minimum Repeat Bending Endurance
    10000
  • Termination
    Free Cut
  • Minimum Bend Radius (mm)
    5
  • Core Diameter (mm)
    16 x 0.3
  • Flex Relief
    No
  • Fiber Length (m)
    4.572
  • Sensing End Segment 1
    Rectangle
  • Sensing End Segment 3
    Sideview
  • Fiber Sensing End Size
    19.1 x 38.0 mm
  • Array Length (mm)
    19.1
  • Retractile
    No
  • Sensing End Segment 2
    Array
  • Sensing End Material (Specific)
    Polyethylene
  • Fiber Sensing End Tip
    Sideview
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing Mode (Detailed)
    Array
  • Beam Exit
    Right Angle
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Plastic
  • Quantity Included
    2
  • Housing Style
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIRS1X1615UMP.75 on Powermatic Associates is $239.00. Order now.

About the product

Banner Engineering PIRS1X1615UMP.75 is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series, featuring a 0.25mm fiber core diameter. It is equipped with a plastic sensing end and a polyethylene (PE) fiber sheath, ensuring compatibility with various industrial environments. The sensor's shape is rectangular, and it has a total length of 15ft (5m), allowing for flexible installation options. It is designed to operate effectively in ambient air temperatures up to +70°C.
