PIRS1X166UMX1 Banner Through Beam Sensors

PIRS1X166UMX1 on Powermatic Associates
Banner

Part#:PIRS1X166UMX1

Alt. Part#:68627

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Rectangle, Sideview; Free cut

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    18.0 x 114.3 mm
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    64
  • Termination Type
    Plastic Fiber Sensors
  • Feature: Small Object Detection
    Yes
  • Feature: Extended Range
    No
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Minimum Repeat Bending Endurance
    10000
  • Integrated Lens
    No
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    70
  • Termination
    Free Cut
  • Retractile
    No
  • Array Length (mm)
    89
  • Sensing End Segment 2
    Sideview
  • Flex Relief
    No
  • Minimum Bend Radius (mm)
    5
  • Core Diameter (mm)
    16 x 0.3
  • Fiber Sensing End Size
    18.0 x 114.3 mm
  • Fiber Sensing End Tip
    Sideview
  • Quantity Included
    2
  • Housing Style
    Rectangular
  • Sensing End Segment 1
    Array
  • Fiber Length (m)
    2
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Beam Exit
    Right Angle
  • Sensing End Material (Specific)
    Aluminum
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Plastic
  • Sensing Mode (Detailed)
    Array

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIRS1X166UMX1 on Powermatic Associates is $342.00. Order now.

About the product

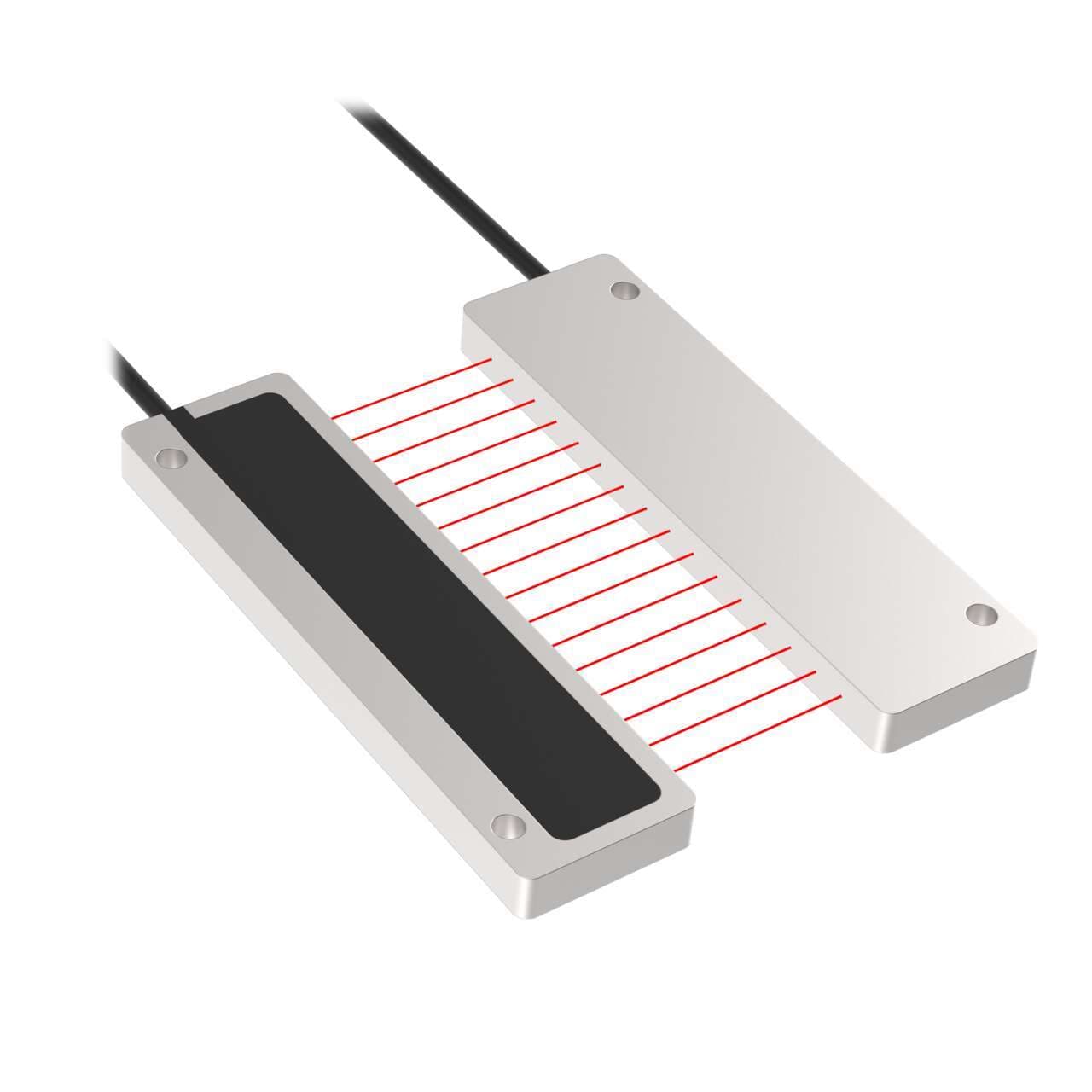

Banner Engineering PIRS1X166UMX1 is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers with side/right-angled sensing. It features a 0.25mm fiber core diameter and is part of the Plastic fiber series. The sensor has a rectangular shape with a zinc alloy sensing end and a polyethylene (PE) fiber sheath. It is built to operate in ambient air temperatures up to +70°C. The fibers have a length of 6ft / 2m, accommodating various installation requirements.

PIRS1X166UMX1 Related Documents

PIRS1 MX SERIES UNTERMINATED-1630954978392.stpPIRS1 MX SERIES UNTERMINATED-1630954978389.pdf
