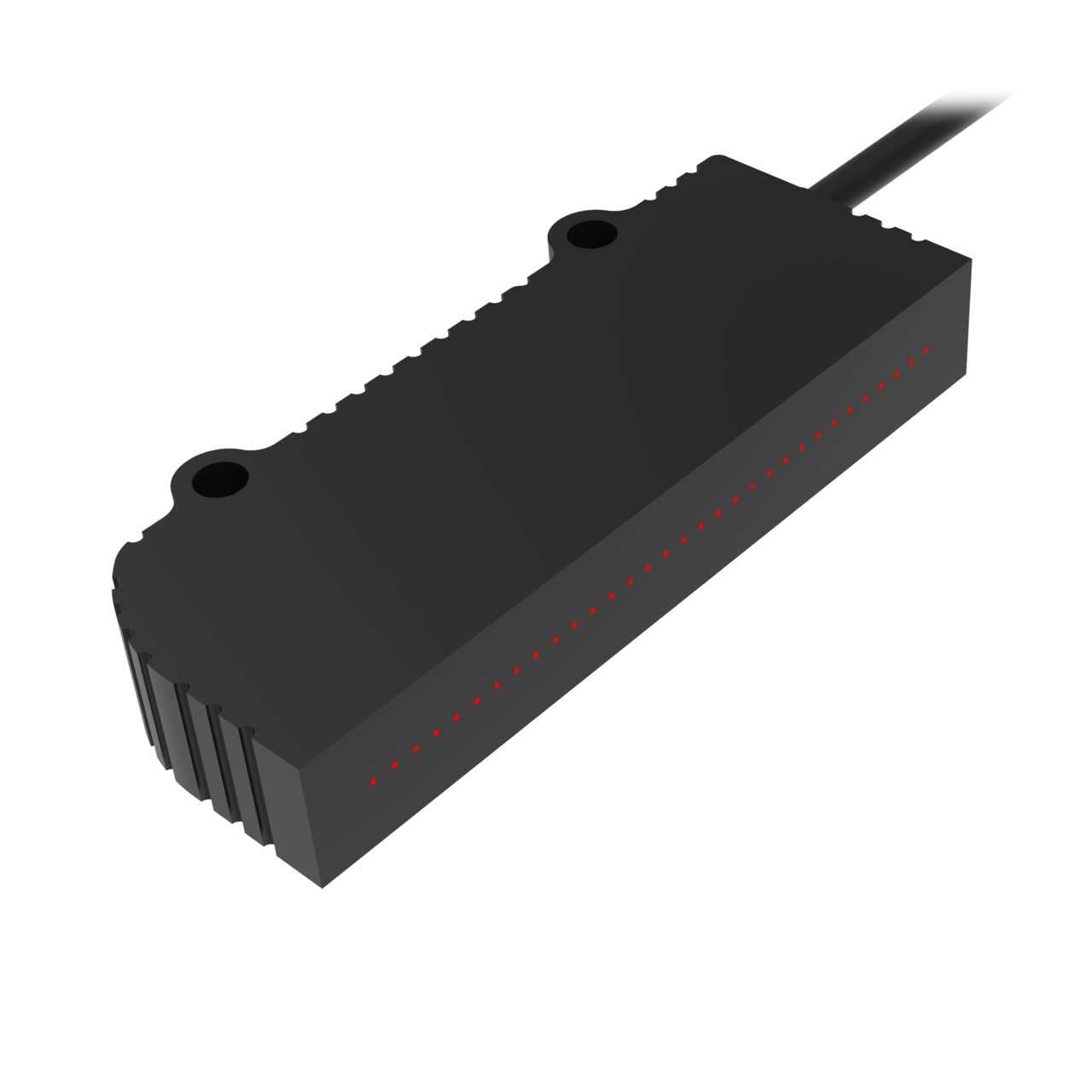

PIRS1X3215T5AL47 Banner Through Beam Sensors

Product Details

• Weight
  86.18248 g
• Country Of Origin
  TW
• Tariff Fiber Meters (fbm)
  160
• Fiber Sensing End Size - Mounting Area
  20.2 x 55.2 mm
• Termination Type
  Plastic Fiber Sensors
• Feature: Extended Range
  No
• Max Distance: DF-G1 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Small Object Detection
  Yes
• Feature: Chemical Resistant
  No
• Minimum Bend Radius (mm)
  60
• Integrated Lens
  No
• Minimum Repeat Bending Endurance
  1000
• Max Temp ( °C)
  70
• Termination
  Terminated
• Core Diameter (mm)
  32 x 0.3
Flex Relief
No
Retractile
No
Array Length (mm)
46.5
Fiber Sensing End Size
20.2 x 55.2 mm
Sensing End Segment 2
Sideview
Sensing End Segment 1
Rectangle
Sensing End Segment 3
Array
Fiber Length (m)
5
Fiber Sensing End Tip
Array
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing End Material (Specific)
Polyethylene
Sensing Mode (Detailed)
Array
Beam Exit
Right Angle
Sensing Mode (General)
Opposed
Fiber Optic Type
Plastic
Quantity Included
2
Housing Style
Rectangular
Product series / family name
Fiber sensors
Design
through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
Material
Plastic sensing end Plastic fiber Polyethylene fiber sheath
Main function
Fiber sensor
Diameter
0.25mm fiber core
Ambient air temperature for operation
+70 °C
Sub-range name
Plastic fiber series
Shape
Rectangular
Order code / Manufacturer SKU
801971
Primary brand
Banner Engineering
Functions
Fiber optic sensor
Length
15ft / 5m
Dimensions
55x20mm sensing area
