PIT46TMB5 Banner Through Beam Sensors
Part#:PIT46TMB5
Alt. Part#:70767
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description

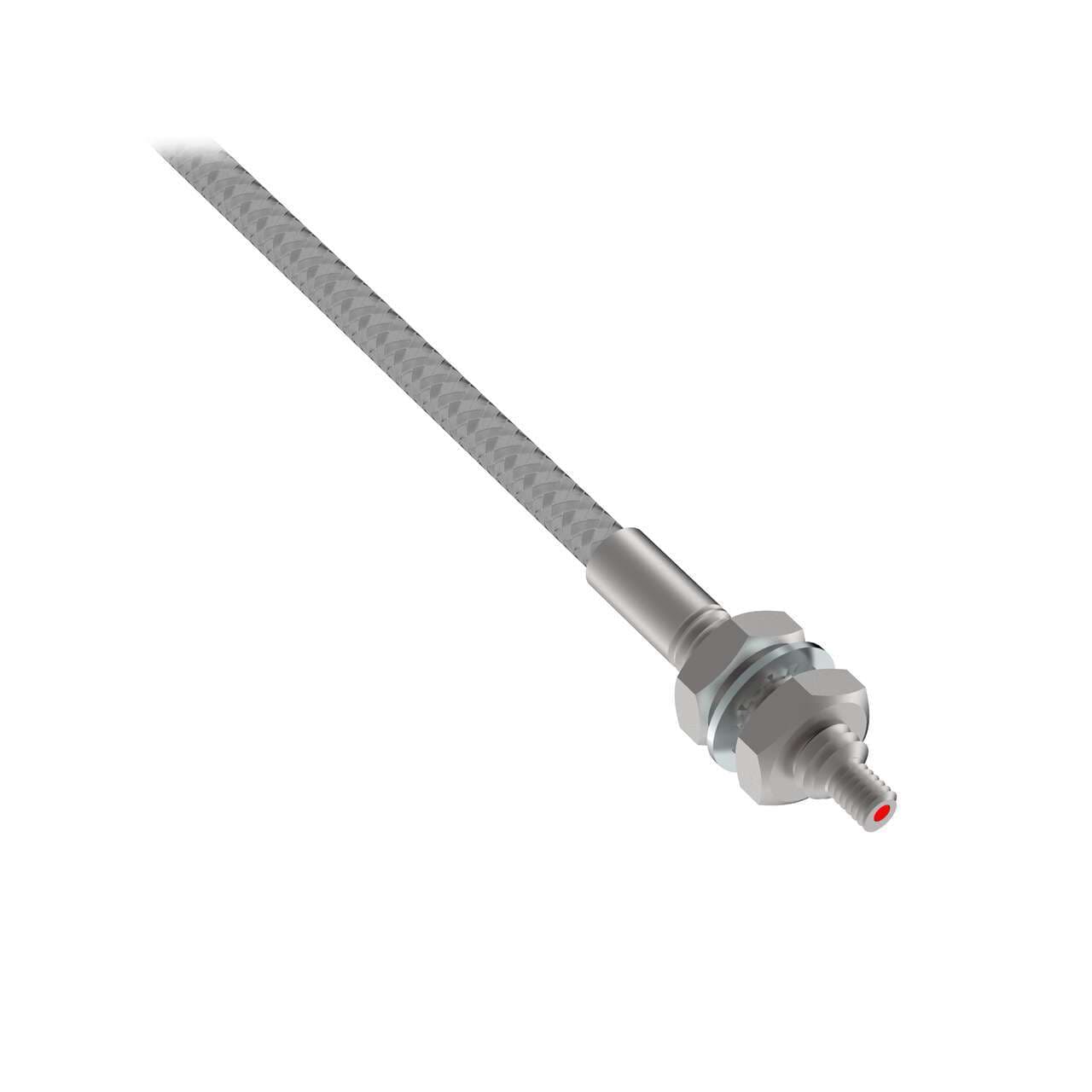

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Thread; SteelSkin, TMB5 Termination
Product Details
- Weight 90.7184 g
- Country Of Origin JP
- Sensing Mode (General) Opposed
- Fiber Sensing End Size M2.5
- Termination Type Plastic Fiber Sensors
- Max Range: DF-G3 (mm) >3m - <=5m
- Fiber Sensing End Tip Thread
- Minimum Bend Radius (mm) 12
- Feature: Small Object Detection No
- Beam Exit In-line
- Sensing End Segment 3 Thread
- Max Temp ( °C) 70
- Tariff Fiber Meters (fbm) 4
- Fiber Sheathing Material (Jacket) STEELSKIN
- Flex Relief No
- Feature: Chemical Resistant No
- Max Distance: DF-G3 (mm) 3603
- Fiber Optic Type Plastic
- Fiber Length (m) 2
- Termination Terminated
- Sensing Mode (Detailed) Reflective
- Housing Style Round
- Core Diameter (mm) 1
- Feature: Extended Range No
- Max Distance: DF-G1 (mm) 464
- Quantity Included 2
- Sensing End Segment 2 Thread
- Minimum Repeat Bending Endurance 1000
- Sensing End Material (Specific) Stainless Steel
- Sensing End Segment 1 Ferrule
- Fiber Sensing End Size - Mounting Area M4
- Retractile No
- Application: Liquid Level No
- Integrated Lens No
- Measured Max Distance (mm) 464
- Application: Vacuum Feed Through None
- Max Distance: DF-G2 (mm) 751
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT46TMB5 on Powermatic Associates is $341.00. Order now.
About the product
Banner Engineering PIT46TMB5 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber (Vantage Line) series, characterized by a 1mm fiber core diameter and a 6ft (approximately 2m) length. The design incorporates a cylindrical (threaded) end tip, constructed from plastic fiber with a stainless steel fiber sheath for enhanced durability. It is engineered to operate effectively in ambient air temperatures up to +70°C.
