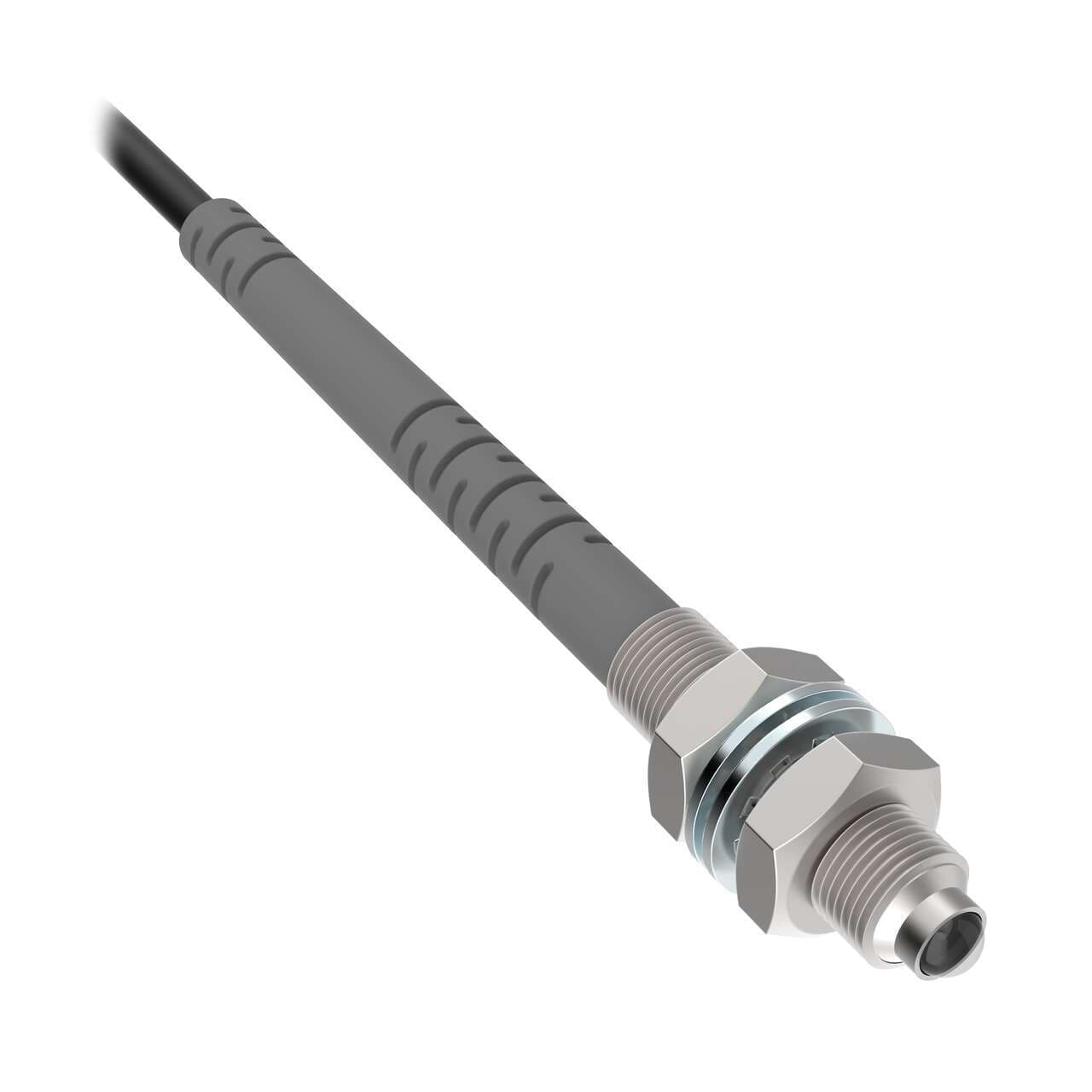

PITL26UM6-VL Banner Through Beam Sensors
Part#:PITL26UM6-VL
Alt. Part#:802116
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber; Opposed Mode Pair; Core Dia.: 0.5 mm; Fiber Length 2 m; Stainless Thread M6 With integrated Lens, 20 mm spot size at 100 mm range; Flex Relief, Free cut, Vantage Line
Product Details
- Weight 31.75144 g
- Country Of Origin TW
- Main function Fiber sensor
- Product series / family name Fiber sensors
- Primary brand Banner Engineering
- Shape Cylindrical (threaded) end tip
- Thread size M6
- Ambient air temperature for operation +70 °C
- Functions Fiber optic sensor
- Diameter 0.5mm fiber core
- Design through-beam system / opposed mode flex strain relief end tip lns. pair of individual fibers In-line sensing
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Equivalent to PITL26UM6VL
- Length 6ft / 2m
- Order code / Manufacturer SKU 802116
- Sub-range name Plastic fiber - Vantage Line
- Fiber Length (m) 2
- Fiber Optic Type Plastic
- Sensing End Material (Specific) Stainless Steel
- Retractile No
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Sensing End Segment 1 Thread
- Sensing Mode (Detailed) Reflective
- Fiber Sensing End Size M6
- Integrated Lens Yes
- Quantity Included 2
- Minimum Bend Radius (mm) 15
- Beam Exit In-line
- Core Diameter (mm) 0.5
- Feature: Small Object Detection No
- Housing Style Round
- Max Temp ( °C) 70
- Fiber Sheathing Material (Jacket) Polyethylene
- Flex Relief Yes
- Feature: Extended Range Yes
- Fiber Sensing End Tip Lens
- Termination Free Cut
- Application: Liquid Level No
- Sensing End Segment 2 Lens
- Fiber Sensing End Size - Mounting Area M6
- Tariff Fiber Meters (fbm) 4
- Max Distance: DF-G1 (mm) No Data
- Minimum Repeat Bending Endurance 1000
- Max Distance: DF-G2 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Measured Max Distance (mm) No Data
- Application: Vacuum Feed Through None
- Termination Type Plastic Fiber Sensors
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PITL26UM6-VL on Powermatic Associates is $70.00. Order now.
About the product
Banner Engineering PITL26UM6-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief end tip. This sensor is part of the Plastic fiber series and operates effectively at an ambient air temperature of up to +70°C. It is equipped with a 0.5mm fiber core diameter and has a length of 6ft / 2m. The design incorporates a cylindrical (threaded) probe tip made of stainless steel, with the fiber itself being plastic and the sheath composed of Polyethylene (PE), ensuring compatibility with a variety of installation environments. The sensor facilitates side / right-angled sensing, making it versatile for different alignment and detection requirements.
