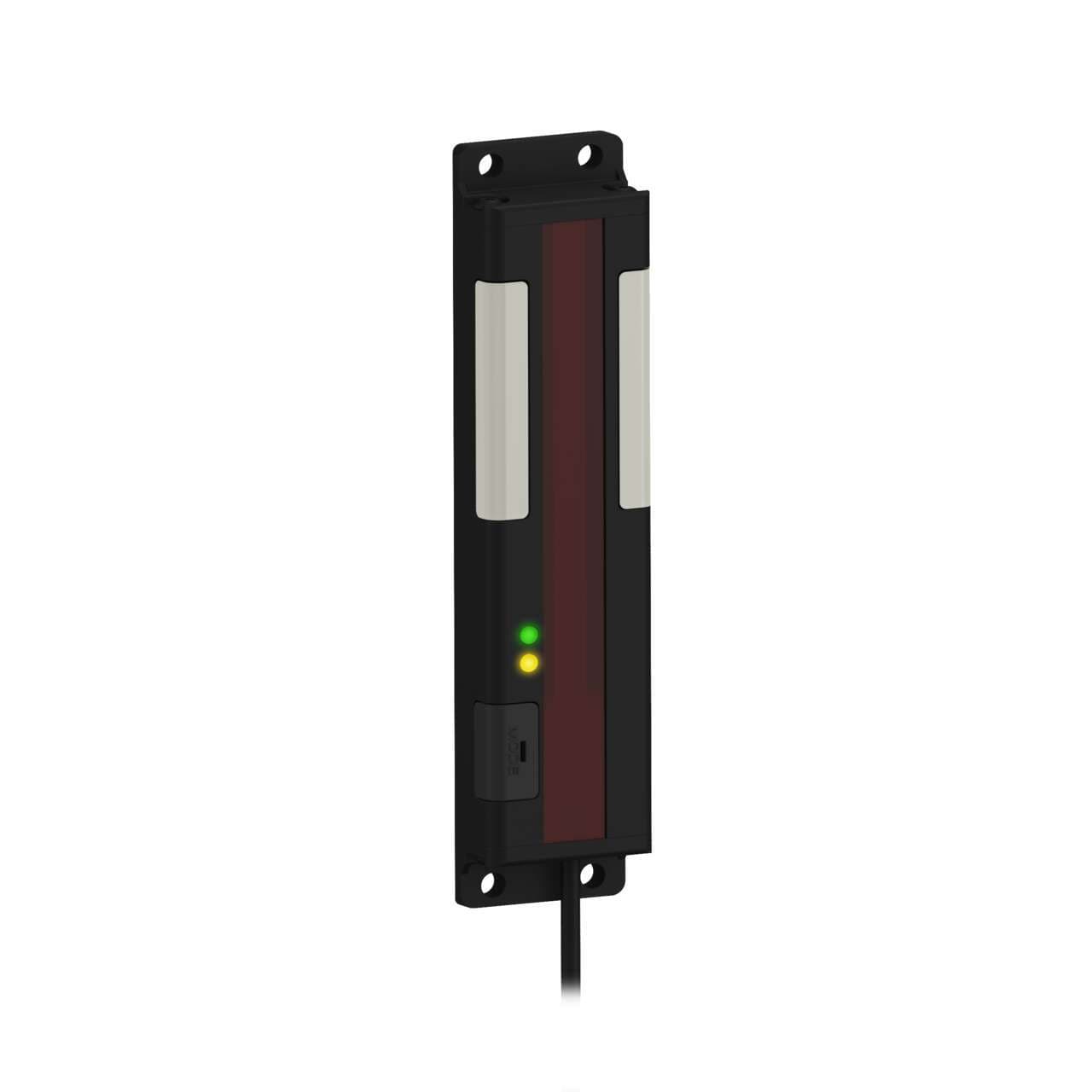

PVA100N6E Banner Optical Sensors

Product Details

• Weight
  222.3507984 g
• Country Of Origin
  MX
• Primary brand
  Banner Engineering
• Product series / family name
  PVA
• Functions
  Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
• Degree of protection
  IP62 NEMA 2
• Supply voltage
  (DC) 12-30 V
• Length (mm)
  (array) 100 mm
• Frame color
  Black
• Compliant with standard(s)
  CE cULus Listed
• Visual position indicator
  green LED (power ON) red LED (frequency selected)
• Distance
  (beam spacing) 25mm
• Supply voltage (DC)
  12-30Vdc (12Vdc-24Vdc nom.)
• Connection type
  Pre-wired bare end flying leads
• Ambient air temperature for operation
  0...+50 °C
• Main function
  Sensor (Array)
• Digital outputs
  4 x digital outputs (12-30Vdc; NPN)
• Sensing distance
  2m / 2000 mm
• Mounting mode
  Surface Pole
• Technology used in component
  LED
Order code / Manufacturer SKU
51925
Net Height (mm)
(sensing height) 6.5" / 100 mm
Material
Acrylic Clear (window) Aluminum (housing)
Current consumption
62mA / 0.062 A
Light Color
Green
Length (m)
(cable) 2 m
Maximum temperature
50 °C
Cable Length (m)
0.5
Mounting Thread
No Thread
Number of Input Pins/Conductors
4
Beam Spacing (mm)
25.0
Feature: Chemical Resistant
No
Power Source
DC
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Supply Voltage
12-30 V dc
NEMA Type and UL Type Rating
NEMA 2
IO Link
No
Primary Housing Material
Aluminum
Color Option 1
Green
Physical Dimensions (LxWxH or DxH mm)
137.8 x 30.0 x 15.0
Feature: Audible
No
Sensing Mode (General)
Opposed
Number of Colors / Segments
1
Input Type
Bimodal (PNP/NPN)
Environmental Rating
IP62
Modbus RTU
No
Activation Function
Optical
Connection
Cable
Sensing Array Length (mm)
100
Button Operation
Momentary
Pro-Editor Compatible (Discrete)
No
Sensing Resolution (mm)
35.0
Job Light
Green
Sensing Mode (Detailed)
Emitter
Animation Option 1
Dip-Switch Controlled
Number of Beams
5
Primary Window Material
Acrylic Clear
Actuation
Yes
Product Size (mm)
Other
Max Output Response Time (ms)
20
Primary Housing Color
Black
Wireless
No
Housing Style
Flat Mount - Array
Color Technology
Standard LED
Maximum Sensing Distance (mm)
2000
Max Op. Temperature (°C)
50
Power
DC
Max Current Color (mA)
62
Array Length (mm)
100.0
Feature: Hazardous Area
No
Feature: Quick Disconnect
No
