PVA100P6 Banner Optical Sensors

PVA100P6 on Powermatic Associates
Banner
  • PVA100P6
  • PVA100P6

Part#:PVA100P6

Alt. Part#:52901

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

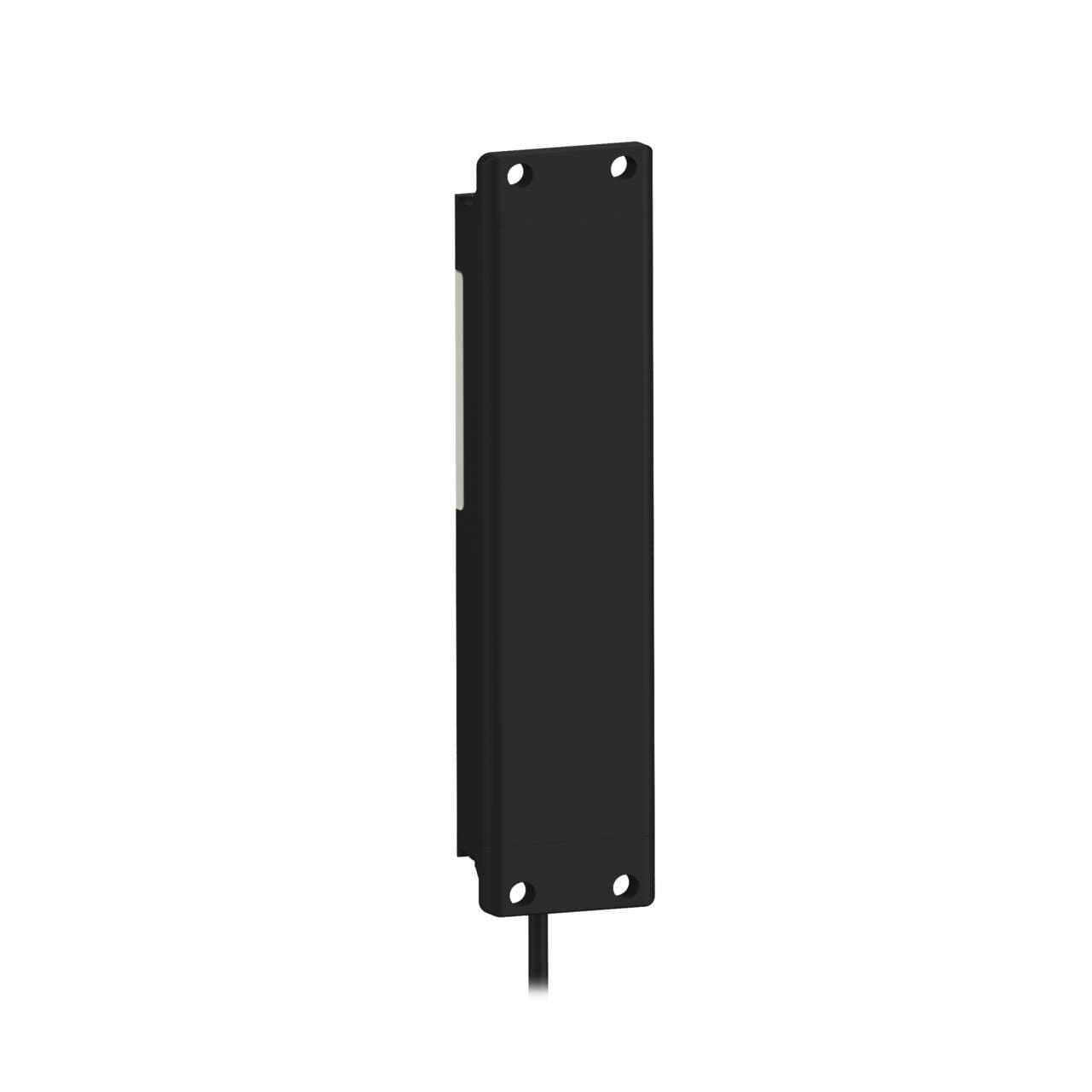

PVA Series: 100 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 PNP (on receiver); 2 m (6.5 ft) Integral Cables

Product Details

  • Weight
    476.2716 g
  • Country Of Origin
    US
  • Mounting Thread
    No Thread
  • Max Output Response Time (ms)
    20
  • Primary Housing Color
    Black
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Input Pins/Conductors
    4
  • Cable Length (m)
    2
  • Operation
    Normally Open/Normally Closed
  • Number of Beams
    5
  • Feature: Audible
    No
  • Activation Function
    Optical
  • Color Option 1
    Green
  • Actuation
    Yes
  • Animation Option 1
    Dip-Switch Controlled
  • Supply Voltage
    12-30 V dc
  • NEMA Type and UL Type Rating
    NEMA 2
  • Power
    DC
  • IO Link
    No
  • Primary Housing Material
    Aluminum
  • Color Technology
    Standard LED
  • Sensing Array Length (mm)
    100
  • Button Operation
    Momentary
  • Sensing Mode (General)
    Opposed
  • Max Current Color (mA)
    62
  • Housing Style
    Flat Mount - Array
  • Product Size (mm)
    Other
  • Array Length (mm)
    100.0
  • Environmental Rating
    IP62
  • Wireless
    No
  • Feature: Quick Disconnect
    No
  • Job Light
    Green
  • Beam Spacing (mm)
    25.0
  • Pro-Editor Compatible (Discrete)
    No
  • Number of Colors / Segments
    1
  • Output Type
    PNP
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • Connection
    Cable
  • Maximum Sensing Distance (mm)
    2000
  • Sensing Resolution (mm)
    35.0
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Input Type
    Bimodal (PNP/NPN)
  • Feature: Hazardous Area
    No
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Primary Window Material
    Acrylic Clear

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVA100P6 on Powermatic Associates is $611.00. Order now.

About the product

Banner Engineering PVA100P6 is a photo-electric array sensor designed for a variety of applications. This sensor operates within an ambient air temperature of up to +50°C and is housed in an aluminium casing with an acrylic window for durability. It features a pre-wired 2m cable with bare end flying leads for connectivity and is designed with a rectangular shape measuring 15mm in height, 30mm in width, and 138mm in depth. The PVA100P6 offers a sensing distance of up to 2m (2000mm) with a green light source and a 25mm beam spacing/pitch. It is equipped with one digital output (PNP transistor) and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The sensor's current consumption is 62mA (0.062 A), and it is protected to IP62 NEMA 2 standards, indicating a certain level of dust and water resistance.

PVA100P6 Related Documents

52088.pdf
