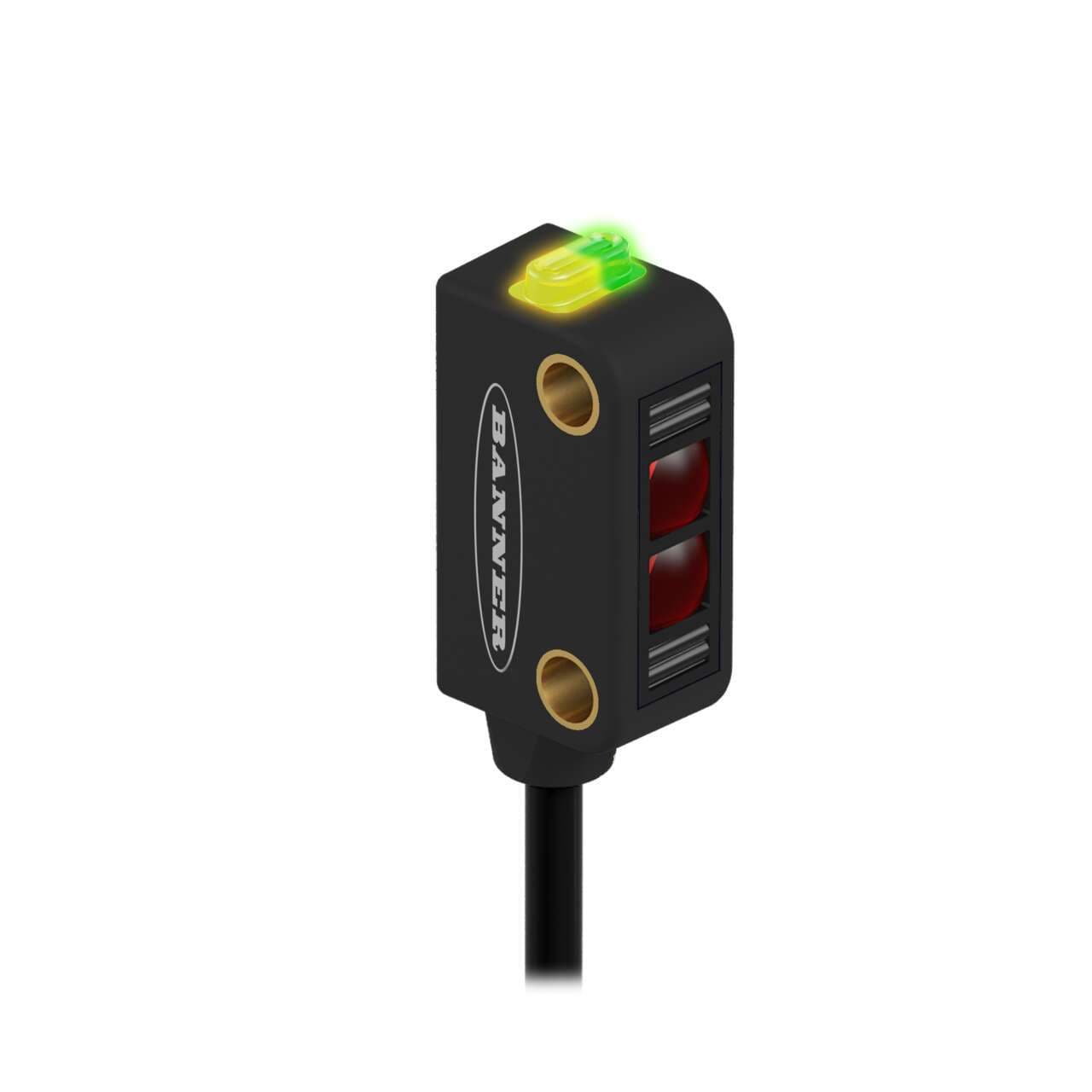

Q12AB6FF30Q Banner Proximity Sensors
Part#:Q12AB6FF30Q
Alt. Part#:72111
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q12 Series: Fixed-Field; Range: 30 mm Cutoff; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar; 1 NPN; 1 PNP; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 18.14368 g
- Country Of Origin MX
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Compliant with standard(s) cURus CE
- Product series / family name WORLD-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Response time 0.7ms / 0.0007 s
- Design background suppression system
- Main function Sensor (Photo-electric)
- Wavelength 640 nm
- Ambient air temperature for operation -20...+55 °C
- Order code / Manufacturer SKU 72111
- Operating mode Light-ON
- Material thermoplastic housing Polycarbonate lns.
- Light Color Visible red
- Sub-range name Q12 series
- Sensing distance 30mm
- Degree of protection IP67
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Small Visible Spot LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Feature: Encapsulated No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Pigtail QD
- Repeatability (µs) 175
- Lens Material Polycarbonate
- IO Link No
- Feature: Audible No
- Max Sensing Distance (mm) 30
- Cable Length (m) 0.15
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Operation Light Operate
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Input/Output Discrete
- Max Op. Temp. (°C) 55
- Max Op. Relative Humidity [%] 95% @ 50°C
- Power DC
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 120
- Barrel Diameter (mm) N/A
- Sensing Mode (General) Proximity
- Output response time (ms) 0.85 ON/OFF
- IP Rating IP67
- Feature: Hazardous Area No
- Outputs Bipolar (NPN & PNP)
- Sensing Beam Visible Red LED
- Sensing Beam Wavelength 640
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12AB6FF30Q on Powermatic Associates is $112.00. Order now.
About the product
Banner Engineering Q12AB6FF30Q is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55°C and is housed in a thermoplastic casing with a polycarbonate lens. This sensor is part of the Q12 series and features a pre-wired 6-inch (150mm) pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. It offers a degree of protection rated at IP67, making it suitable for various industrial environments. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for easy installation, and it has a sensing distance of 30mm. The sensor emits visible red light with a wavelength of 640 nm and operates in a Light-ON mode. It includes 1 x digital output (PNP/NPN transistor) and boasts a rapid response time of 0.7ms (0.0007 seconds).
