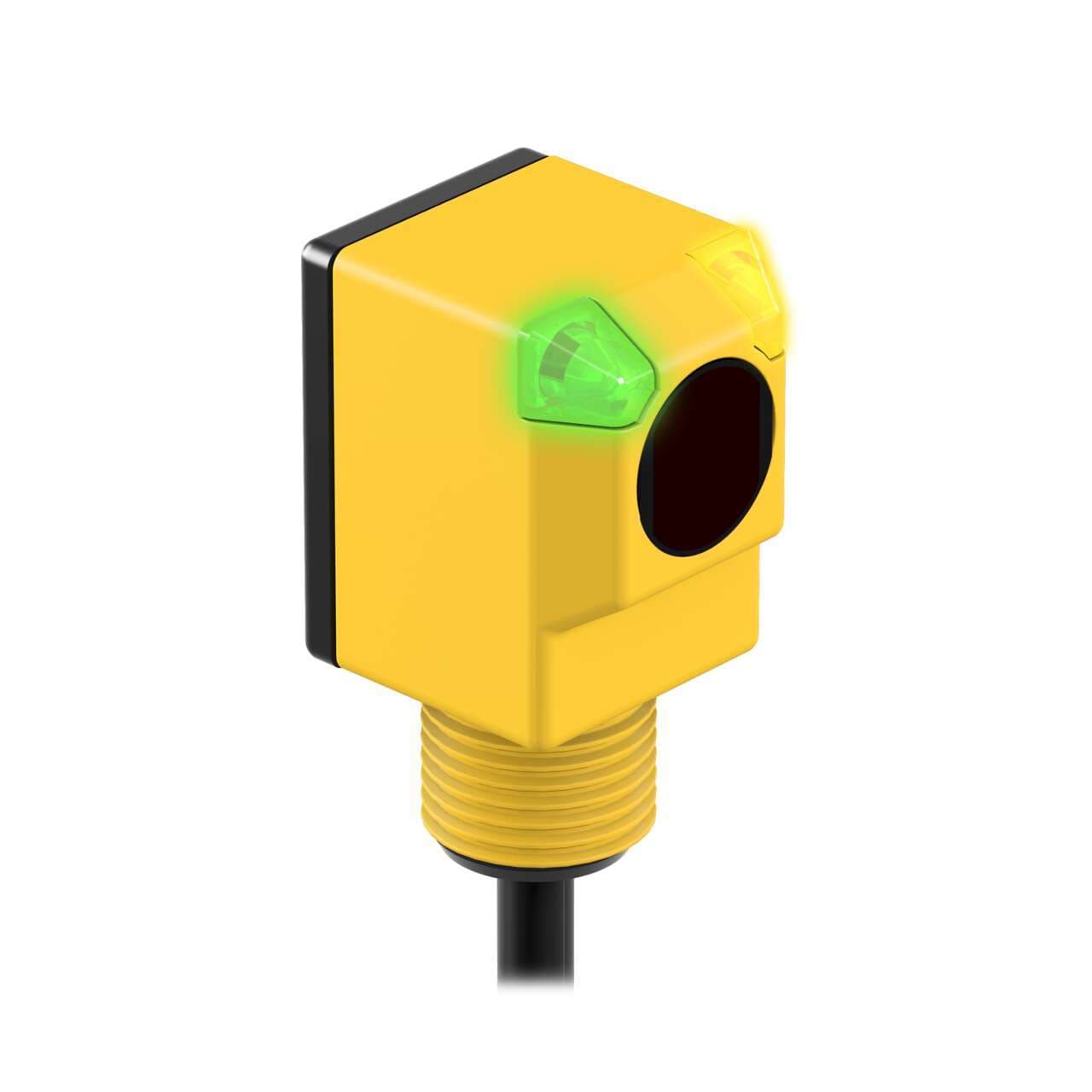

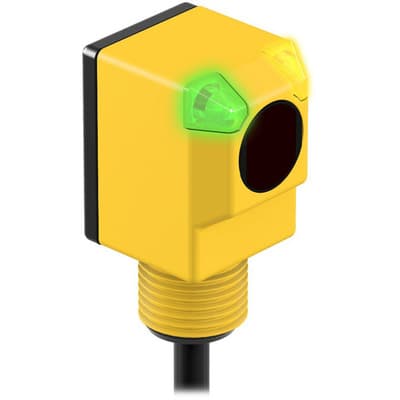

Q253E Banner Proximity Sensors

Product Details

• Weight
  147.4174 g
• Country Of Origin
  US
• Supply voltage (AC)
  20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Response time
  16ms / 0.016 s
• Shape
  Rectangular
• Product series / family name
  EZ-BEAM series
• Functions
  Photo-electric emitter green LED (power ON) amber LED (output state)
• Degree of protection
  IP67 NEMA 6P
• Order code / Manufacturer SKU
  31966
• Sub-range name
  Q25 AC series
• Wavelength
  950 nm
• Compliant with standard(s)
  cULus CCC cCSAus CE
• Main function
  Sensor (Photo-electric)
• Light Color
  Infrared (IR)
• Material
  thermoplastic housing Polycarbonate lns.
• Primary brand
  Banner Engineering
• Design
  through-beam system / opposed mode
• Thread size
  M18
• Ambient air temperature for operation
  -40...+70 °C
Housing Style
Rectangular
Output response time (ms)
16 ON/8 OFF
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Encapsulated
Yes
Feature: Chemical Resistant
Yes
Outputs
N/A
Special Feature: Water Detection
No
Opposed Mode Emitter/Receiver
Emitter
Max Sensing Distance (mm)
20000
Min Op. Temp. (°C)
-40
Delay at Power-up (ms)
100
Barrel Diameter (mm)
18
DeviceNet
No
Sensing Mode (General)
Opposed
Operation
N/A
IP Rating
IP69
Feature: Washdown Rated
Yes
IO Link
No
Primary Housing Material
Thermoplastic
Quick Disconnect Type
No QD
NEMA Rating
NEMA 6P
Feature: Ecolab Certified
Yes
Sensing Mode (Detailed)
Emitter
Connection
Cable
Special Feature: Remote Teach
No
Adjustments
N/A
Feature: Hazardous Area
No
Cable Length (m)
2
Power Supply/Supply Voltage
20-250 V ac
Repeatability (µs)
2000
Indicator
LEDs
Sensing Beam
Infrared LED
Special Feature: Intrinsically Safe
No
Number of Pins
2
Feature: Timing (Hold/Delay)
No
Power
AC
Max Op. Temp. (°C)
70
Lens Material
Polycarbonate
Feature: Audible
No
