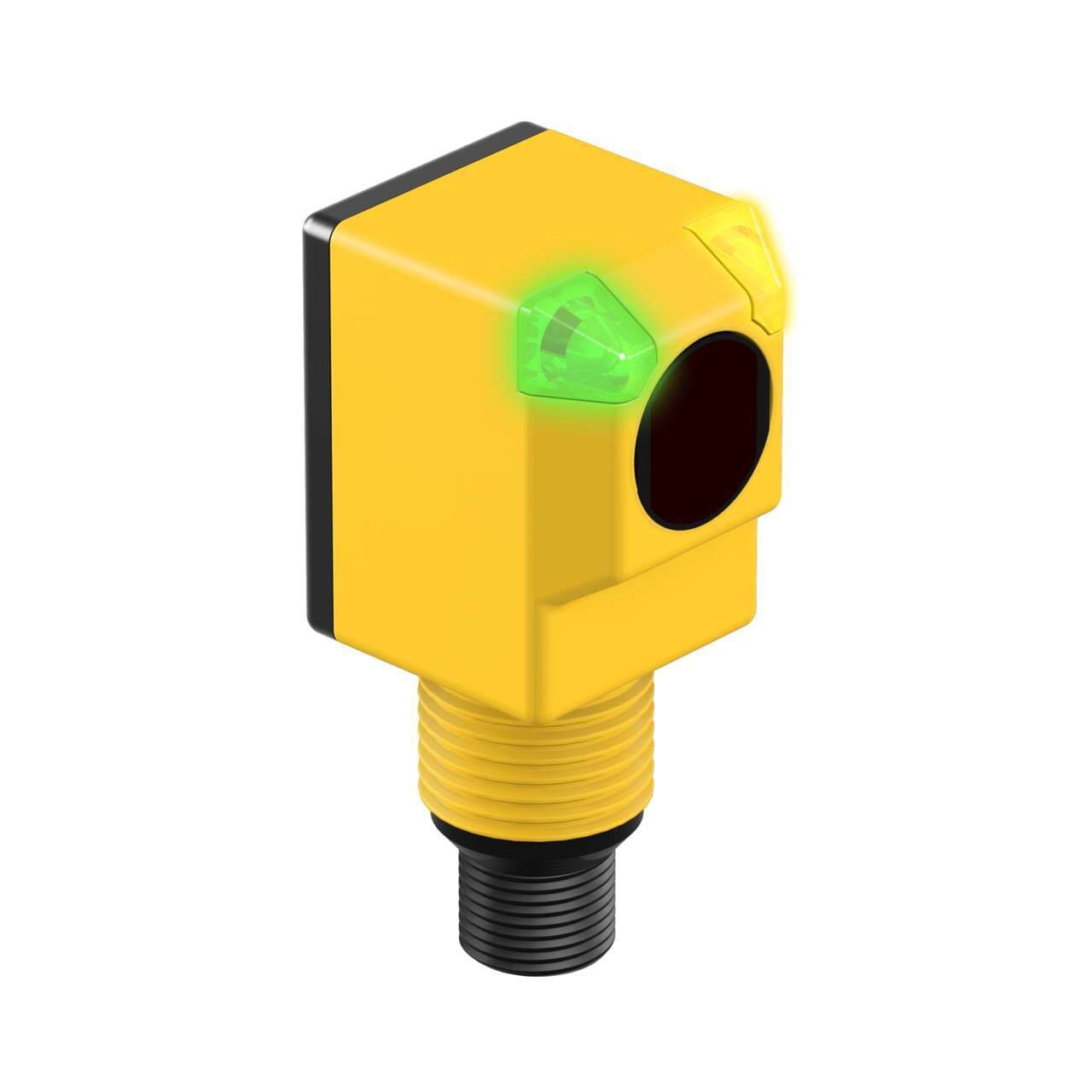

Q25SP6LPQ Banner Proximity Sensors

Product Details

• Weight
  49.89512 g
• Country Of Origin
  US
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Thread size
  M18
• Order code / Manufacturer SKU
  31934
• Main function
  Sensor (Photo-electric)
• Functions
  Polarized photo-electric sensor green LED (power ON) amber LED (output state)
• Wavelength
  680 nm
• Product series / family name
  EZ-BEAM series
• Design
  retro-reflective mode
• Shape
  Rectangular
• Digital outputs
  1 x digital output (PNP transistor)
• Material
  thermoplastic housing Acrylic lns.
• Sub-range name
  Q25 DC series
• Light Color
  Visible red
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Compliant with standard(s)
  cULus cCSAus CE
• Primary brand
  Banner Engineering
• Sensing distance
  2m
• Response time
  3ms / 0.003 s
Operating mode
Light-ON Dark-ON
Degree of protection
IP69K NEMA 6P
Ambient air temperature for operation
-40...+70 °C
Input/Output
Discrete
Min Op. Temp. (°C)
-40
IP Rating
IP69
Power
DC
Operation
Light/Dark Operate
Special Feature: Water Detection
No
Feature: Chemical Resistant
Yes
Sensing Beam
Visible Red LED
Power Supply/Supply Voltage
10-30 V dc
Repeatability (µs)
750
Max Sensing Distance (mm)
2000
Output response time (ms)
3
Lens Material
Acrylic
Sensing Mode (Detailed)
Polarized
Special Feature: Intrinsically Safe
No
Adjustments
N/A
Housing Style
Rectangular
Connection
Integral QD
Number of Pins
4
IO Link
No
Primary Housing Material
Thermoplastic
Max Op. Temp. (°C)
70
Max Op. Relative Humidity [%]
90% @ 50°C
Sensing Mode (General)
Retroreflective
Quick Disconnect Type
M12 (Euro)
Delay at Power-up (ms)
100
Outputs
PNP
Special Feature: Remote Teach
No
NEMA Rating
NEMA 6P
Feature: Timing (Hold/Delay)
No
Feature: Hazardous Area
No
Feature: Encapsulated
Yes
Opposed Mode Emitter/Receiver
N/A
Feature: Audible
No
Indicator
LEDs
Feature: Washdown Rated
Yes
Barrel Diameter (mm)
18
Feature: Ecolab Certified
Yes
Feature: Health/ Marginal Signal Output
Yes
DeviceNet
No
