Q40RW3R W/30 Banner Electronic Components

Q40RW3R W/30 on Powermatic Associates
Banner

Part#:Q40RW3R W/30

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

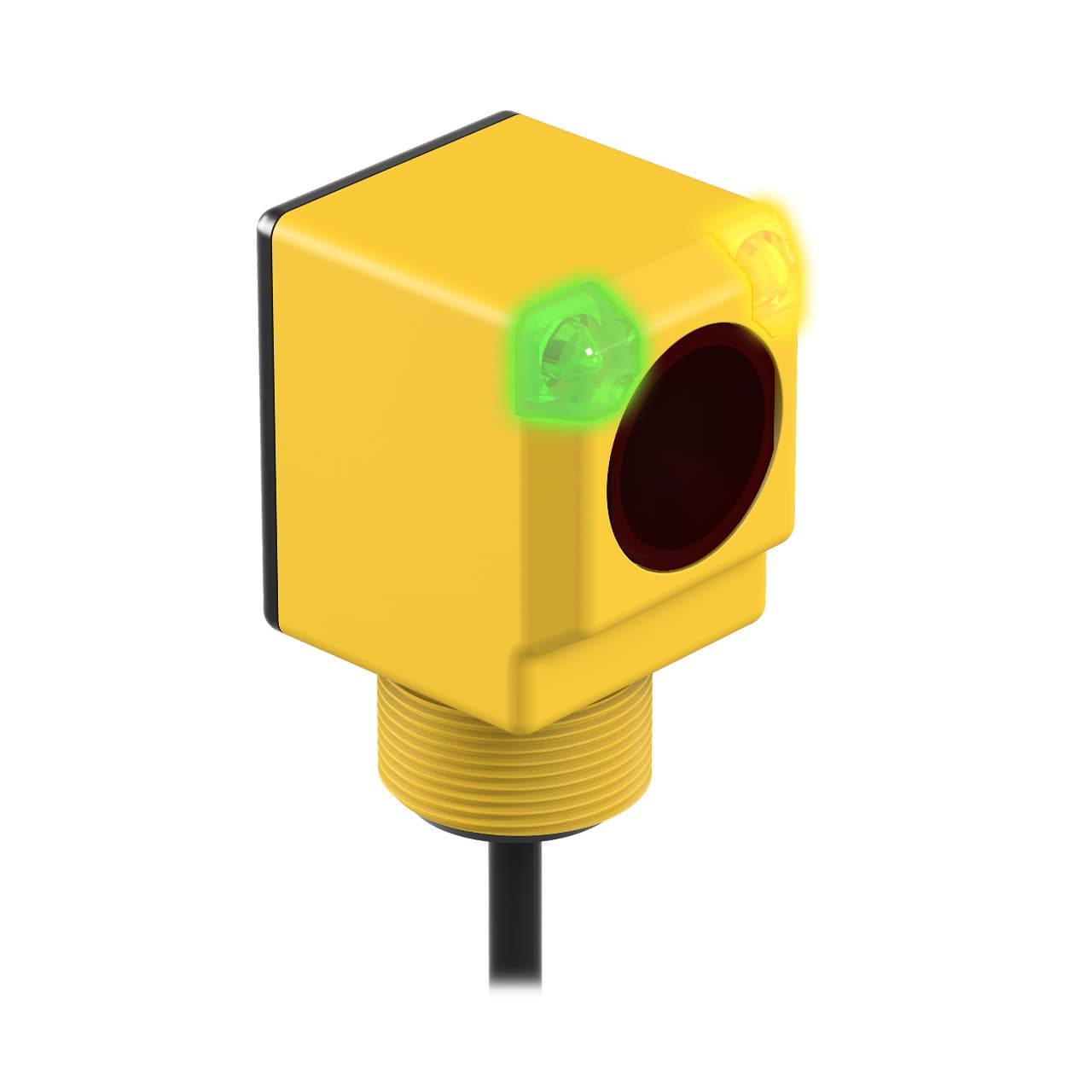

Banner Engineering Q40RW3R W/30 is a photo-electric sensor designed for through-beam system applications, featuring a receiver alone configuration. It is equipped with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q40 AC series and comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, facilitating easy integration into various systems. It requires a supply voltage of 20Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. The Q40RW3R W/30 offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in harsh environments. Its rectangular, thermoplastic housing is designed to withstand demanding conditions, and it can detect objects up to 60m away using infrared light with a wavelength of 950 nm. This sensor operates in Dark-ON mode and features a single digital output (Solid-state AC output; SPST contact type) with a response time of 16ms for turning on and 8ms for turning off.

Product Details

  • Sensing Mode (Detailed)
    Receiver
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Water Detection
    No
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Thermoplastic
  • Operation
    Dark Operate
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Max Sensing Distance (mm)
    60000
  • Connection
    Cable
  • Number of Pins
    3
  • Feature: Ecolab Certified
    Yes
  • Housing Style
    Rectangular
  • Output response time (ms)
    16 ON/8 OFF
  • NEMA Rating
    NEMA 6P
  • Feature: Encapsulated
    Yes
  • Sensing Mode (General)
    Opposed
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Polycarbonate
  • Feature: Audible
    No
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    No QD
  • Repeatability (µs)
    2000
  • Opposed Mode Emitter/Receiver
    Receiver
  • DeviceNet
    No
  • Input/Output
    Solid-State AC Switch
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    30
  • IO Link
    No
  • Cable Length (m)
    9
  • Power Supply/Supply Voltage
    20-250 V ac
  • Delay at Power-up (ms)
    100
  • Indicator
    LEDs
  • Power
    AC
  • Outputs
    Solid-State AC Switch
  • Max Op. Temp. (°C)
    70
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Hazardous Area
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
