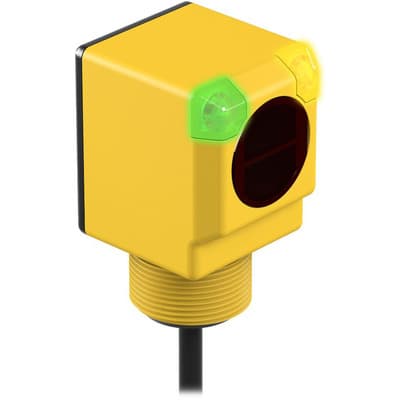

Q40SN6FF200 Banner Proximity Sensors
Part#:Q40SN6FF200
Alt. Part#:32363
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM Q40 Series: Fixed Field; Range: 200 mm; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 244.486088 g
- Country Of Origin US
- Product series / family name EZ-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 32363
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 880 nm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Sub-range name Q40 DC series
- Light Color Infrared (IR)
- Thread size M30
- Response time 3ms / 0.003 s
- Ambient air temperature for operation -40...+70 °C
- Sensing distance 200mm
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cULus cCSAus CE
- Primary brand Banner Engineering
- Design background suppression system
- Shape Rectangular
- Digital outputs 1 x digital output (NPN transistor)
- Material thermoplastic housing
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs NPN
- Repeatability (µs) 750
- Special Feature: Water Detection No
- Feature: Ecolab Certified Yes
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Indicator LEDs
- Feature: Encapsulated Yes
- Cable Length (m) 2
- Quick Disconnect Type No QD
- NEMA Rating NEMA 6P
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Sensing Beam Infrared LED
- Output response time (ms) 3
- Adjustments N/A
- IO Link No
- Power DC
- Connection Cable
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 200
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- Feature: Hazardous Area No
- Housing Style Rectangular
- Max Op. Temp. (°C) 70
- Barrel Diameter (mm) 30
- Feature: Health/ Marginal Signal Output Yes
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Primary Housing Material Thermoplastic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q40SN6FF200 on Powermatic Associates is $155.00. Order now.
About the product
Banner Engineering Q40SN6FF200 is a fixed-field photo-electric sensor designed for precise detection tasks. It features a M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is equipped with a background suppression system and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy integration into various setups. Part of the Q40 DC series, it boasts an IP67 NEMA 6P degree of protection, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular, thermoplastic housing is designed for longevity, and it offers a sensing distance of 200mm. Utilizing infrared light with a wavelength of 880 nm, it supports both Light-ON and Dark-ON operating modes. The Q40SN6FF200 features a single digital output (NPN transistor; complementary NO/NC) and responds swiftly with a response time of 3ms / 0.003 s.
