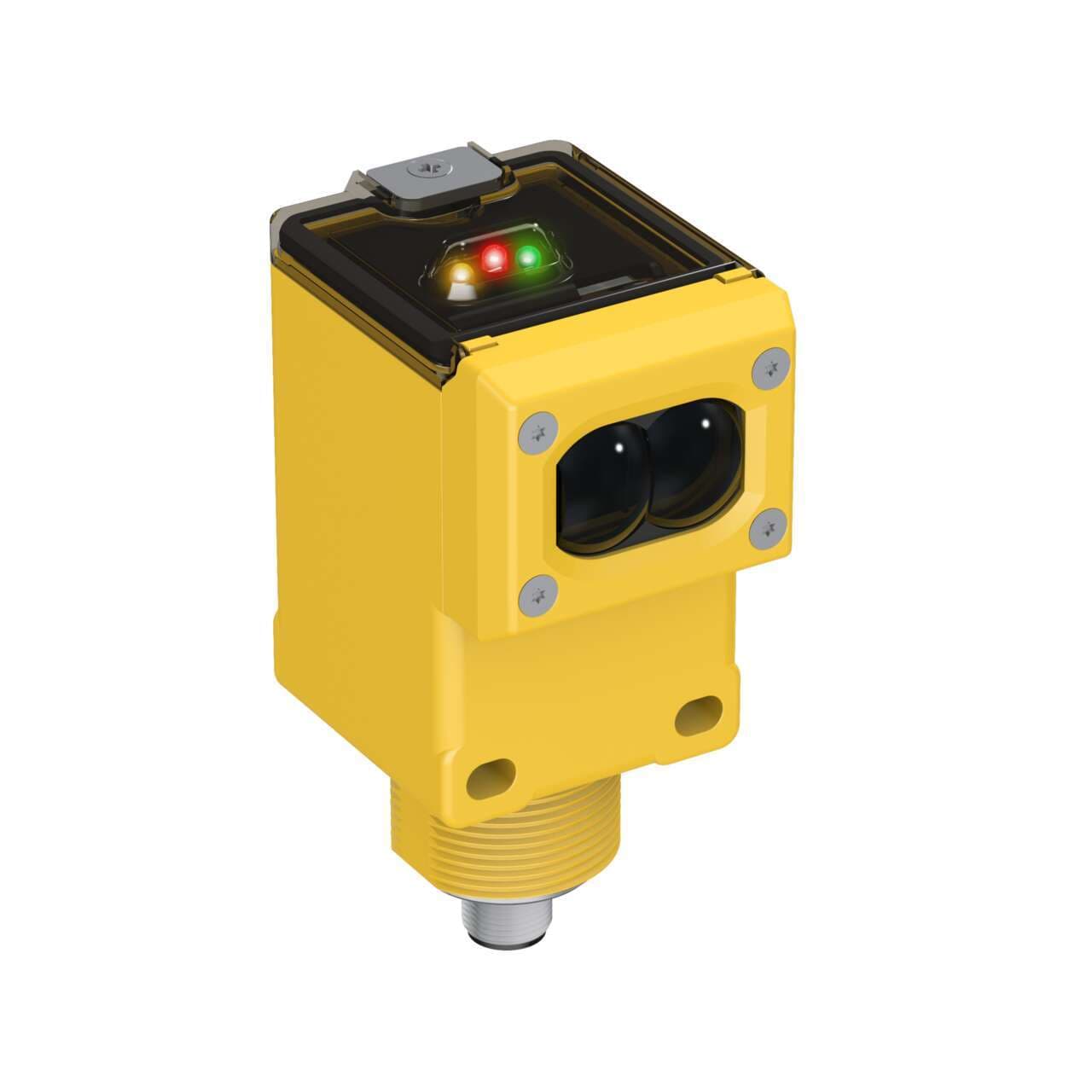

Q452E Banner Proximity Sensors

Name: Q452E
Brand: Banner
Price: 101 USD
Availability: BackOrder

Part#:Q452E

Alt. Part#:35442

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q45 Series: Emitter; Range: 60 m; Input: 90-250 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable

Product Details

Weight
316.607216 g
Country Of Origin
US
DeviceNet
No
IO Link
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
Emitter
Indicator
LEDs
Barrel Diameter (mm)
30
Adjustments
N/A
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6P
IP Rating
IP67
Number of Pins
2
Repeatability (µs)
250
Delay at Power-up (ms)
N/A

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Output response time (ms)

N/A

Operation

N/A

Max Op. Temp. (°C)

Quick Disconnect Type

No QD

Min Op. Temp. (°C)

-40

Power Supply/Supply Voltage

90-250 V ac

Connection

Cable

Primary Housing Material

Thermoplastic

Power

Max Sensing Distance (mm)

60000

Sensing Mode (General)

Opposed

Outputs

N/A

Sensing Mode (Detailed)

Emitter

Housing Style

Rectangular

Sensing Beam

Infrared LED

Cable Length (m)

Primary brand

Banner Engineering

Design

through-beam system / opposed mode

Degree of protection

IP67 NEMA 6P

Functions

Photo-electric emitter green LED (power ON) red LED (signal) amber LED (output state)

Thread size

M30

Material

thermoplastic housing Acrylic lns.

Main function

Sensor (Photo-electric)

Supply voltage (AC)

90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Wavelength

880 nm

Mounting mode

Threaded mount

Sub-range name

Q45VR2

Shape

Rectangular

Light Color

Infrared (IR)

Ambient air temperature for operation

-40...+70 °C

Order code / Manufacturer SKU

35442

Product series / family name

Q series

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Compliant with standard(s)

CCC cCSAus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q452E on Powermatic Associates is $101.00. Order now.

About the product

Banner Engineering Q452E is a photo-electric sensor designed for through-beam system applications, functioning as an emitter within the Q45VR2 series. This sensor features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. It is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads, facilitating straightforward connection. The Q452E operates on a supply voltage of 90Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It boasts a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. The sensor's housing is made from thermoplastic with an acrylic lens, and it is designed in a rectangular shape. With a sensing distance of up to 60m, it utilizes infrared light with a wavelength of 880 nm for detection.
