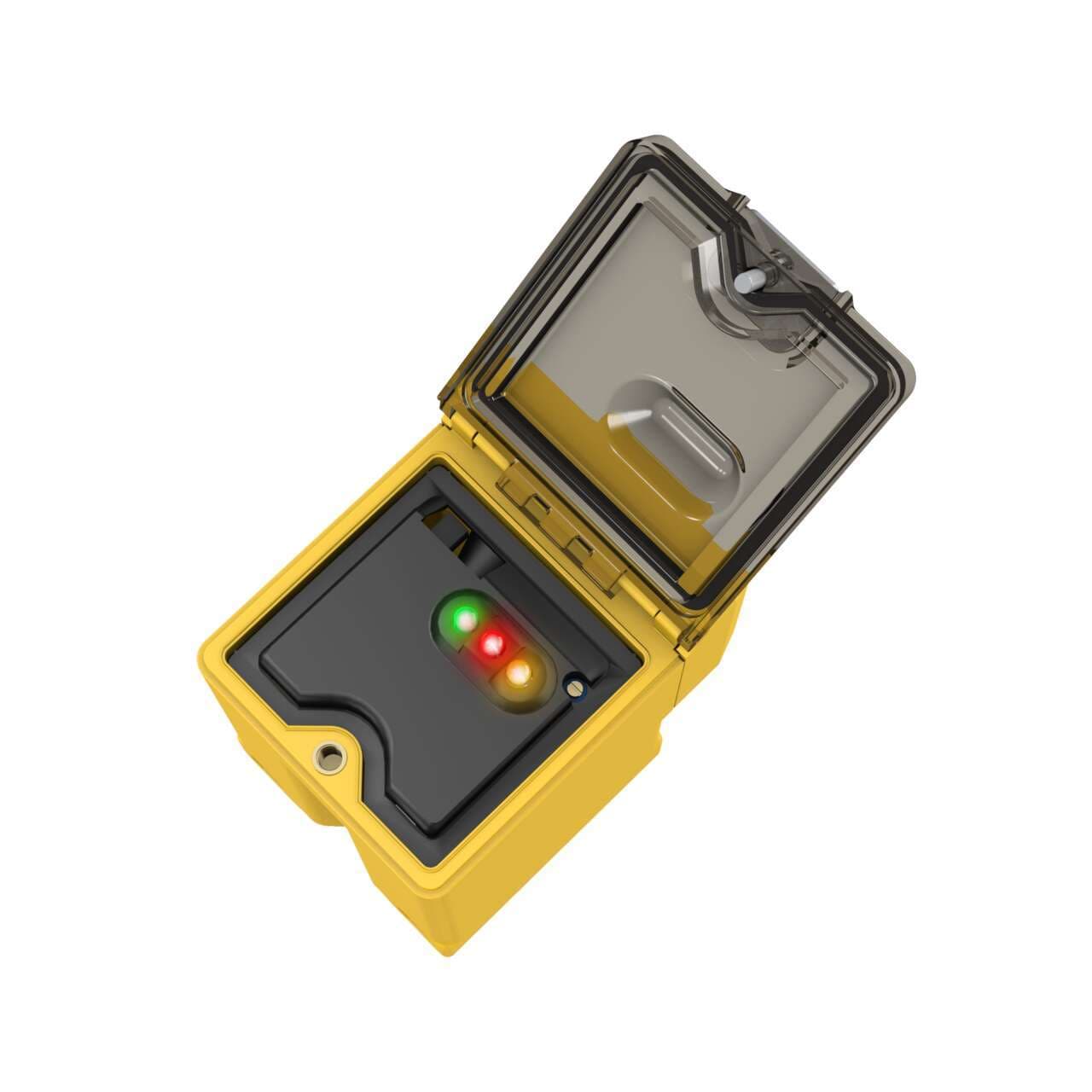

Q452EQ1 Banner Proximity Sensors
Part#:Q452EQ1
Alt. Part#:40222
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Emitter; Range: 60 m; Input: 90-250 V ac; Output: Not Applicable; 4-pin Micro Integral QD
Product Details
- Weight 244.93968 g
- Country Of Origin US
- Sub-range name Q45VR2
- Primary brand Banner Engineering
- Thread size M30
- Compliant with standard(s) CCC cCSAus CE
- Supply voltage (AC) 90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Rectangular
- Degree of protection IP67 NEMA 6P
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Product series / family name Q series
- Wavelength 880 nm
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Ambient air temperature for operation -40...+70 °C
- Functions Photo-electric emitter green LED (power ON) red LED (signal) amber LED (output state)
- Light Color Infrared (IR)
- Order code / Manufacturer SKU 40222
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Emitter
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Sensing Beam Infrared LED
- Repeatability (µs) 250
- Barrel Diameter (mm) 30
- Power AC
- Operation N/A
- Adjustments N/A
- Delay at Power-up (ms) N/A
- DeviceNet No
- Connection Integral QD
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Emitter
- Quick Disconnect Type 1/2 in. (Micro)
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular
- Output response time (ms) N/A
- Lens Material Acrylic
- Feature: Encapsulated No
- Max Sensing Distance (mm) 60000
- IP Rating IP67
- Special Feature: Intrinsically Safe No
- IO Link No
- Outputs N/A
- Special Feature: Remote Teach No
- Number of Pins 4
- Feature: Audible No
- Power Supply/Supply Voltage 90-250 V ac
- Min Op. Temp. (°C) -40
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q452EQ1 on Powermatic Associates is $101.00. Order now.
About the product
Banner Engineering Q452EQ1 is a photo-electric sensor designed for through-beam system applications, functioning as an emitter alone within the Q45VR2 series. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is equipped with a 4-pin 1/2" micro connector for connectivity and requires a supply voltage of 90Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It boasts a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. The Q452EQ1 has a rectangular shape with a thermoplastic housing and an acrylic lens, designed to achieve a sensing distance of up to 60 meters. It utilizes infrared light with a wavelength of 880 nm for detection purposes.
