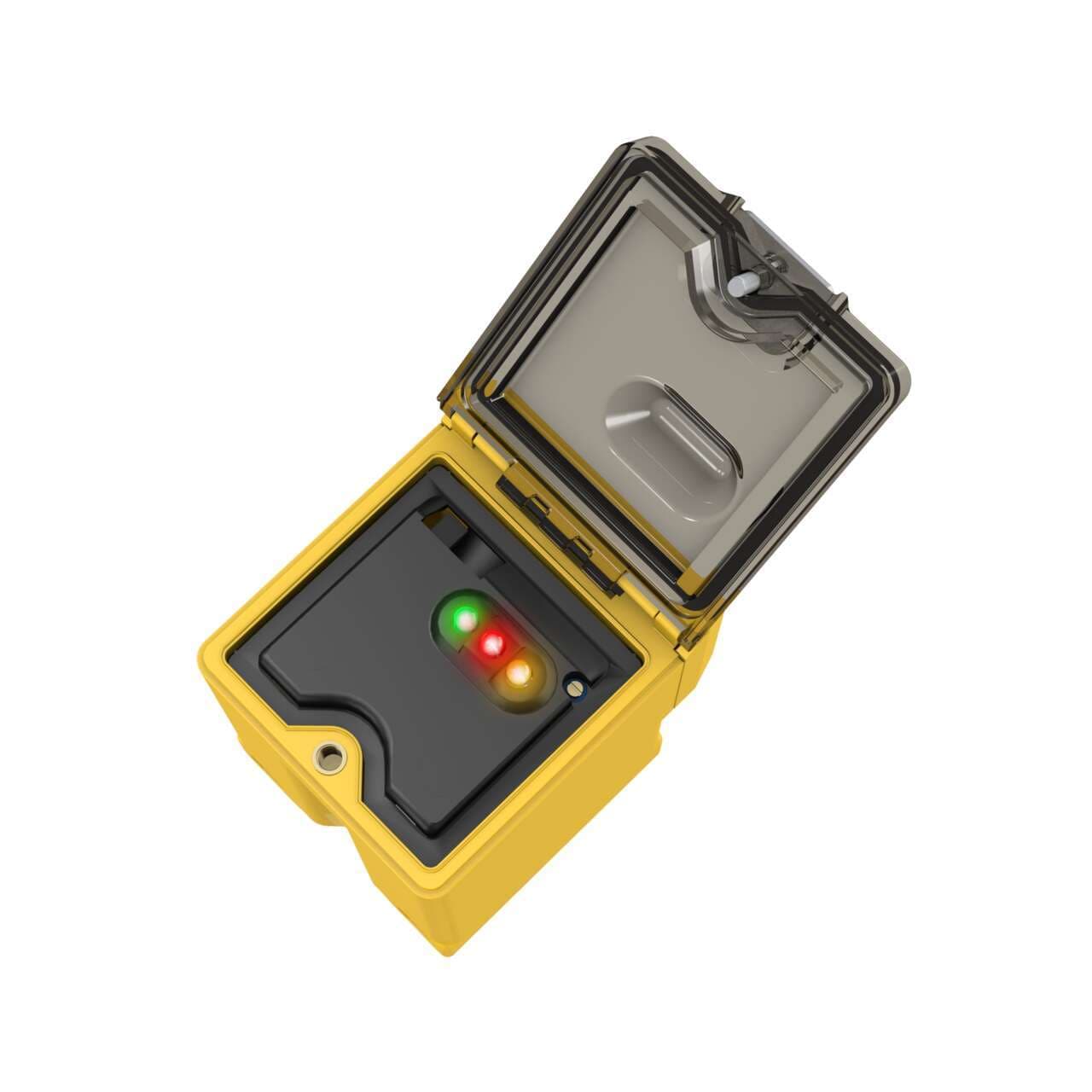

Q456E Banner Proximity Sensors

Product Details

• Weight
  314.792848 g
• Country Of Origin
  US
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric emitter green LED (power ON) red LED (signal) amber LED (output state)
• Shape
  Rectangular
• Material
  thermoplastic housing Acrylic lns.
• Product series / family name
  Q series
• Light Color
  Infrared (IR)
• Mounting mode
  Threaded mount
• Order code / Manufacturer SKU
  36563
• Primary brand
  Banner Engineering
• Wavelength
  880 nm
• Compliant with standard(s)
  cCSAus CE
• Sub-range name
  Q45BB6
• Thread size
  M30
• Ambient air temperature for operation
  -40...+70 °C
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Design
  through-beam system / opposed mode
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Degree of protection
  IP67 NEMA 6P
Outputs
N/A
Special Feature: Remote Teach
No
IP Rating
IP67
Power
DC
Operation
N/A
Delay at Power-up (ms)
N/A
Feature: Hazardous Area
No
Primary Housing Material
Thermoplastic
Connection
Cable
Repeatability (µs)
250
Sensing Mode (Detailed)
Emitter
Quick Disconnect Type
No QD
Max Op. Relative Humidity [%]
90% @ 50°C
Max Sensing Distance (mm)
60000
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6P
Feature: Audible
No
Sensing Beam
Infrared LED
Housing Style
Rectangular
Special Feature: Water Detection
No
Barrel Diameter (mm)
30
Sensing Mode (General)
Opposed
Min Op. Temp. (°C)
-40
Number of Pins
2
Opposed Mode Emitter/Receiver
Emitter
Cable Length (m)
2
Output response time (ms)
N/A
Lens Material
Acrylic
Feature: Chemical Resistant
No
Power Supply/Supply Voltage
10-30 V dc
Max Op. Temp. (°C)
70
Adjustments
N/A
IO Link
No
DeviceNet
No
Indicator
LEDs
Feature: Timing (Hold/Delay)
No
Feature: Encapsulated
No
