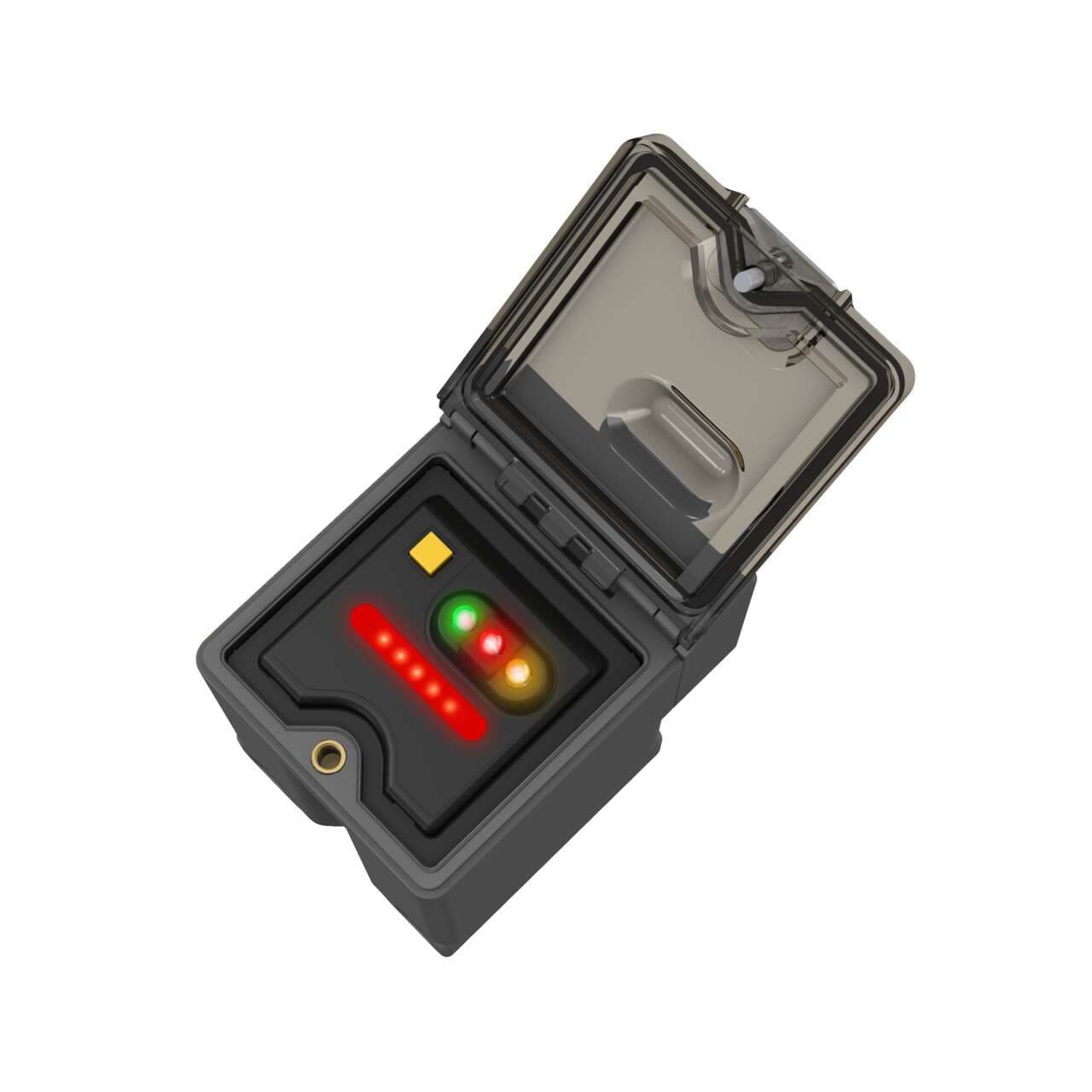

Q45UBB63DAQ6 Banner Ultrasonic Sensors

Product Details

• Weight
  272.1552 g
• Country Of Origin
  US
• Sub-range name
  Q45U series
• Thread size
  M30
• Mounting mode
  Threaded mount
• Compliant with standard(s)
  cCSAus CE
• Primary brand
  Banner Engineering
• Functions
  Versatile ultrasonic distance sensor green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Shape
  Rectangular
• Ambient air temperature for operation
  -25...+70 °C
• Product series / family name
  U-GAGE series
• Sensing distance
  10cm...1.4m
• Material
  thermoplastic housing
• Emission frequency
  239kHz
• Design
  time-of-flight system
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Protection functions
  Overload Short-circuit
• Main function
  Sensor (Distance)
• Supply voltage (DC)
  12Vdc-24Vdc
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
44130
Sensing Mode (Detailed)
Time of Flight
Max Sensing Distance (mm)
1400
Max Discrete (Switched) Output (mA)
150
Minimum Response Time (ms)
20
Feature: Clear Object Detection
Yes
Profibus
No
Housing Style
Rectangular
Minimum Sensing Distance (mm)
100
Number of Pins
5
Discrete Output Hysteresis (mm)
5
Feature: Remote Teach
Yes
RS-422
No
Sensing Mode (General)
Proximity
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
NEMA Rating
NEMA 6P
IO Link
No
SSI
No
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Minimum Window Size (mm)
10
Feature: Timing (Hold/Delay)
No
Max Measurement Range
>1 m - <=20 m
Power Supply
12-24 V dc
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Warm-up Time (minutes)
15
Max Off-state Leakage Current (µA)
25
Application: Ultrasonic
Yes
Power
DC
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
Output Saturation Voltage NPN Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Min Operating Temperature (°C)
-25
Ultrasonic Frequency (kHz)
230
RS-485
No
Sensing Beam
Ultrasonic
Connection
Integral QD
Adjustments
Teach Button; DIP Switches
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Power/Current Consumption (exclusive of load)
100 mA
Feature: Chemical Resistant
No
Device Type
Sensor
Quick Disconnect Type
M12 (Euro)
Output Saturation Voltage PNP Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Max Operating Temperature (°C)
70
PROFINET
No
1-wire Serial Interface
No
PC Configurable
No
Input/Output
Discrete
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Op. Relative Humidity Non-Condensing (%)
100
RS-232
No
Wireless
No
Primary Housing Material
PBT
Indicator
LED(s)
IP Rating
IP67
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Common Ethernet Protocol
No
