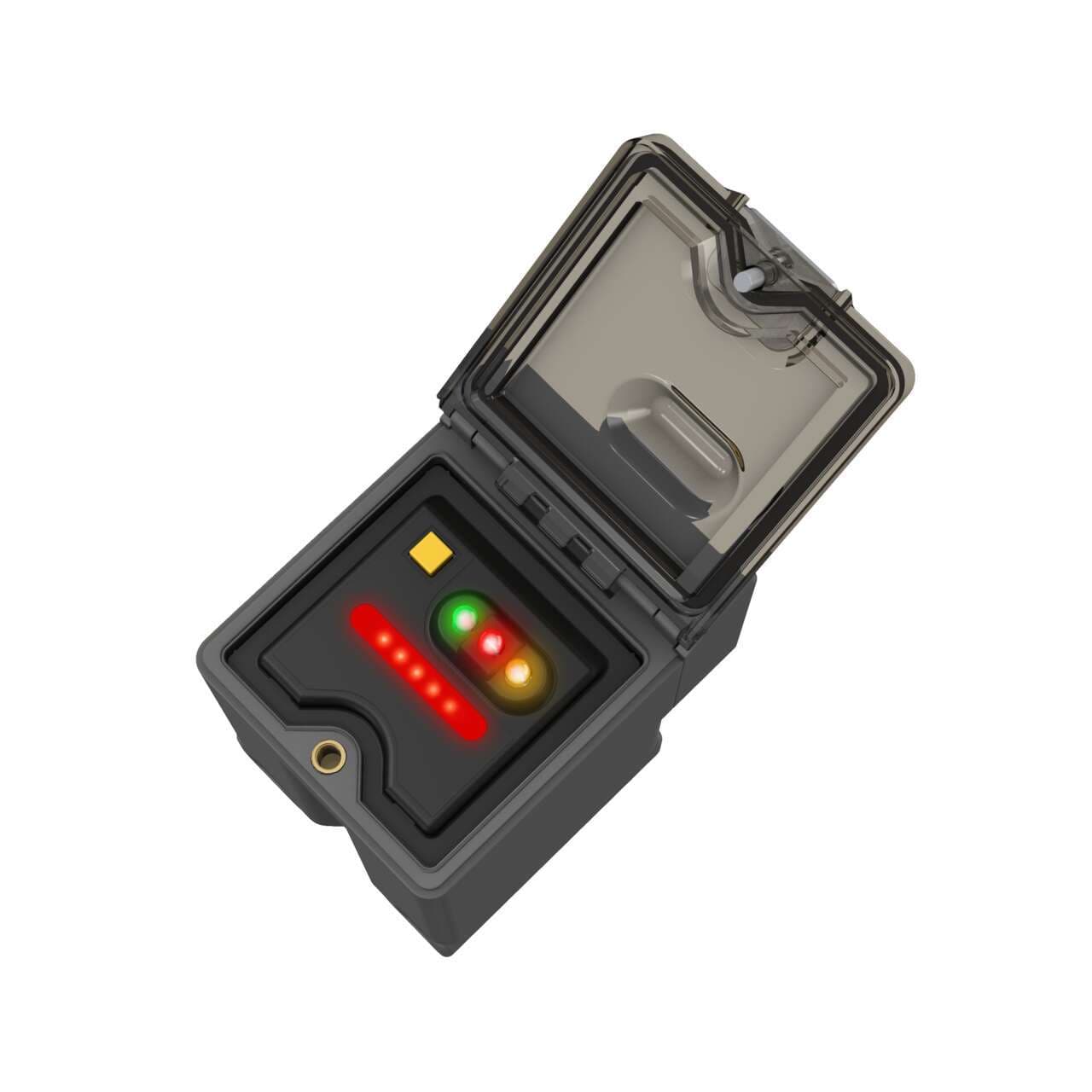

Q45ULIU64ACRQ6 Banner Ultrasonic Sensors

Product Details

• Weight
  272.1552 g
• Country Of Origin
  US
• Main function
  Sensor (Distance)
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Compliant with standard(s)
  cCSAus CE
• Sensing distance
  10cm...1.4m
• Material
  thermoplastic housing
• Primary brand
  Banner Engineering
• Design
  time-of-flight system
• Thread size
  M30
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Order code / Manufacturer SKU
  47554
• Sub-range name
  Q45U series
• Functions
  Versatile ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
• Analog outputs
  1 x analog output (0-10Vdc / 4-20mA)
• Protection functions
  Overload Short-circuit
• Product series / family name
  U-GAGE series
• Supply voltage (DC)
  15Vdc-24Vdc
• Degree of protection
  IP67 NEMA 6P
Ambient air temperature for operation
-25...+70 °C
Emission frequency
239kHz
Primary Housing Material
PBT
Adjustments
Teach Button; DIP Switches
Min Operating Temperature (°C)
-25
Feature: Chemical Resistant
No
Sensing Beam
Ultrasonic
Indicator
LED(s)
Minimum Sensing Distance (mm)
100
Analog Current Output Rating
1 to 500 Ω impedance
Warm-up Time (minutes)
15
Ultrasonic Frequency (kHz)
230
IO Link
No
PC Configurable
No
Connection
Integral QD
Temperature Effect (mm/°C)
0.05% of sensing distance/°C
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Minimum Window Size (mm)
10
PROFINET
No
Power
DC
Analog Output Configuration
0-10 V dc or 4-20 mA
Number of Pins
5
Analog Voltage Output Rating
10mA Max
Feature: Remote Teach
Yes
RS-232
No
Device Type
Sensor
Power Supply
15-24 V dc
Max Operating Temperature (°C)
70
Feature: Clear Object Detection
Yes
SSI
No
Max Measurement Range
>1 m - <=20 m
Quick Disconnect Type
M12 (Euro)
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Op. Relative Humidity Non-Condensing (%)
100
Application: Ultrasonic
Yes
Profibus
No
Analog Linearity (mm)
1% of full scale
Common Ethernet Protocol
No
Wireless
No
Sensing Mode (Detailed)
Time of Flight
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
NEMA Rating
NEMA 6P
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-485
No
Sensing Mode (General)
Proximity
Input/Output
Analog
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Minimum Response Time (ms)
40
Feature: Timing (Hold/Delay)
No
Housing Style
Rectangular
Max Sensing Distance (mm)
1400
IP Rating
IP67
Power/Current Consumption (exclusive of load)
100 mA
RS-422
No
1-wire Serial Interface
No
