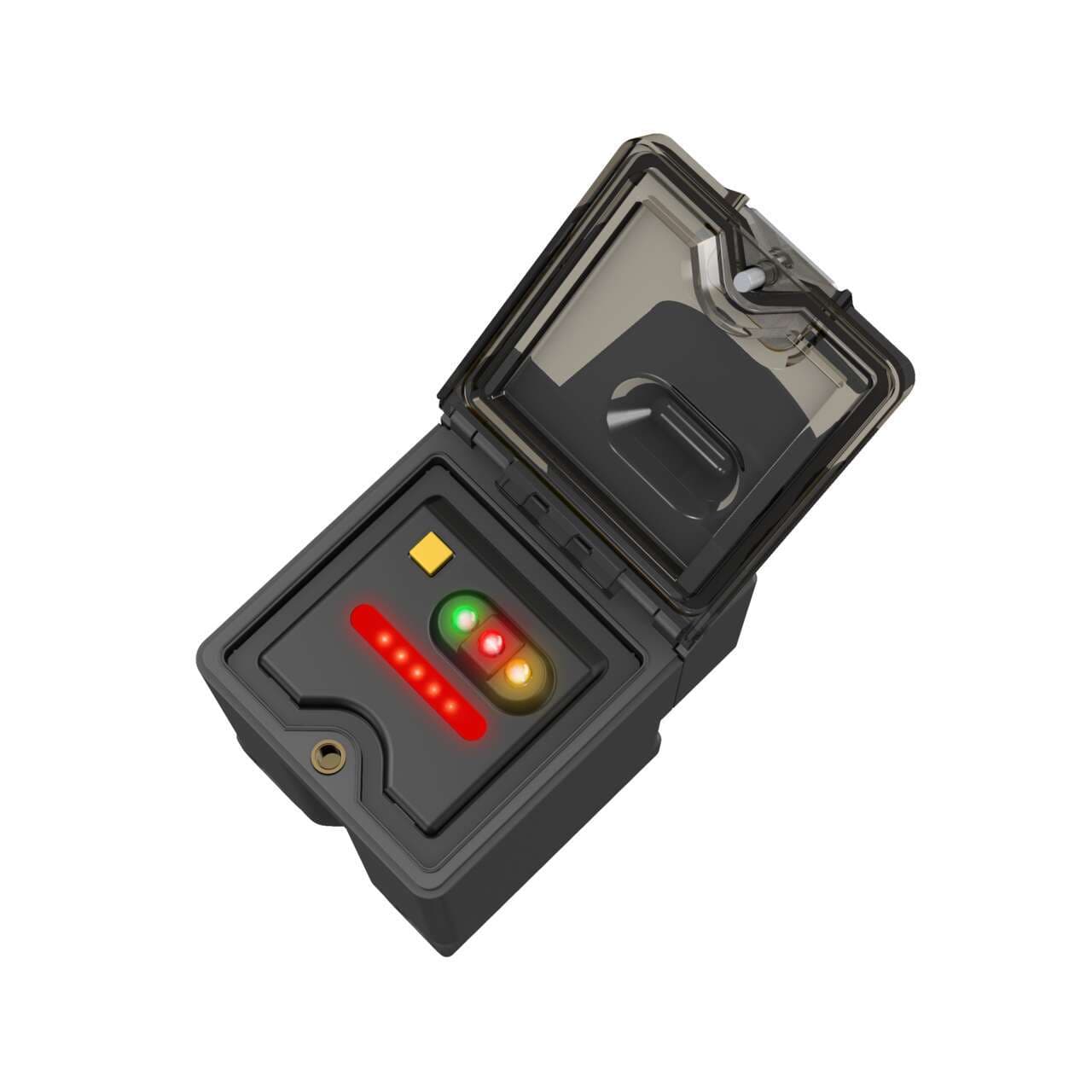

Q45ULIU64BCRQ6 Banner Ultrasonic Sensors

Product Details

• Weight
  299.37072 g
• Country Of Origin
  US
• Product series / family name
  U-GAGE series
• Supply voltage (DC)
  15Vdc-24Vdc
• Thread size
  M30
• Ambient air temperature for operation
  -25...+70 °C
• Protection functions
  Overload Short-circuit
• Primary brand
  Banner Engineering
• Main function
  Sensor (Distance)
• Shape
  Rectangular
• Analog outputs
  1 x analog output (0-10Vdc / 4-20mA)
• Mounting mode
  Threaded mount
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Material
  thermoplastic housing
• Compliant with standard(s)
  cCSAus CE
• Functions
  Versatile ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
• Degree of protection
  IP67 NEMA 6P
• Order code / Manufacturer SKU
  47558
• Sub-range name
  Q45U series
• Design
  time-of-flight system
Sensing distance
25cm...3m
Emission frequency
128kHz
Sensing Mode (Detailed)
Time of Flight
Connection
Integral QD
Analog Voltage Output Rating
10mA Max
Minimum Window Size (mm)
25
IO Link
No
Sensing Mode (General)
Proximity
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Analog Linearity (mm)
1% of full scale
Feature: Chemical Resistant
No
Sensing Beam
Ultrasonic
Input/Output
Analog
Adjustments
Teach Button; DIP Switches
Max Operating Temperature (°C)
70
Feature: Remote Teach
Yes
RS-422
No
Max Measurement Range
>1 m - <=20 m
Indicator
LED(s)
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Op. Relative Humidity Non-Condensing (%)
100
Application: Ultrasonic
Yes
Power
DC
Analog Output Configuration
0-10 V dc or 4-20 mA
Number of Pins
5
Minimum Response Time (ms)
80
Common Ethernet Protocol
No
RS-485
No
Device Type
Sensor
Power Supply
15-24 V dc
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Warm-up Time (minutes)
15
PROFINET
No
Max Sensing Distance (mm)
3000
IP Rating
IP67
Power/Current Consumption (exclusive of load)
100 mA
RS-232
No
Housing Style
Rectangular
Quick Disconnect Type
M12 (Euro)
NEMA Rating
NEMA 6P
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
1-wire Serial Interface
No
PC Configurable
No
Minimum Sensing Distance (mm)
250
Analog Current Output Rating
1 to 500 Ω impedance
Ultrasonic Frequency (kHz)
128
Feature: Timing (Hold/Delay)
No
Primary Housing Material
PBT
Temperature Effect (mm/°C)
0.05% of sensing distance/°C
Min Operating Temperature (°C)
-25
Feature: Clear Object Detection
Yes
SSI
No
Profibus
No
Wireless
No
